Fuel System Component Location-Midship Fuel Tank

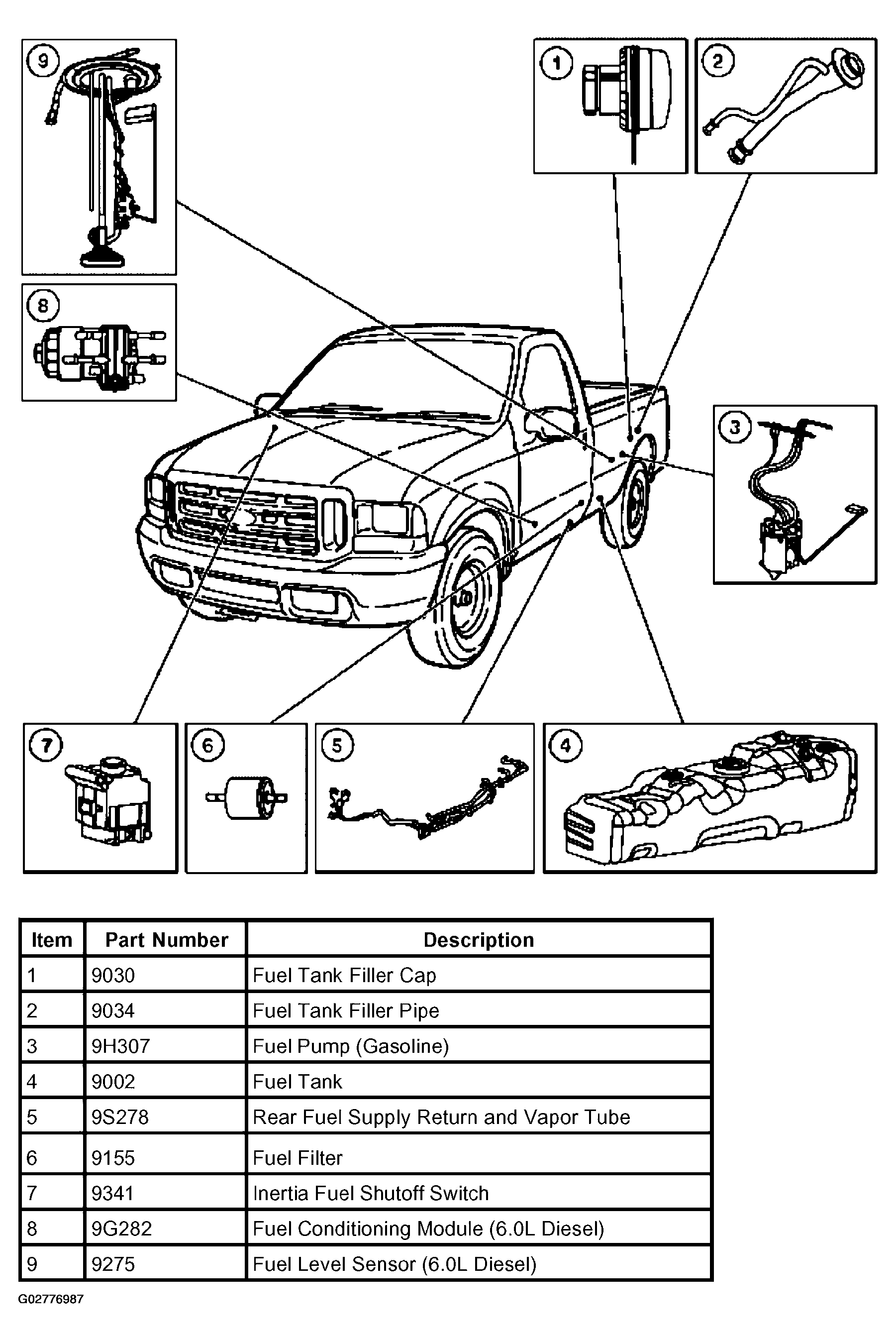

Fig 1: Identifying Fuel System Component Location-Midship Fuel Tank

G02776987

Courtesy of FORD MOTOR CO.
