Identifying Connectors (C948 & C949)

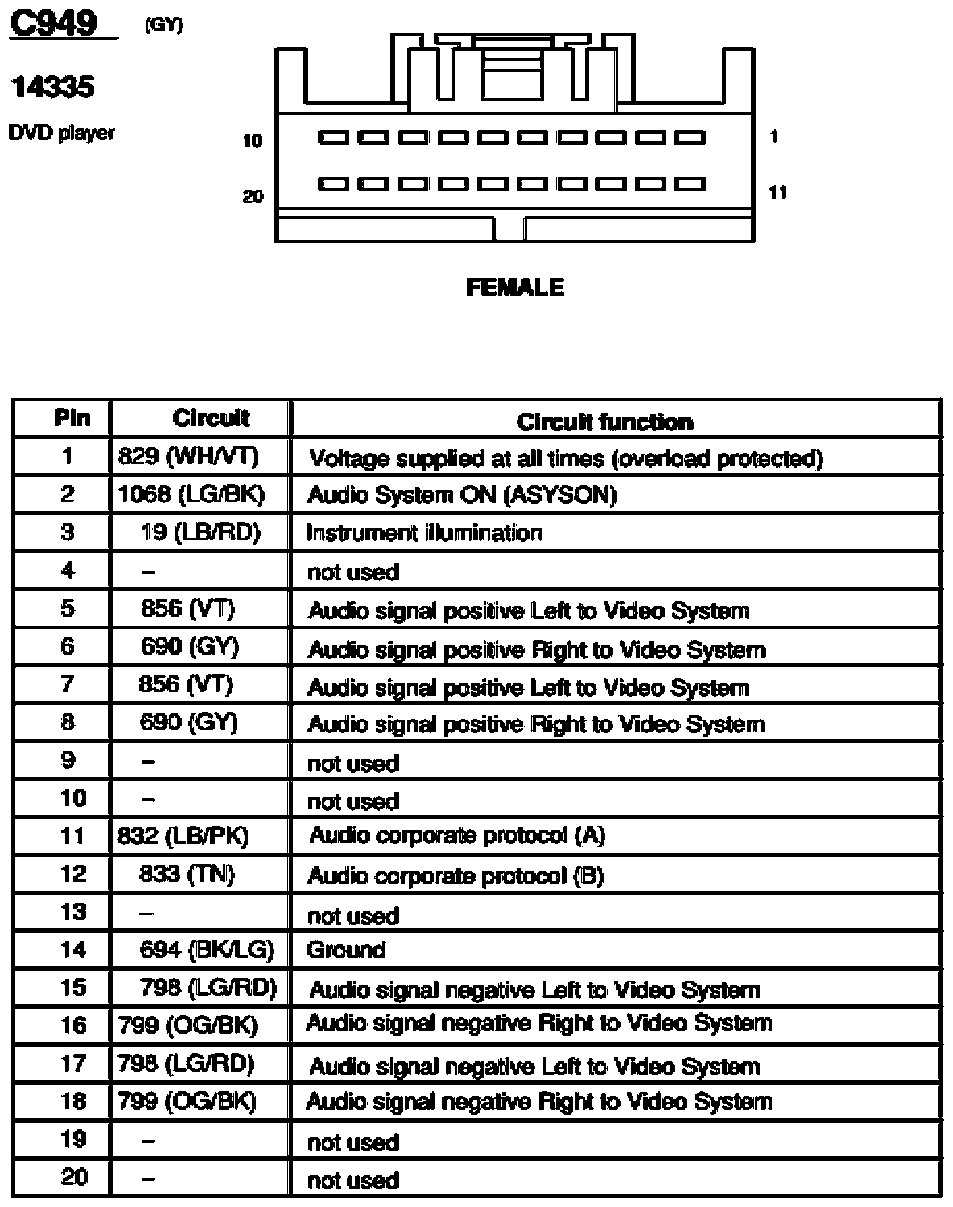

Fig 1: DVD Player Connector End View (C949)

G07836683

Courtesy of FORD MOTOR CO.

Fig 2: Power Vent Window Motor, Right Connector End View (C948)

G07836684

Courtesy of FORD MOTOR CO.
