Excursion 6.8 S, RWD
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Connector End Views - Excursion & F250-F550 Super Duty
>>
Connector Views
>>
Identifying Connectors (C341a & C341b)
Identifying Connectors (C341a & C341b)

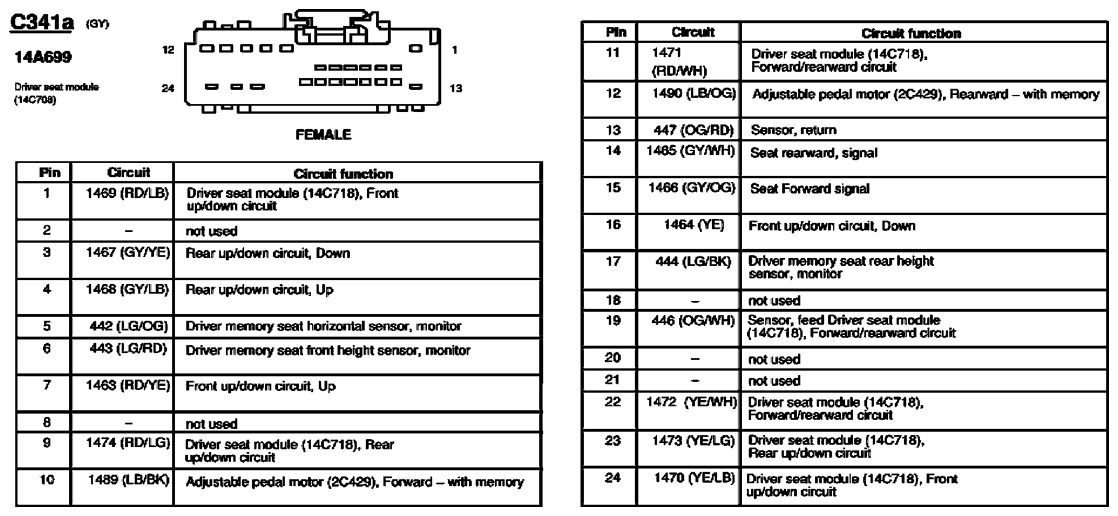

Fig 1: Driver Seat Module Connector End View (C341a)
Courtesy of FORD MOTOR CO.
Fig 2: Driver Seat Module Connector End View (C341b)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
