Identifying Connectors (C250 & C251)

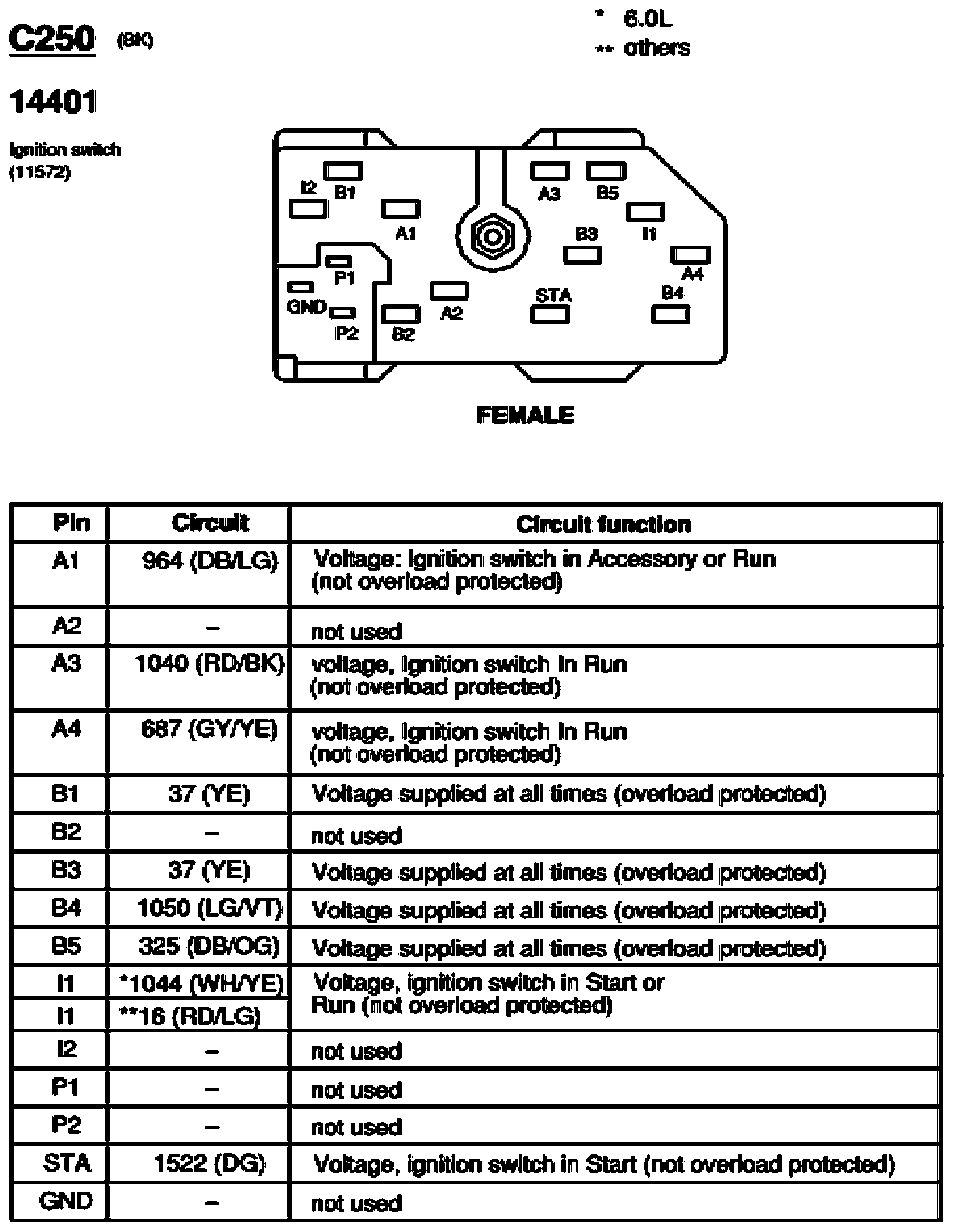

Fig 1: Ignition Switch Connector End View (C250)

G07836530

Courtesy of FORD MOTOR CO.

Fig 2: Data Link Connector (DLC) Connector End View (C251)

G07836531

Courtesy of FORD MOTOR CO.
