Pinpoint Test A: The Compass Is Inaccurate
Pinpoint Test A: The Compass Is Inaccurate

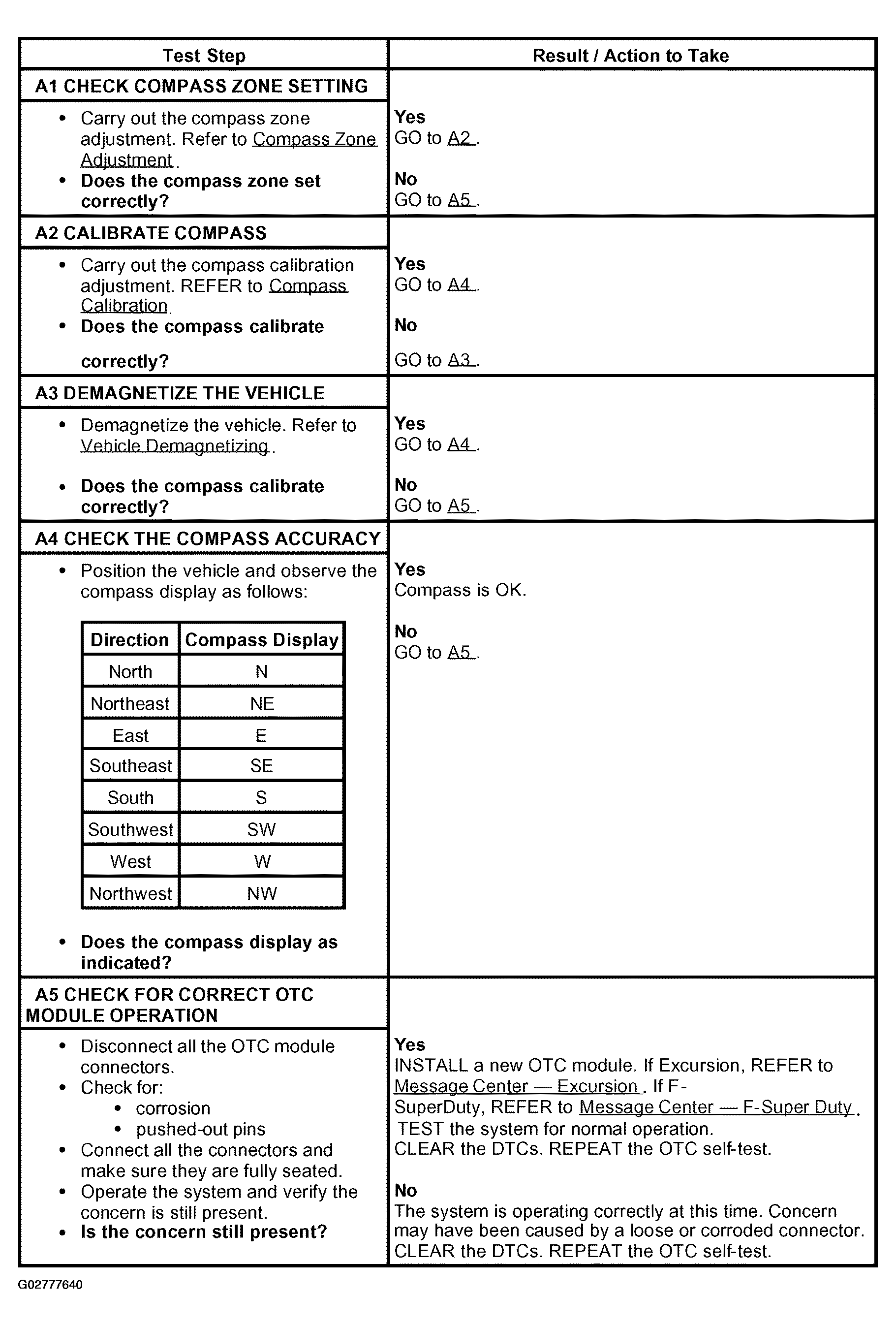

Fig 1: Pinpoint Test A: Compass Is Inaccurate (A1-A5)
Courtesy of FORD MOTOR CO.
