Identifying Connectors (C270j & C270k)

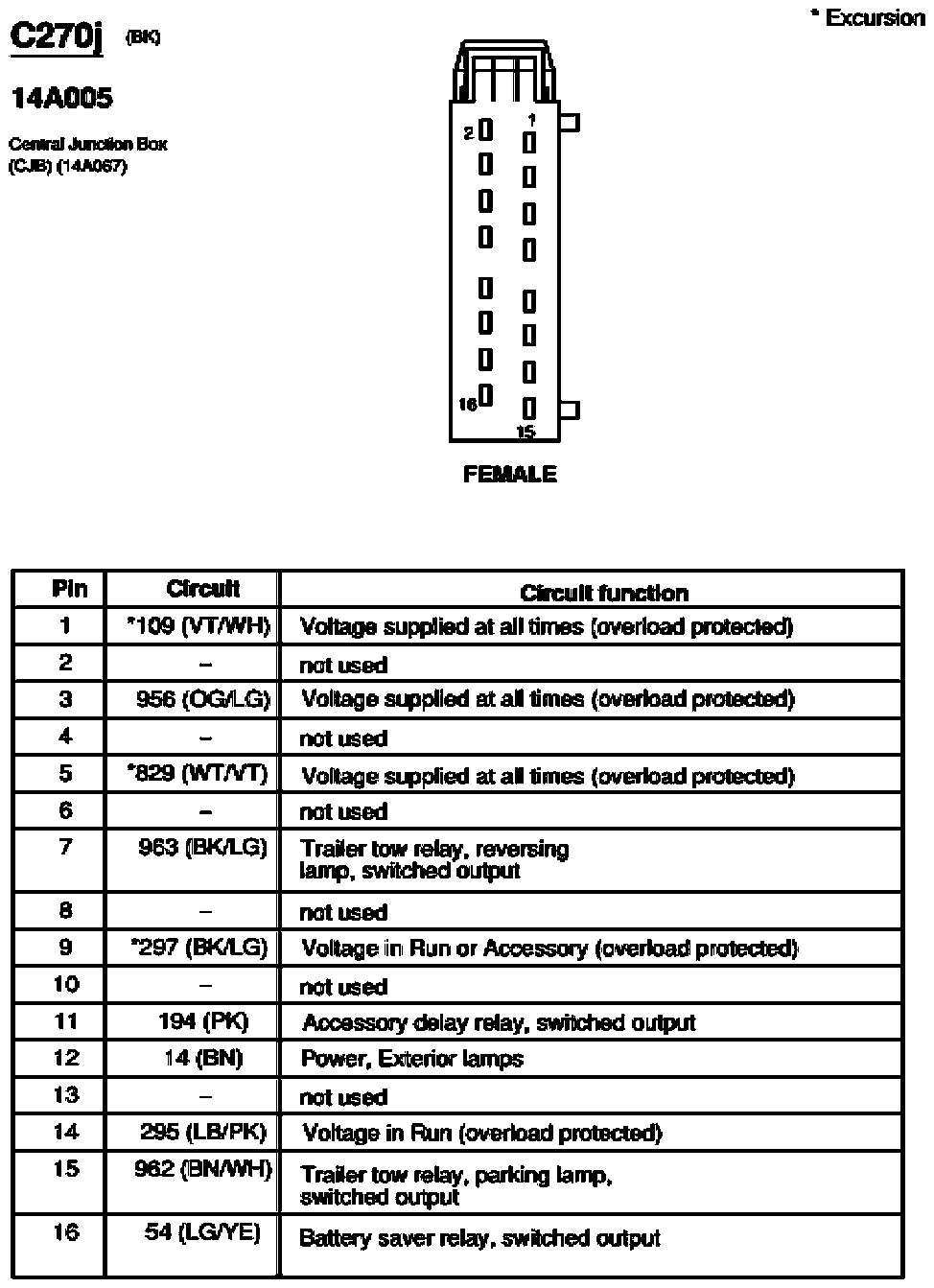

Fig 1: Central Junction Box (CJB) Connector End View (C270j)
G07836544Courtesy of FORD MOTOR CO.
Fig 2: Central Junction Box (CJB) Connector End View (C270k)
G07836545Courtesy of FORD MOTOR CO.
