Identifying Connectors (C270g & C270h)

Fig 1: Central Junction Box (CJB) Connector End View (C270g)
G07836542Courtesy of FORD MOTOR CO.

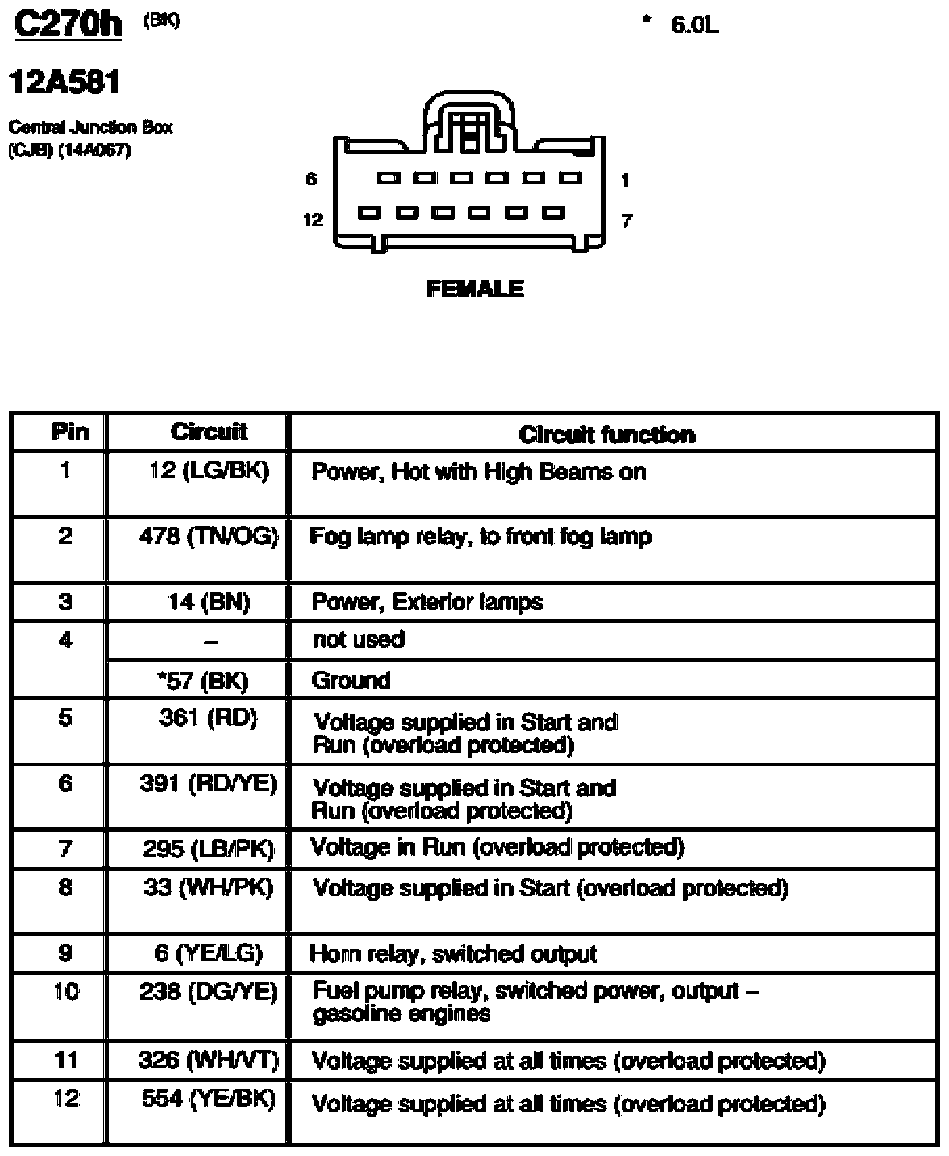

Fig 2: Central Junction Box (CJB) Connector End View (C270h)
G07836543Courtesy of FORD MOTOR CO.
