Identifying Connectors (C211, C213 & C213)

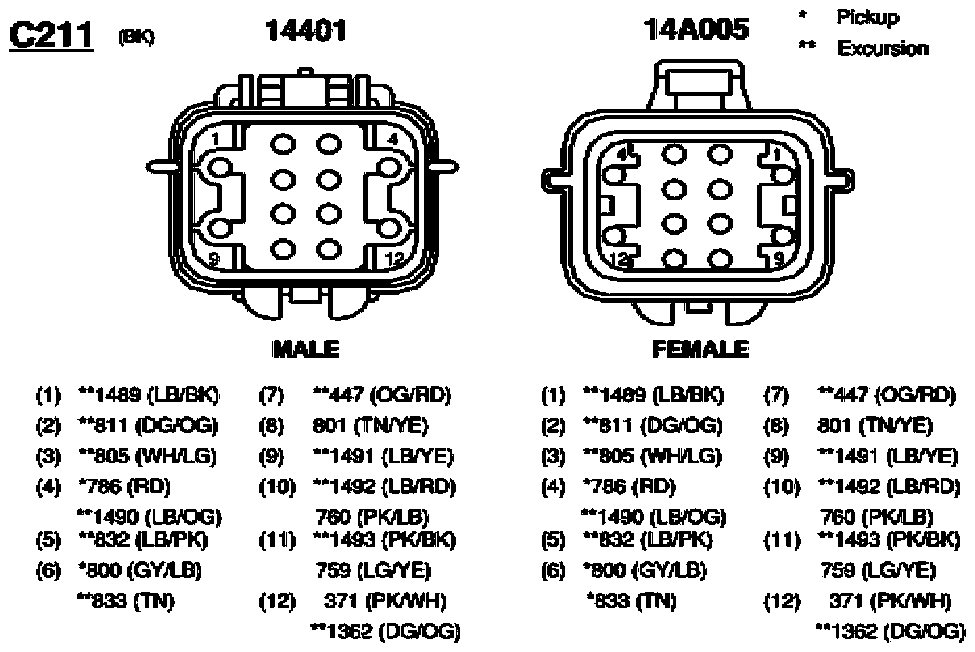

Fig 1: Inline Connector End View (C211)
G07836518Courtesy of FORD MOTOR CO.
Fig 2: Inline Connector End View (C213)
G07836519Courtesy of FORD MOTOR CO.
Fig 3: Inline Connector End View (C213)
G07836520Courtesy of FORD MOTOR CO.
