Identifying Connectors (C135, C137 & C140)

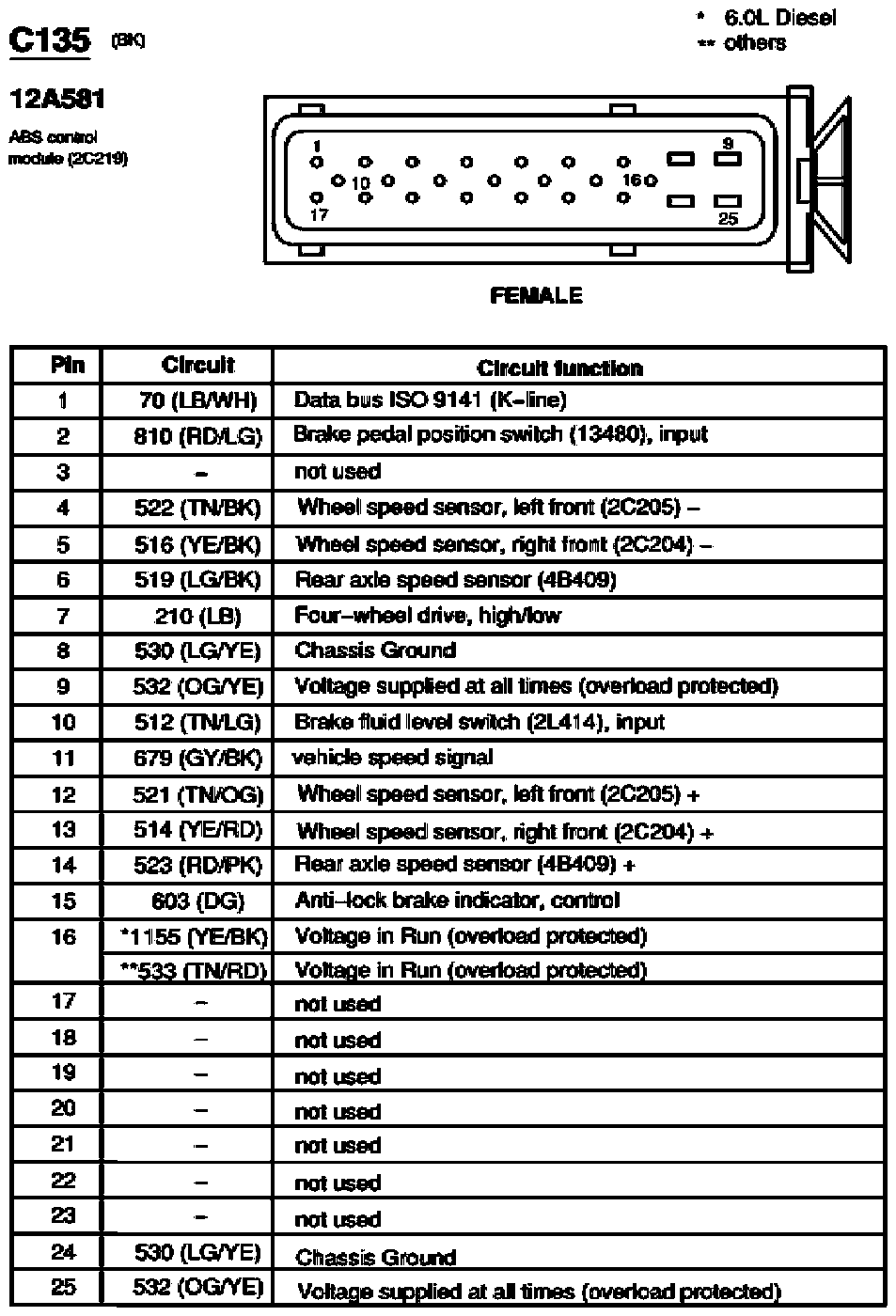

Fig 1: ABS Control Module Connector End View (C135)

Courtesy of FORD MOTOR CO.

Fig 2: Windshield Washer Pump Motor Connector End View (C137)

Courtesy of FORD MOTOR CO.

Fig 3: Inline Connector End View (C140)

Courtesy of FORD MOTOR CO.
