Front Wheel Speed Sensor Ring - 4X4: Removal

  1. Remove the front disc brake rotor. Refer to FRONT BRAKE ROTOR .
    CAUTION: Discard the front wheel speed sensor indicator.
  2. Using the special tool, remove the front wheel speed sensor indicator.

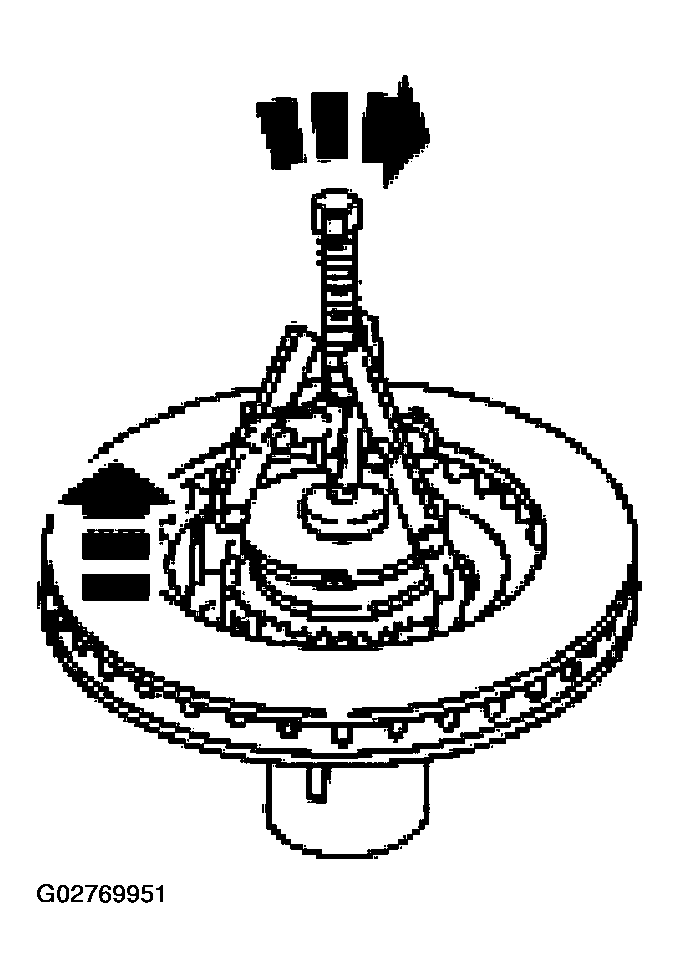

    Fig 1: Removing Front Wheel Speed Sensor Indicator
    G02769951Courtesy of FORD MOTOR CO.
