Roof Opening Panel Motor: Removal

NOTE: The roof opening panel must be initialized when repairs are carried out on any part of the roof opening panel, including: whenever the roof opening panel has been removed from the roof opening panel assembly, a new roof opening panel motor/module has been installed, or when a new roof opening panel assembly has been installed. Refer to ROOF OPENING PANEL MOTOR INITIALIZATION .
  1. Remove the headliner. Refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Disconnect the roof opening panel motor electrical connector and cut the tie strap.

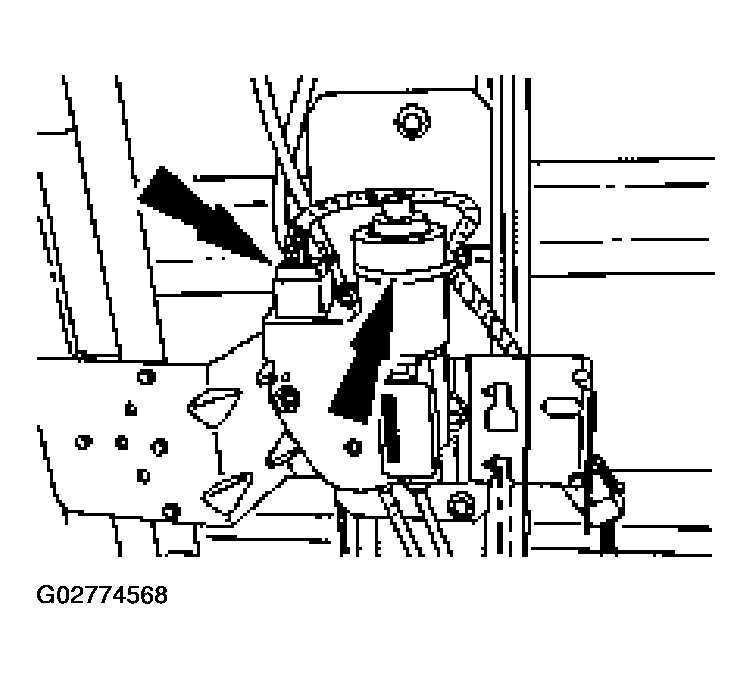

    Fig 1: Disconnecting Roof Opening Panel Motor Electrical Connector And Cut Tie Strap
    G02774568Courtesy of FORD MOTOR CO.
  3. Remove the roof opening panel motor.
    • Remove the three bolts.
      Fig 2: Removing Roof Opening Panel Motor
      G02774569Courtesy of FORD MOTOR CO.
