Roof Opening Panel Motor: Installation

  1. Connect the roof opening panel motor electrical connector. Install a new tie wrap and trim off excess.

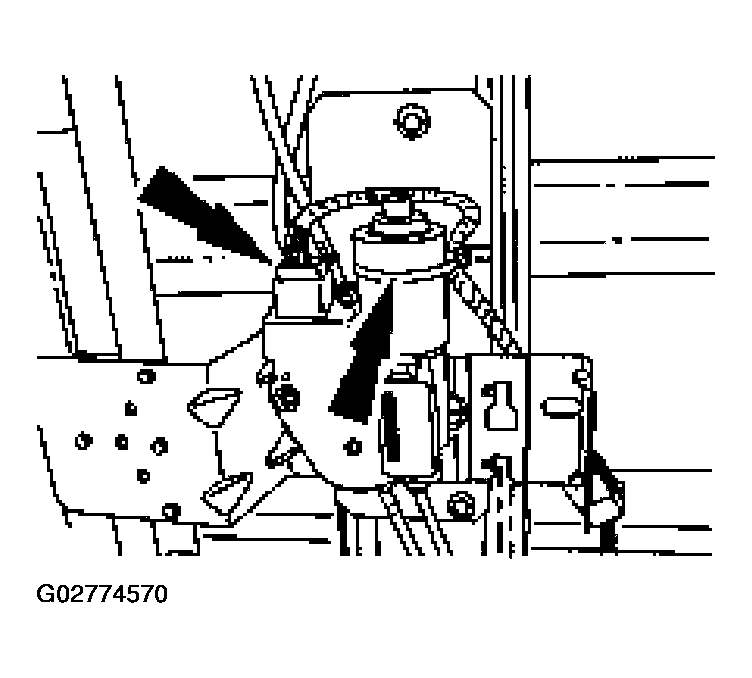

    Fig 1: Connecting Roof Opening Panel Motor Electrical Connector
    G02774570Courtesy of FORD MOTOR CO.
    2. NOTE: When installing the roof opening panel motor/module, align the three attach holes before engaging the drive gear into the roof opening panel drive cable. Do not rotate the motor assembly after the drive gear is engaged with the roof opening panel drive cable. Otherwise, the cable can bind.
  2. Install the roof opening panel motor.
    • Align the attach holes, then install the three bolts.
      Fig 2: Installing Roof Opening Panel Motor Bolts
      G02774571Courtesy of FORD MOTOR CO.
  3. Connect the overhead console electrical connectors.
  4. Initialize the roof opening panel motor/module. Refer to ROOF OPENING PANEL MOTOR INITIALIZATION .
  5. Disconnect the overhead console electrical connectors.
  6. Install the headliner. Refer to INTERIOR TRIM AND ORNAMENTATION .
