Removal and Installation

NOTE: If necessary, remove the rear wheels for easier access of the fender flare retaining bolts.

Remove the rear wheels. Refer to WHEELS & TIRES .
Remove the screws.

Fig 1: Removing Screws
Courtesy of FORD MOTOR CO.
Remove and discard the push pins, then remove 2 screws from the rear wheel fender splash shield.

Fig 2: Removing 2 Screws From Rear Wheel Fender Splash Shield
Courtesy of FORD MOTOR CO.
Remove the parking lamp electrical sockets from the fender flare.

Fig 3: Removing Parking Lamp Electrical Sockets From Fender Flare
Courtesy of FORD MOTOR CO.

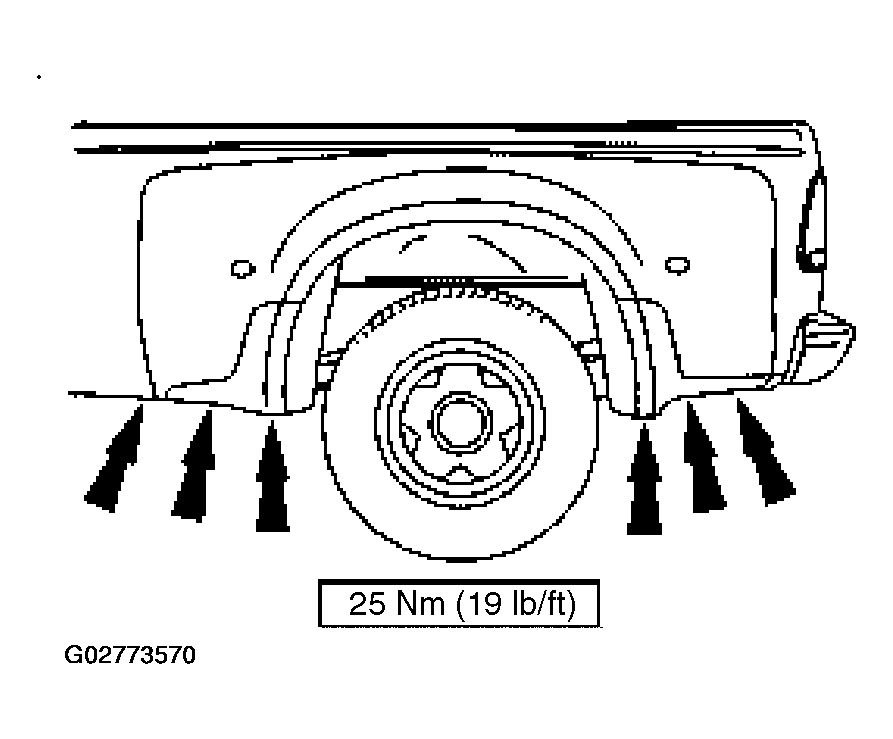

Remove six fender flare retaining nuts and bolts from the bottom front and the bottom rear of the fender flare.

Fig 4: Removing Six Fender Flare Retaining Nuts And Bolts
Courtesy of FORD MOTOR CO.
Remove five (three shown) fender nuts from inside front of the fender flare.

Fig 5: Removing Fender Nuts From Inside Front Of Fender Flare
Courtesy of FORD MOTOR CO.

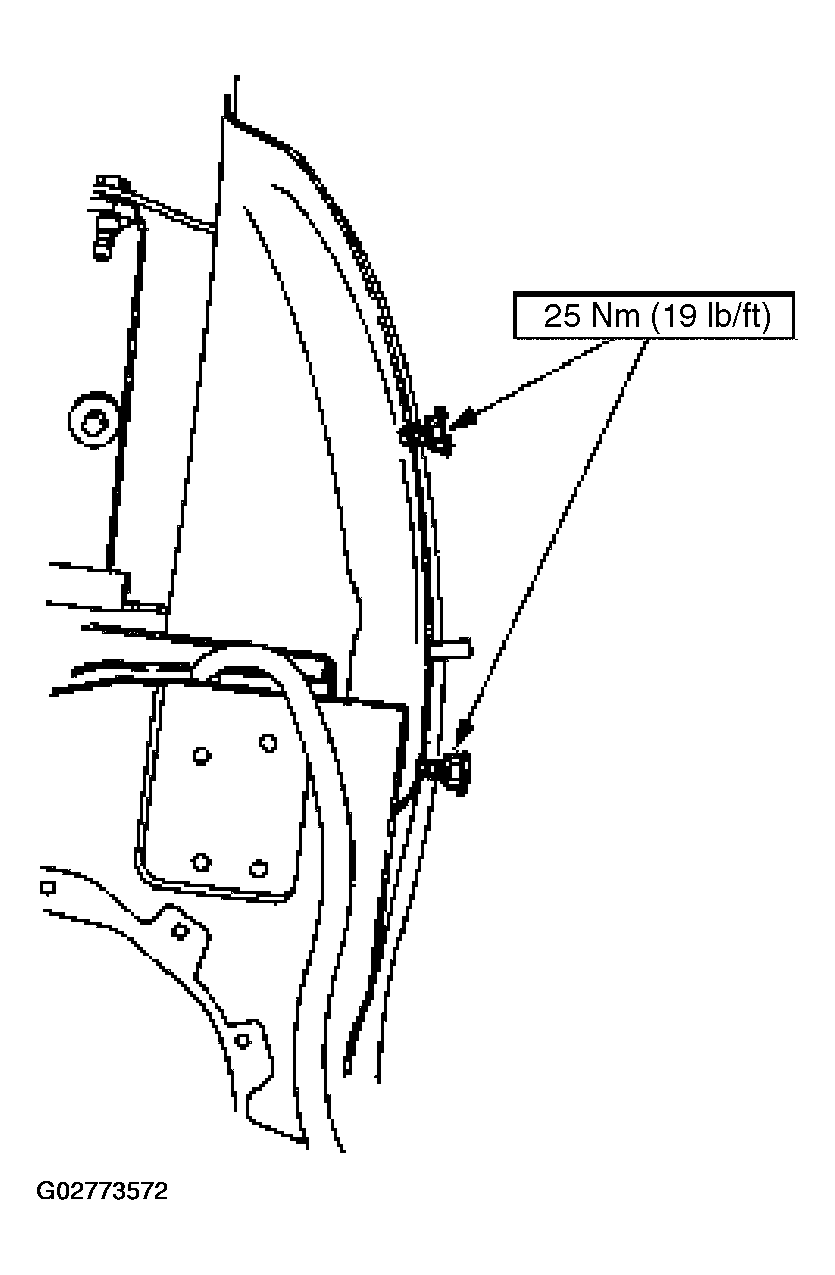

Remove five (two shown) fender retaining nuts from inside rear of the fender flare.

Fig 6: Removing Fender Retaining Nuts From Inside Rear Of Fender Flare
Courtesy of FORD MOTOR CO.

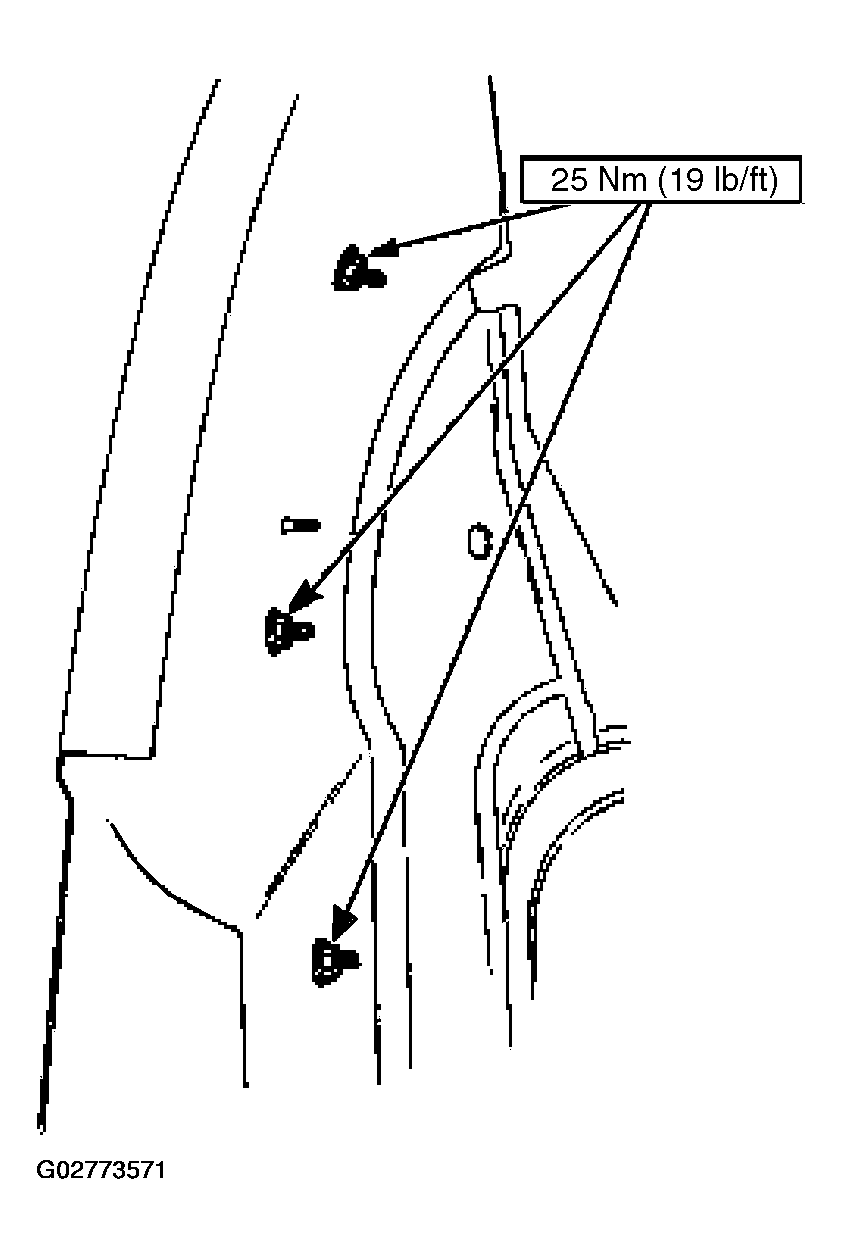

Remove three fender flare retaining bolts and the bracket from top front of the fender.

Fig 7: Removing Three Fender Flare Retaining Bolts
Courtesy of FORD MOTOR CO.
Remove three fender flare retaining bolts and the bracket from top rear of the fender.

Fig 8: Removing Three Fender Flare Retaining Bolts
Courtesy of FORD MOTOR CO.
Remove the fender.
Remove and discard one fender hold down push pin from the fender.

Fig 9: Removing Fender Hold Down Push Pin From Fender
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
