Hinge Adjustment - Rear Door, SuperCab

NOTE: The following procedure is for performing fore, aft, up, down and tilt adjustments.

NOTE: Before performing the hinge adjustment, refer to DOOR PRE-ADJUSTMENT INSPECTION .

Remove the rear door inside trim panel(s); refer to INTERIOR TRIM AND ORNAMENTATION .

NOTE: The left rear door is shown, the right rear door is symmetrically opposite.

Fig 1: Removing Upper Door Strikers

Courtesy of FORD MOTOR CO.

Fig 2: Removing Lower Door Strikers

Courtesy of FORD MOTOR CO.

Remove the upper and lower door strikers.
Loosen the bolts only enough to allow for slight door movement.

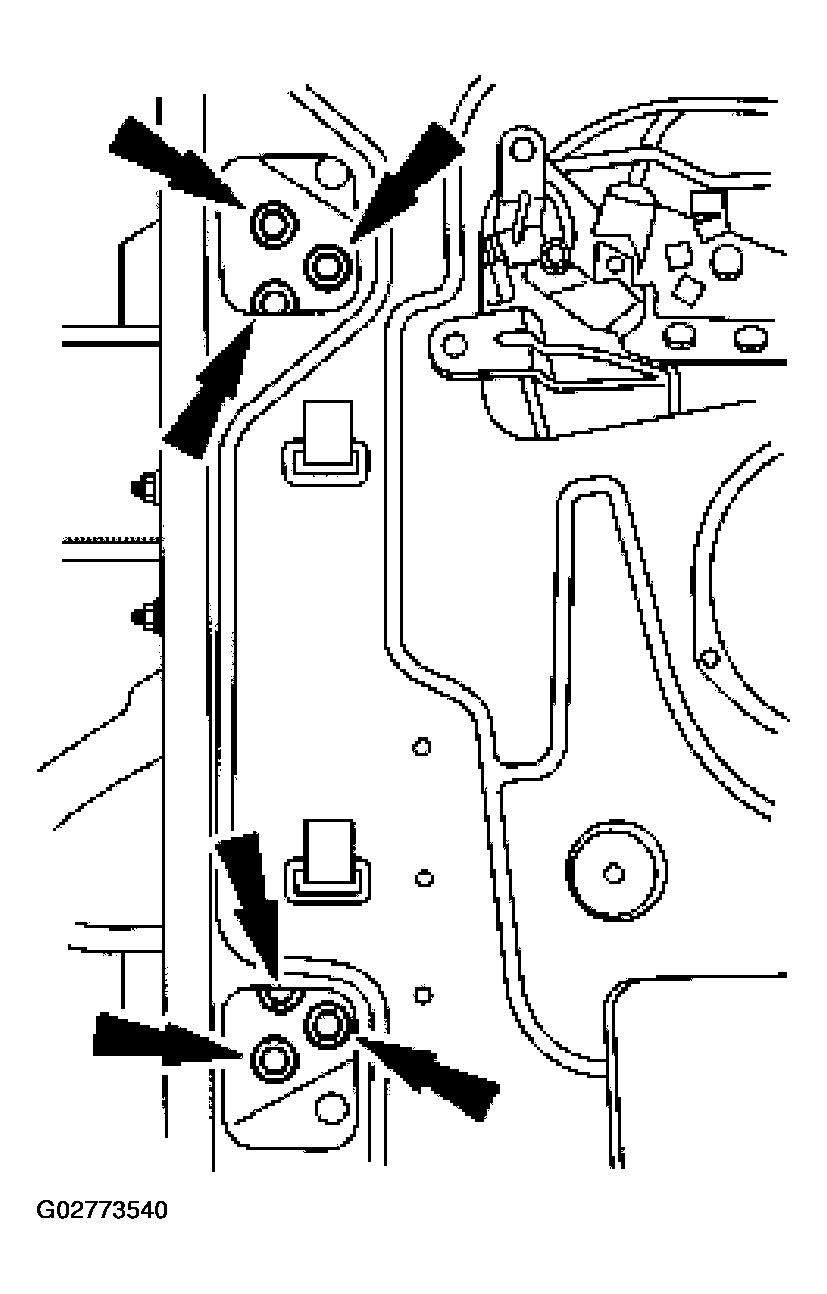

Fig 3: Loosening Bolts
Courtesy of FORD MOTOR CO.
Close the doors and carefully adjust the rear door until properly aligned with all bodylines and adjacent panels.

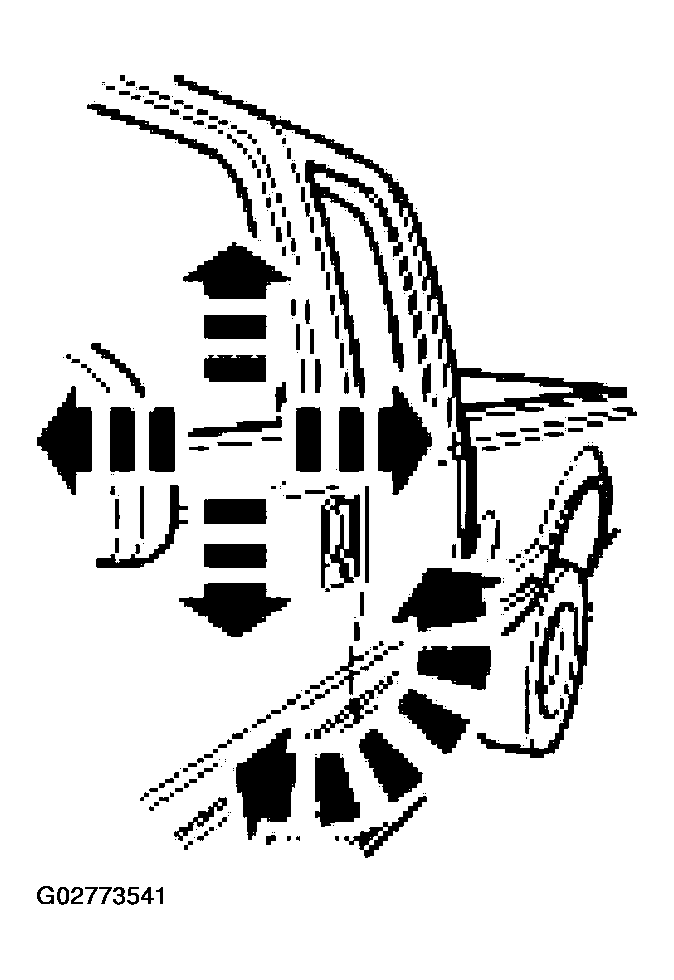

Fig 4: Adjusting Rear Door
Courtesy of FORD MOTOR CO.
Carefully open the doors and tighten the bolts.

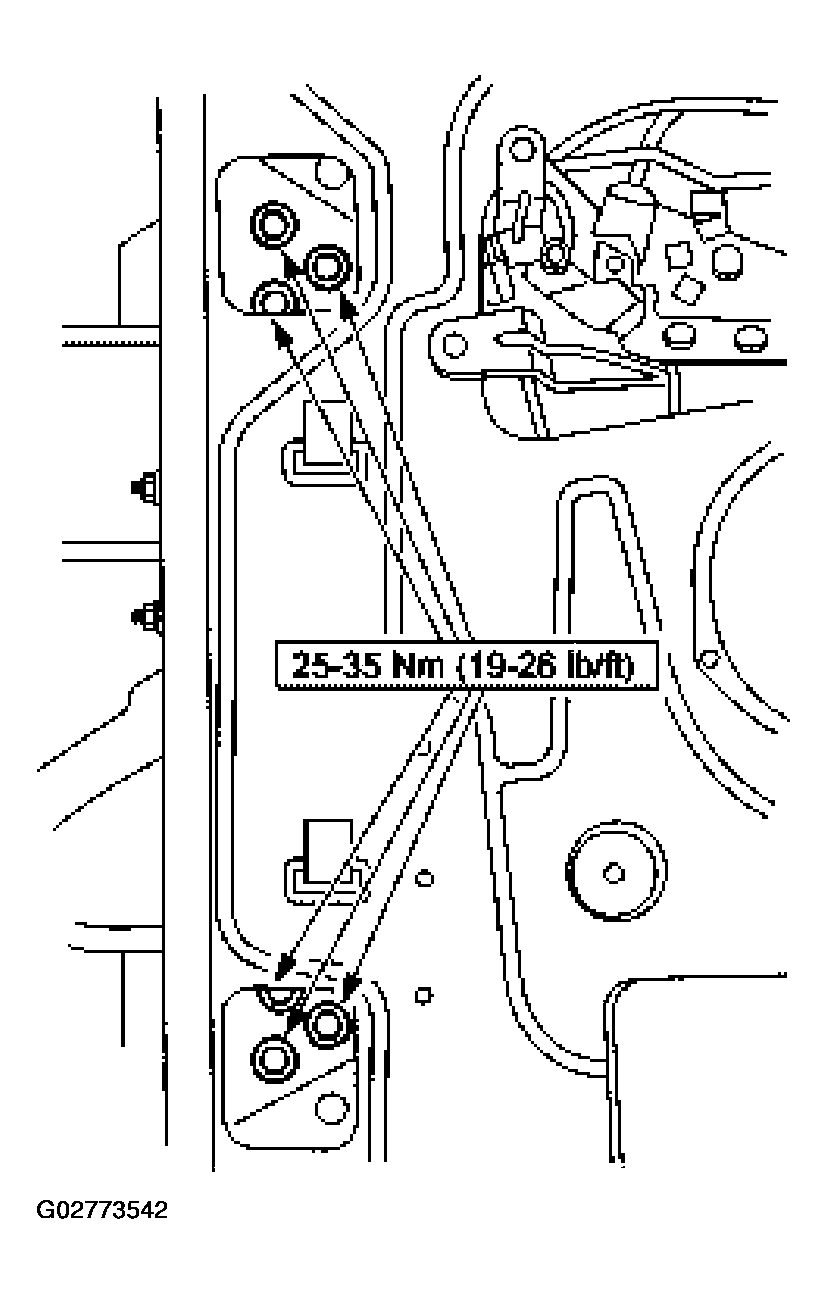

Fig 5: Tightening Bolts
Courtesy of FORD MOTOR CO.
Install and adjust the upper and lower strikers; refer to STRIKER ADJUSTMENT .
