Removal and Installation

  1. Remove the liftgate trim panel. Refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the six nuts.

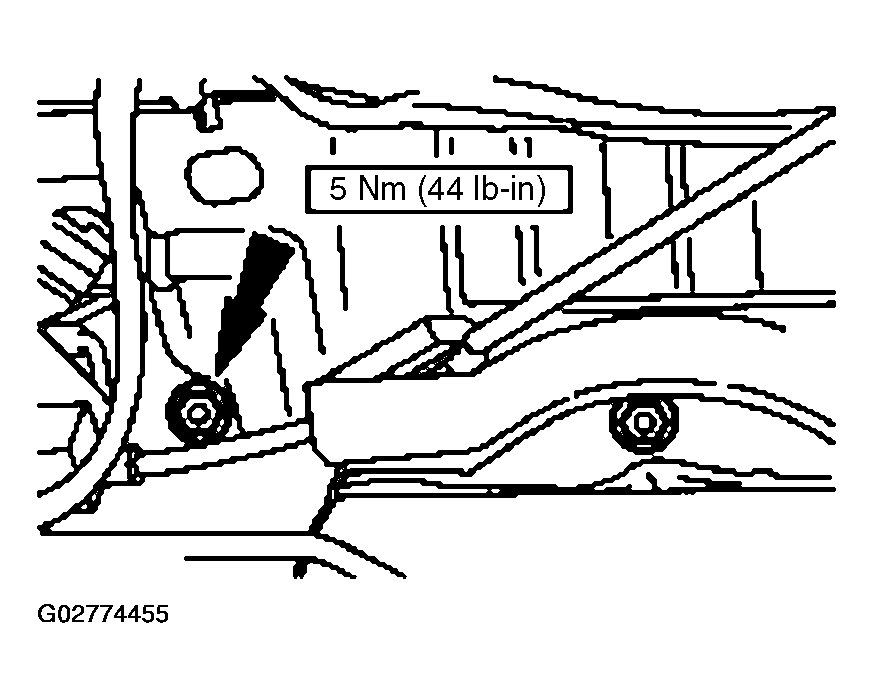

    Fig 1: Removing Nuts
    G02774455Courtesy of FORD MOTOR CO.
  3. Release the lock cylinder rod.
    Fig 2: Releasing Lock Cylinder Rod
    G02774456Courtesy of FORD MOTOR CO.
  4. Release the liftgate release handle actuating rod.
    1. Open the locking clip.
    2. Release the rod.

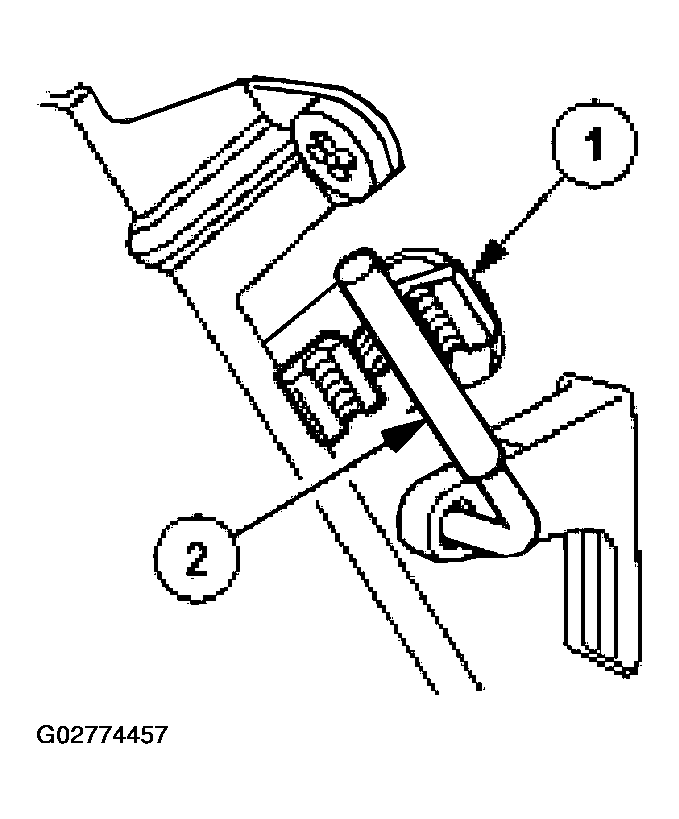

      Fig 3: Releasing Liftgate Release Handle Actuating Rod
      G02774457Courtesy of FORD MOTOR CO.
  5. Remove the exterior liftgate release handle and finish panel.
  6. Remove the liftgate lock cylinder.
    1. Remove the locking clip.
    2. Remove the lock cylinder.
      Fig 4: Removing Liftgate Lock Cylinder
      G02774458Courtesy of FORD MOTOR CO.
    7. NOTE: Transfer parts as necessary.
  7. To install, reverse the removal procedure.
