Removal and Installation

  1. Remove the battery tray. Refer to BATTERY, MOUNTING AND CABLES .
  2. Position windshield washer fluid reservoir aside.
    1. Remove the bolts.
    2. Position windshield washer fluid reservoir aside.

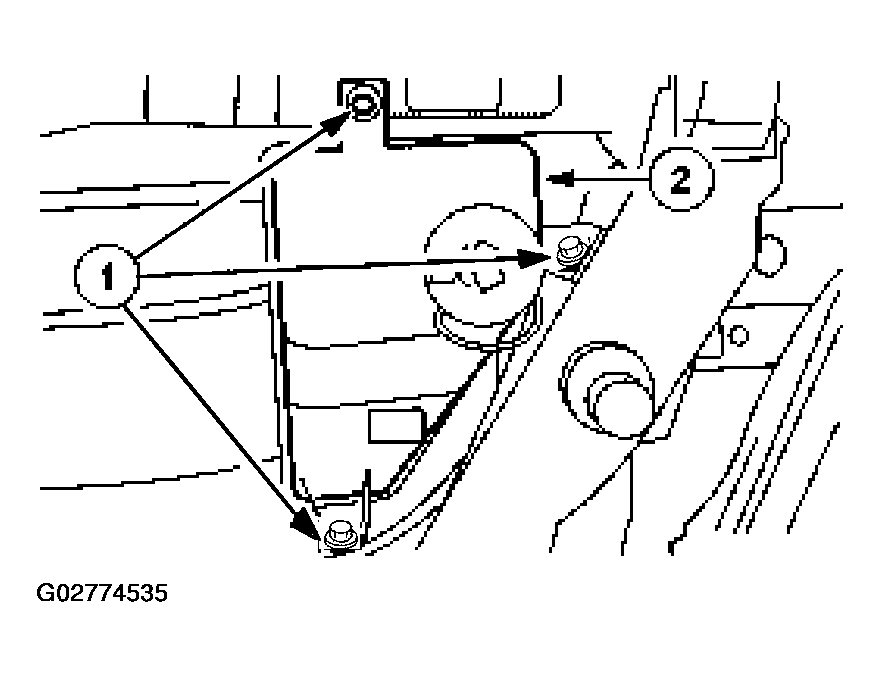

      Fig 1: Positioning Windshield Washer Fluid Reservoir
      G02774535Courtesy of FORD MOTOR CO.
  3. Remove windshield washer fluid reservoir.
    1. Disconnect the electrical connector.
      2. WARNING: Windshield washer solution contains methanol which is poisonous. Observe all cautions and warnings indicated on label of washer solution container.
      NOTE: Windshield washer fluid should be collected in a container after the windshield washer hose is disconnected.
    2. Disconnect the windshield washer hose. (If equipped, disconnect the rear window washer hose.)
    3. Remove the windshield washer fluid reservoir.
      Fig 2: Removing Windshield Washer Fluid Reservoir
      G02774536Courtesy of FORD MOTOR CO.
    4. Remove the windshield washer pump.

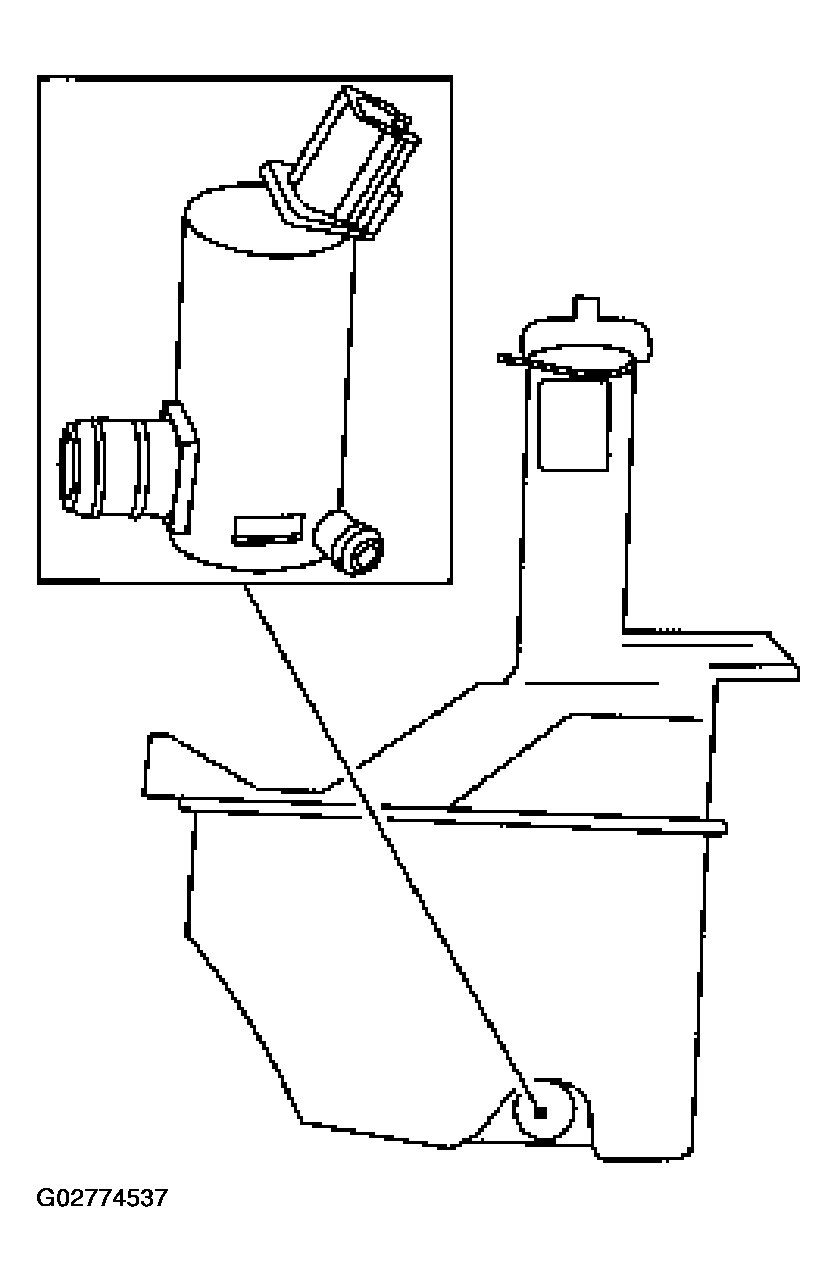

      Fig 3: Removing Windshield Washer Pump
      G02774537Courtesy of FORD MOTOR CO.
      5. CAUTION: Do not make electrical connection prior to filling the windshield washer reservoir. Do not operate the windshield washer pump prior to filling the windshield washer reservoir.
    5. To install, reverse the removal procedure.
