Pinpoint Test A: The Daytime Running Lamps Are Inoperative

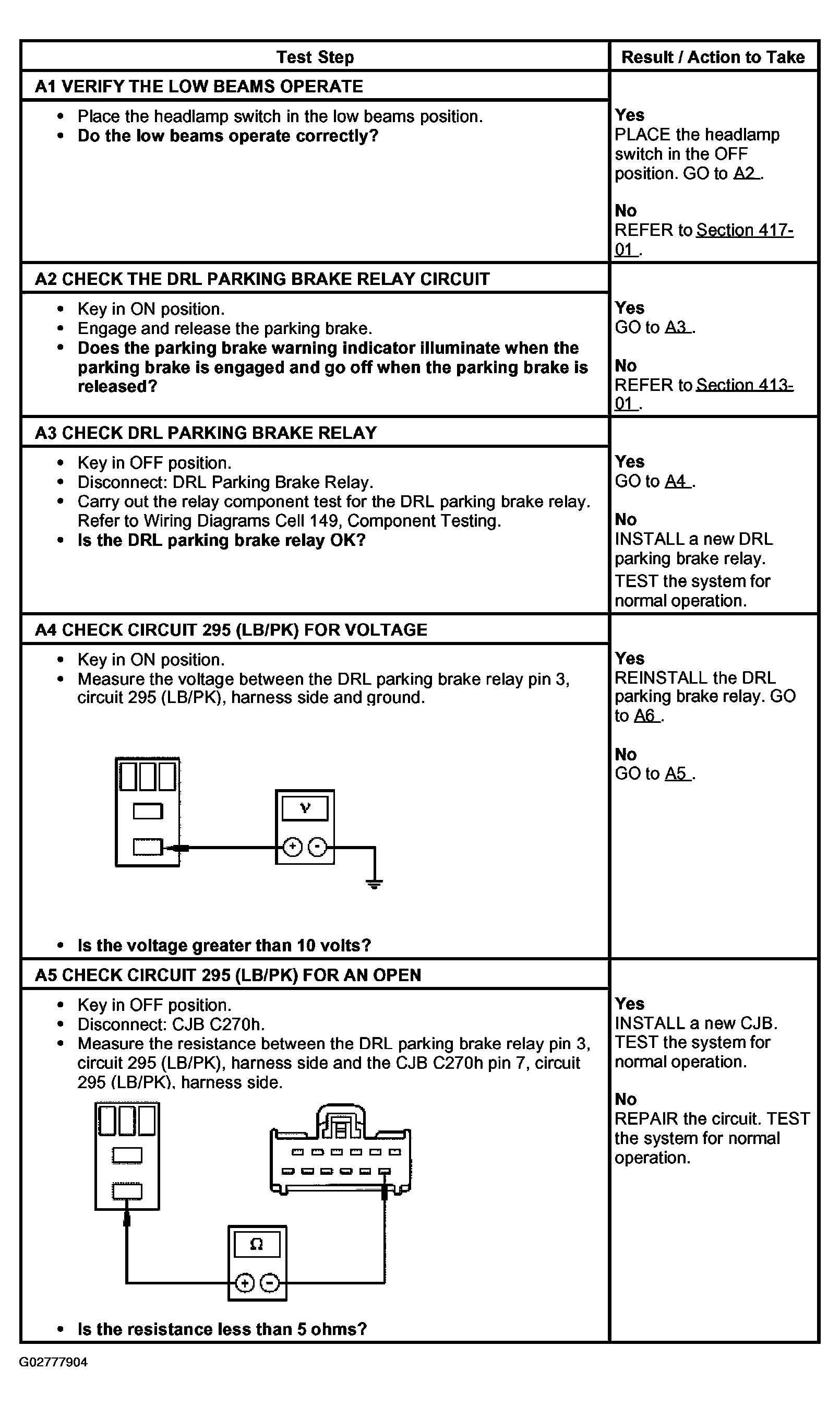

Fig 1: Pinpoint Test A: Daytime Running Lamps Are Inoperative (A1-A5)
G02777904Courtesy of FORD MOTOR CO.

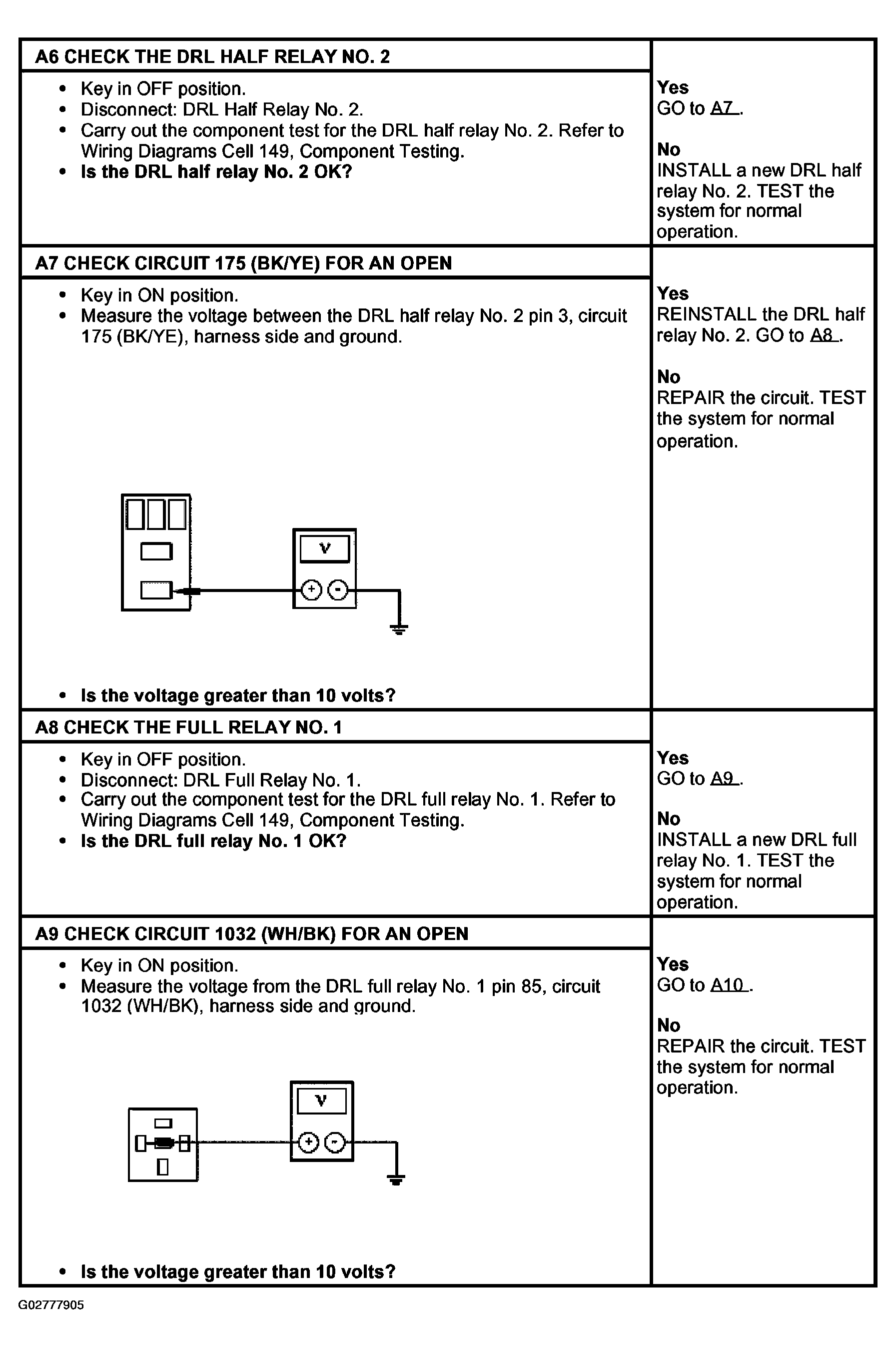

Fig 2: Pinpoint Test A: Daytime Running Lamps Are Inoperative (A6-A9)
G02777905Courtesy of FORD MOTOR CO.

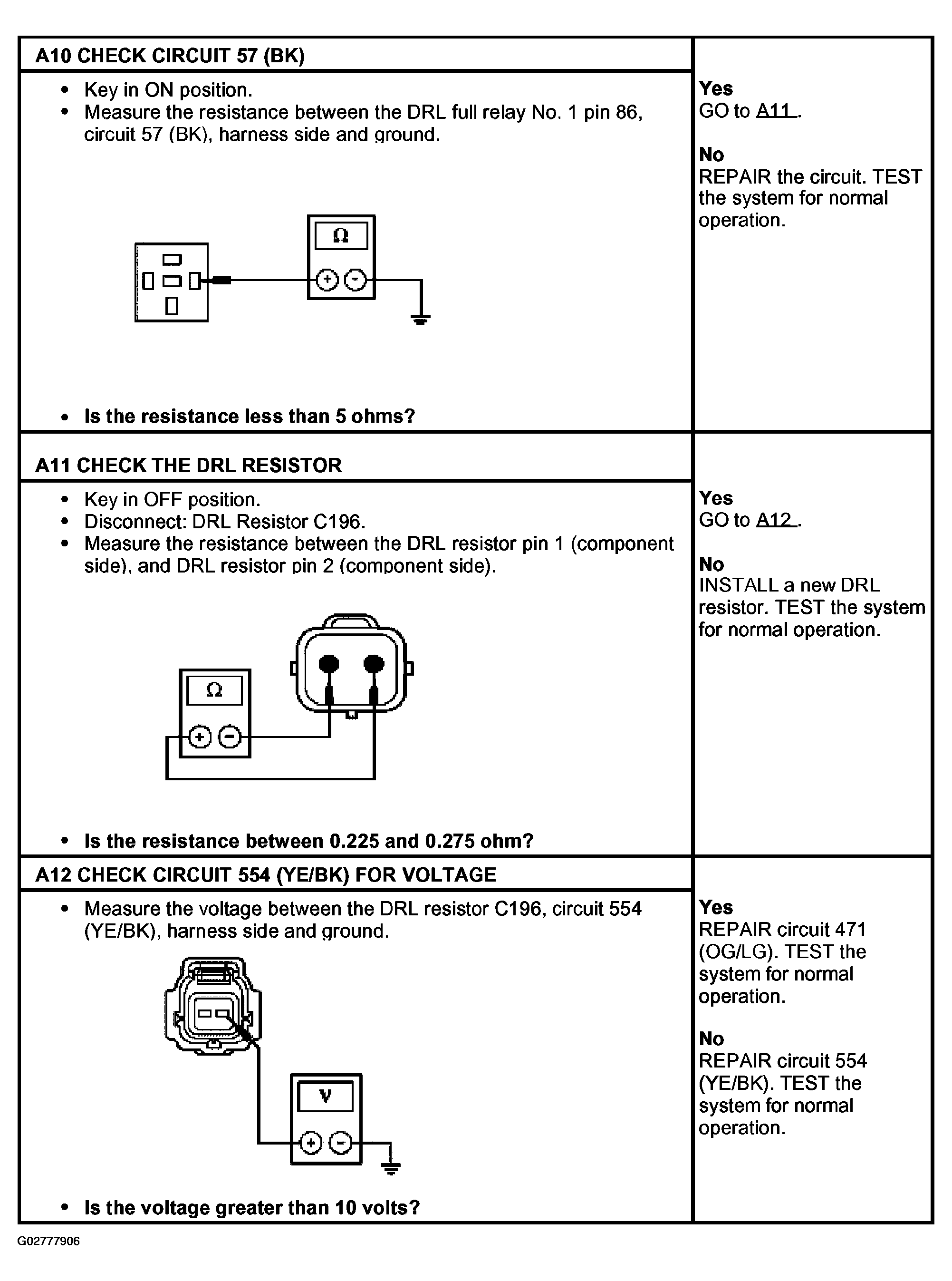

Fig 3: Pinpoint Test A: Daytime Running Lamps Are Inoperative (A10-A12)
G02777906Courtesy of FORD MOTOR CO.
