Identifying Connectors (C1386, C1387 & C1388a)

Fig 1: Inline Connector End View (C1386)

Courtesy of FORD MOTOR CO.

Fig 2: Speed Sensor Assembly Connector End View (C1387)

Courtesy of FORD MOTOR CO.

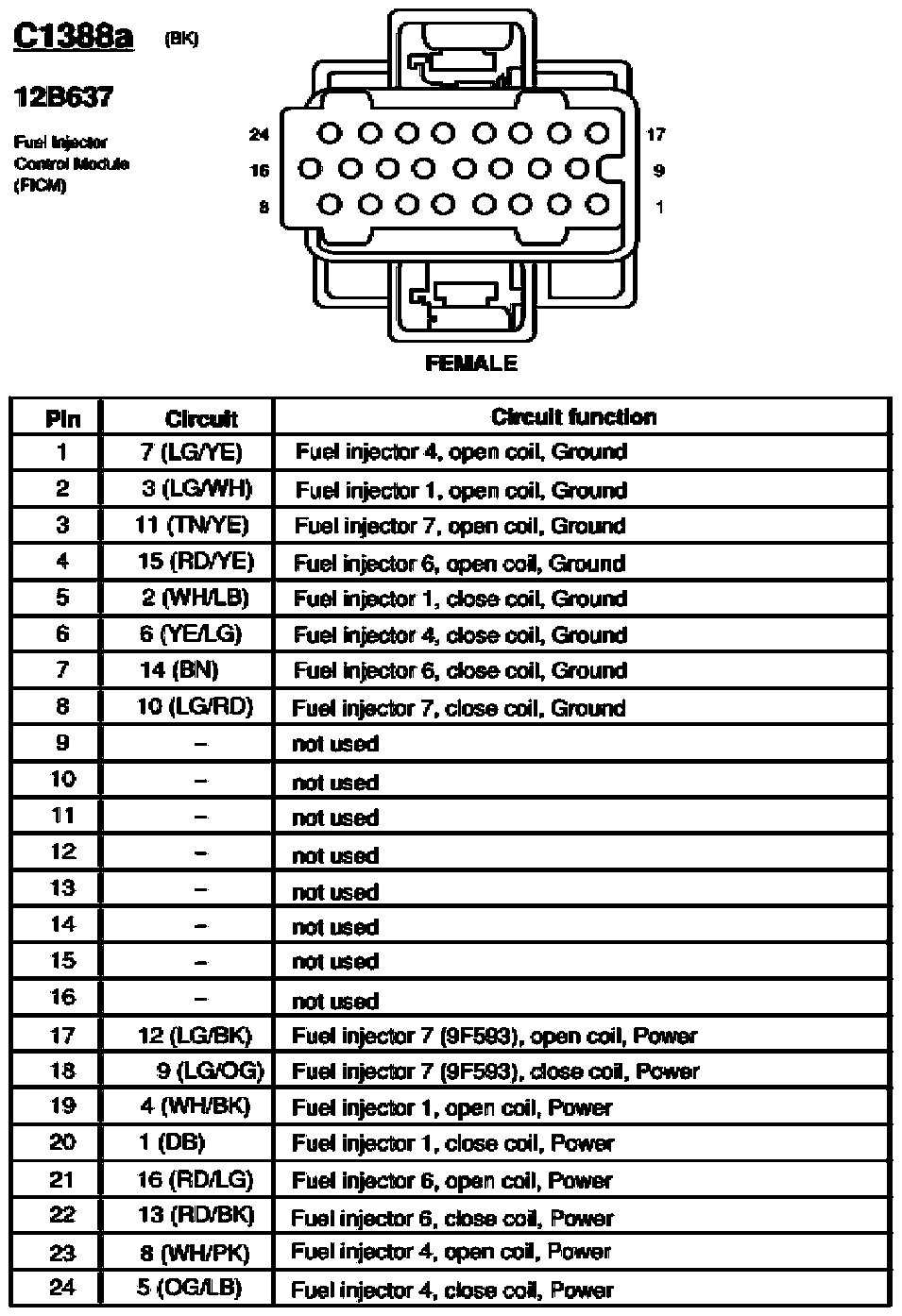

Fig 3: Fuel Injector Control Module (FICM) Connector End View (C1388a)

Courtesy of FORD MOTOR CO.
