Identifying Connectors (C257 & C264)

Fig 1: Clutch Pedal Position Switch Connector End View (C257)

G07836535

Courtesy of FORD MOTOR CO.

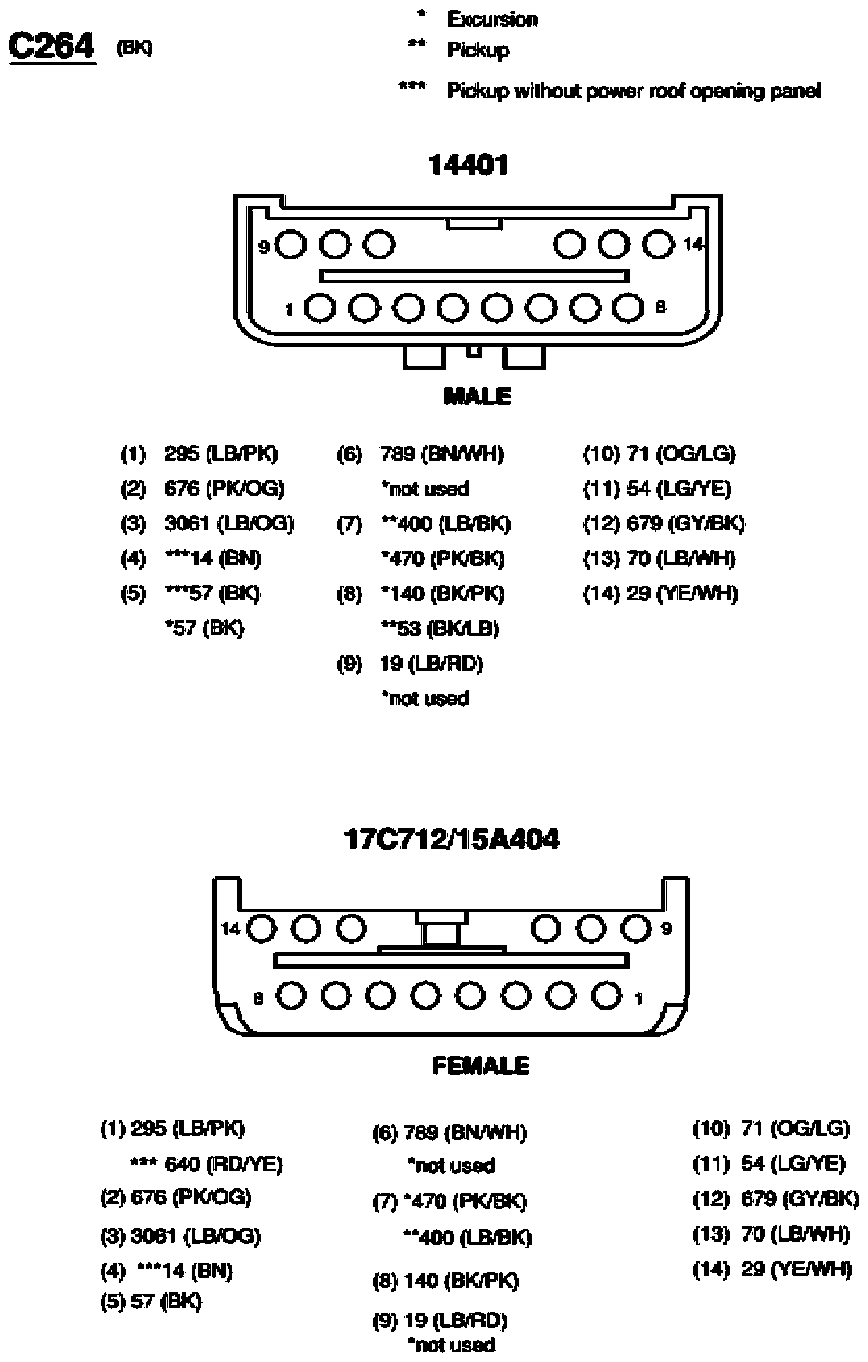

Fig 2: Inline Connector End View (C264)

G07836536

Courtesy of FORD MOTOR CO.
