Excursion 6.8 S, 4WD
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Connector End Views - Excursion & F250-F550 Super Duty
>>
Connector Views
>>
Identifying Connectors (C1381a)
Identifying Connectors (C1381a)

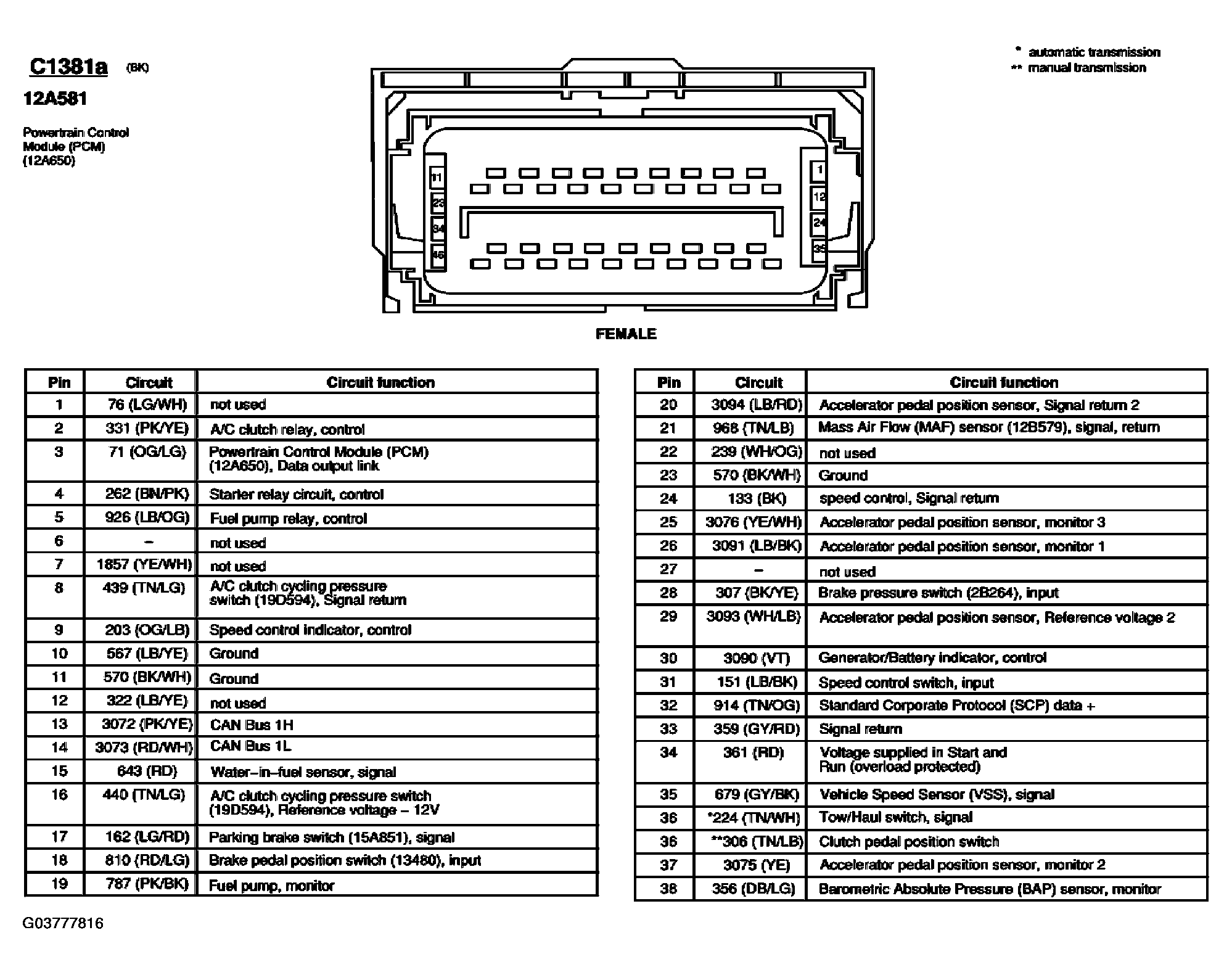

Fig 1: Powertrain Control Module (PCM) Connector End View (C1381a) (1 Of 2)
Courtesy of FORD MOTOR CO.

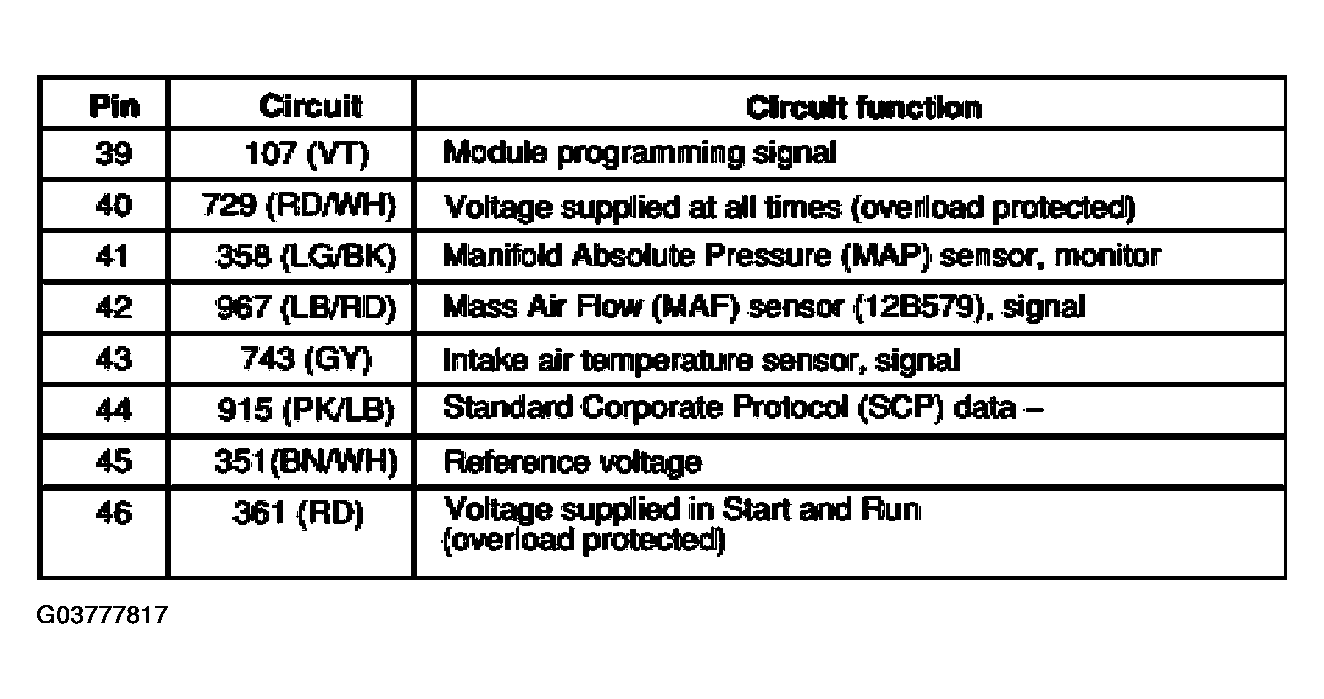

Fig 2: Powertrain Control Module (PCM) Connector End View (C1381a) (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
