Pinpoint Test O: The Charging System Indicator Is Never On

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

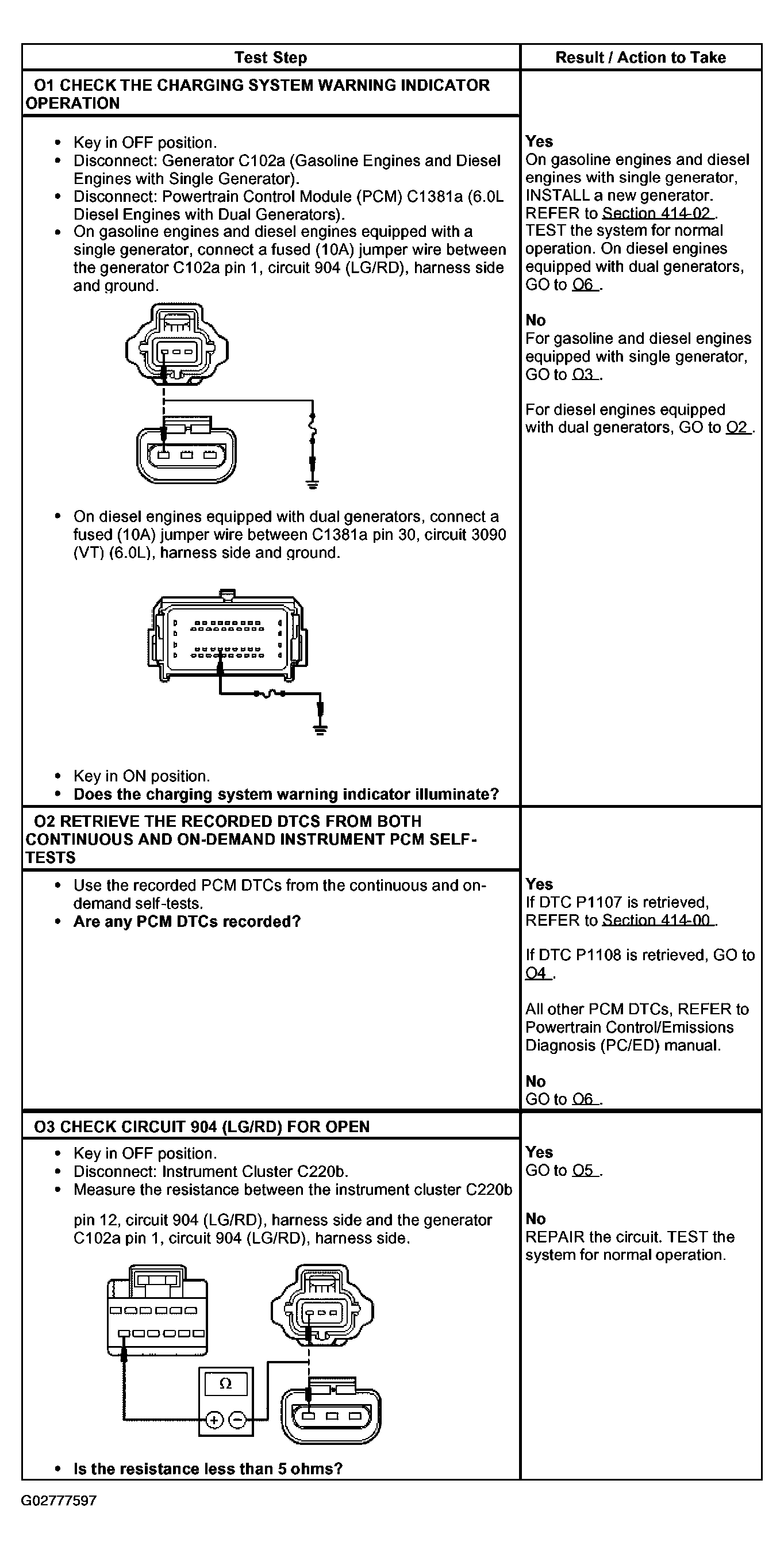

Fig 1: Pinpoint Test O Charging System Indicator (O1-O3)
G02777597Courtesy of FORD MOTOR CO.

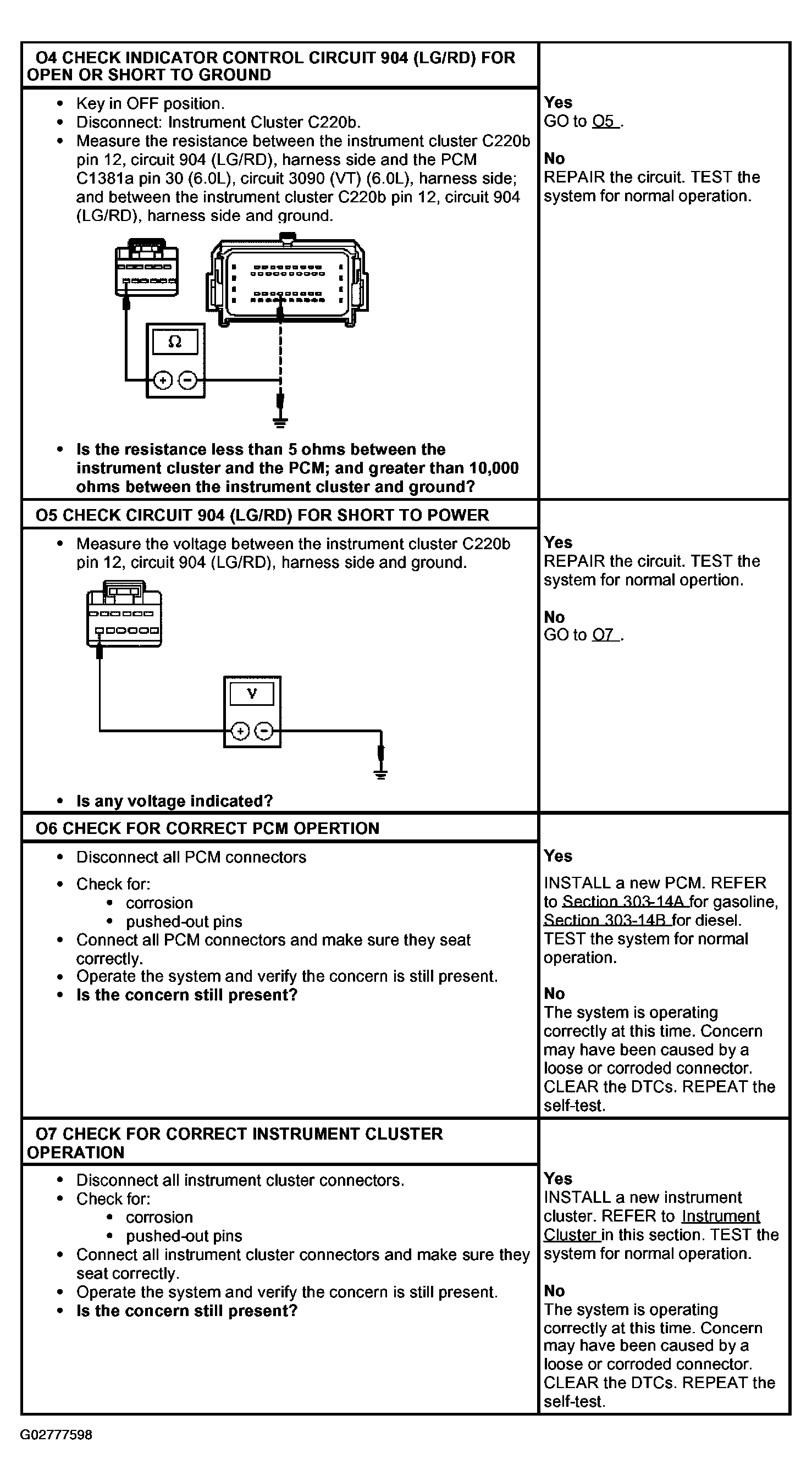

Fig 2: Pinpoint Test O Charging System Indicator (O4-O7)
G02777598Courtesy of FORD MOTOR CO.
