Instrument Cluster System -- Excursion & F250-F550 Super Duty
>>
Diagnosis And Testing
>>
Instrument Cluster
>>
Pinpoint Tests
>>
Pinpoint Test Aa: The Check Gage Warning Indicator Is Inoperative/Always On
Pinpoint Test Aa: The Check Gage Warning Indicator Is Inoperative/Always On

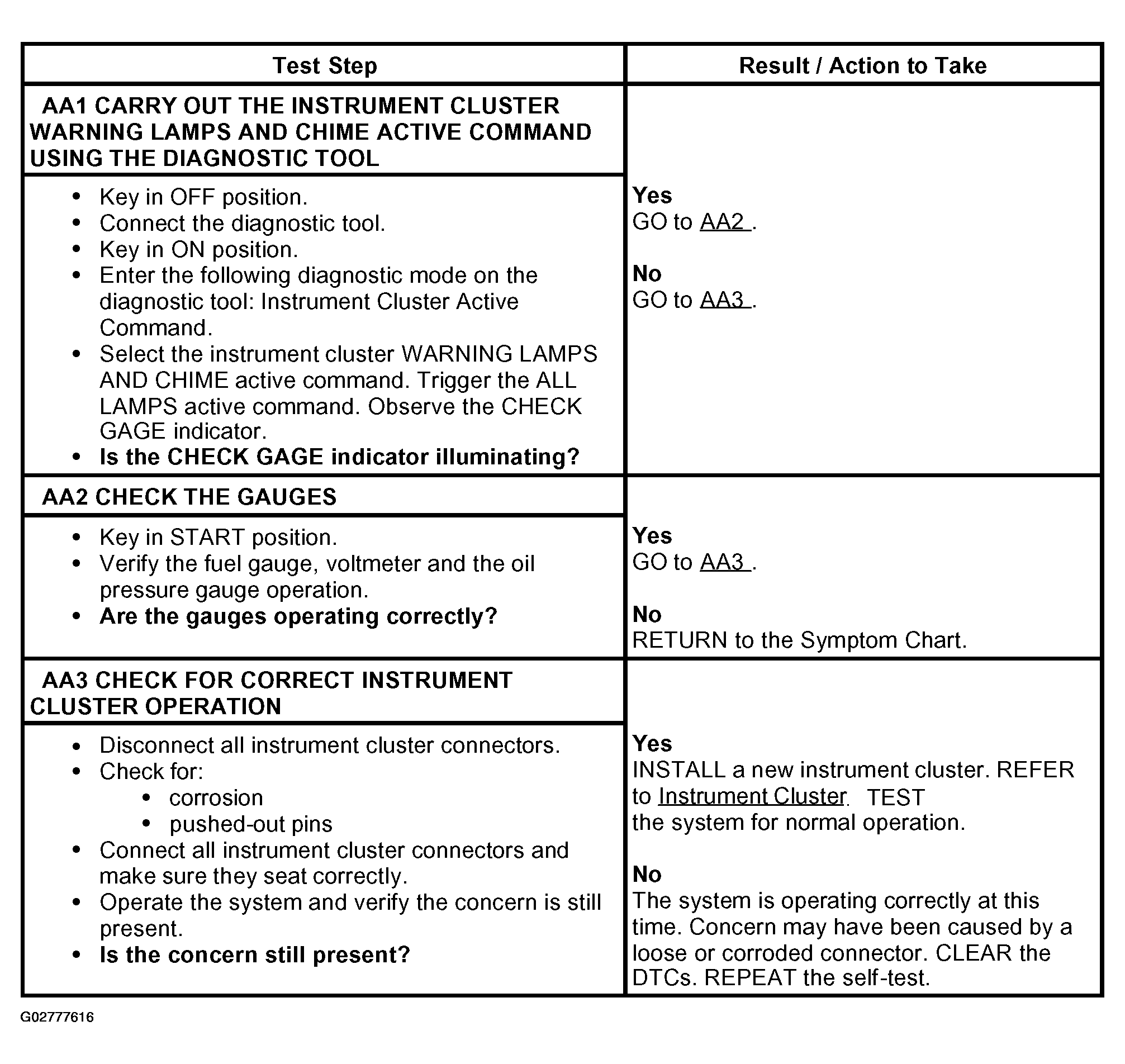

Fig 1: Pinpoint Test AA Checking Gage Warning Indicator (AA1-AA3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
