Seat Latch - 20 Percent: Removal

  1. Remove seat back. Refer to FRONT SEAT BACKREST - 20 PERCENT .
  2. Remove the lower latch retaining bolts, spacers and the latch.

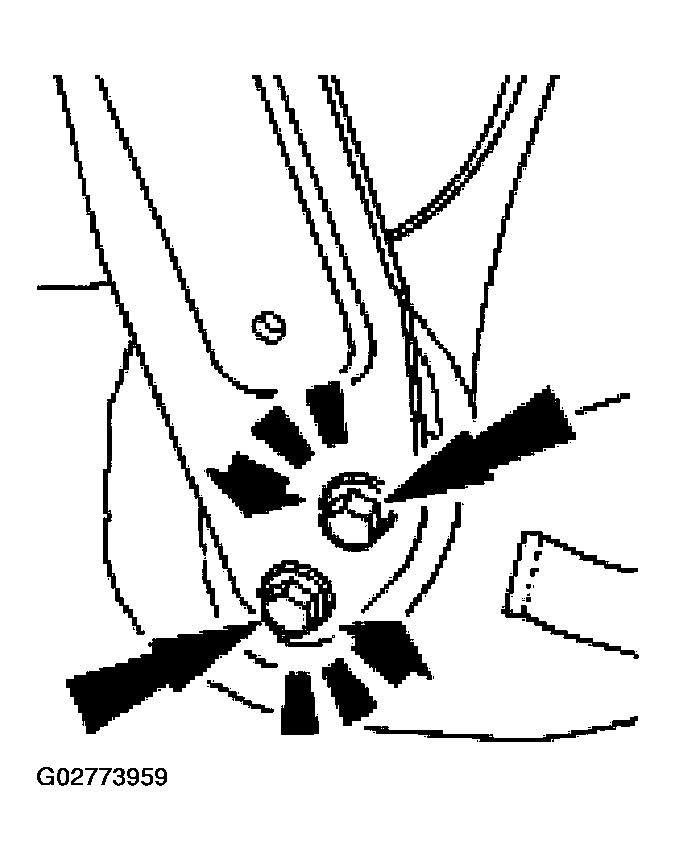

    Fig 1: Removing Lower Latch Retaining Bolts, Spacers And Latch
    G02773959Courtesy of FORD MOTOR CO.
