Rear Seat Cushion - Excursion, Second Row: Removal

    NOTE: The 60 percent seat is shown, the 40 percent seat is similar.
  1. Remove the seat. Refer to REAR SEAT - EXCURSION, SECOND ROW .
  2. Remove the four nuts.

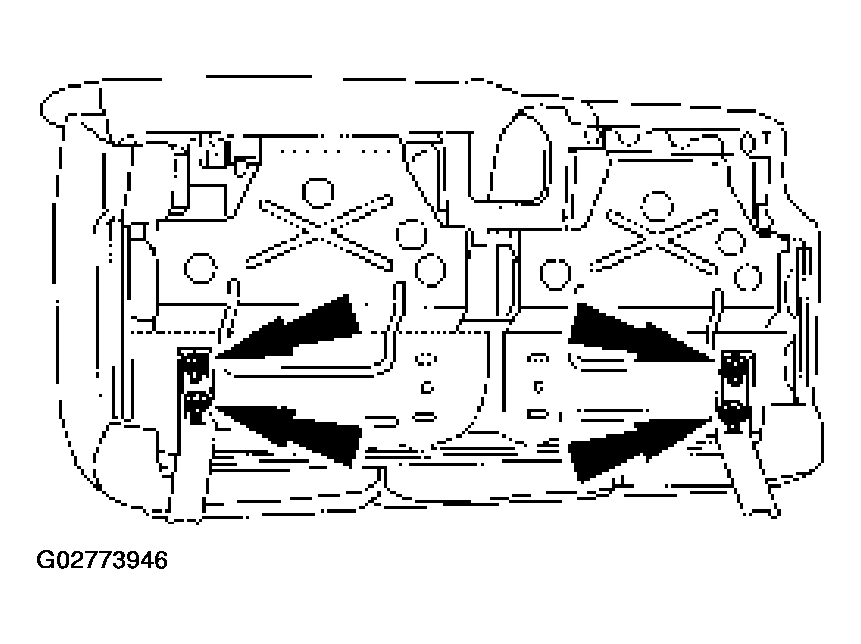

    Fig 1: Removing Nuts
    G02773946Courtesy of FORD MOTOR CO.
