Rear Seat Backrest - Excursion, Third Row: Removal

  1. Remove the LH lower pivot cover.
    • Remove the three pin-type retainers.
      Fig 1: Removing LH Lower Pivot Cover
      G02773889Courtesy of FORD MOTOR CO.
  2. Remove the seat adjuster handle.
    Fig 2: Removing Seat Adjuster Handle
    G02773890Courtesy of FORD MOTOR CO.
  3. Remove the lower RH adjuster cover.
    • Remove the three pin-type retainers.
      Fig 3: Removing Lower Rh Adjuster Cover
      G02773891Courtesy of FORD MOTOR CO.
  4. Remove the seat back from the seat cushion.
    1. Remove the four bolts.
    2. Remove the seat back.

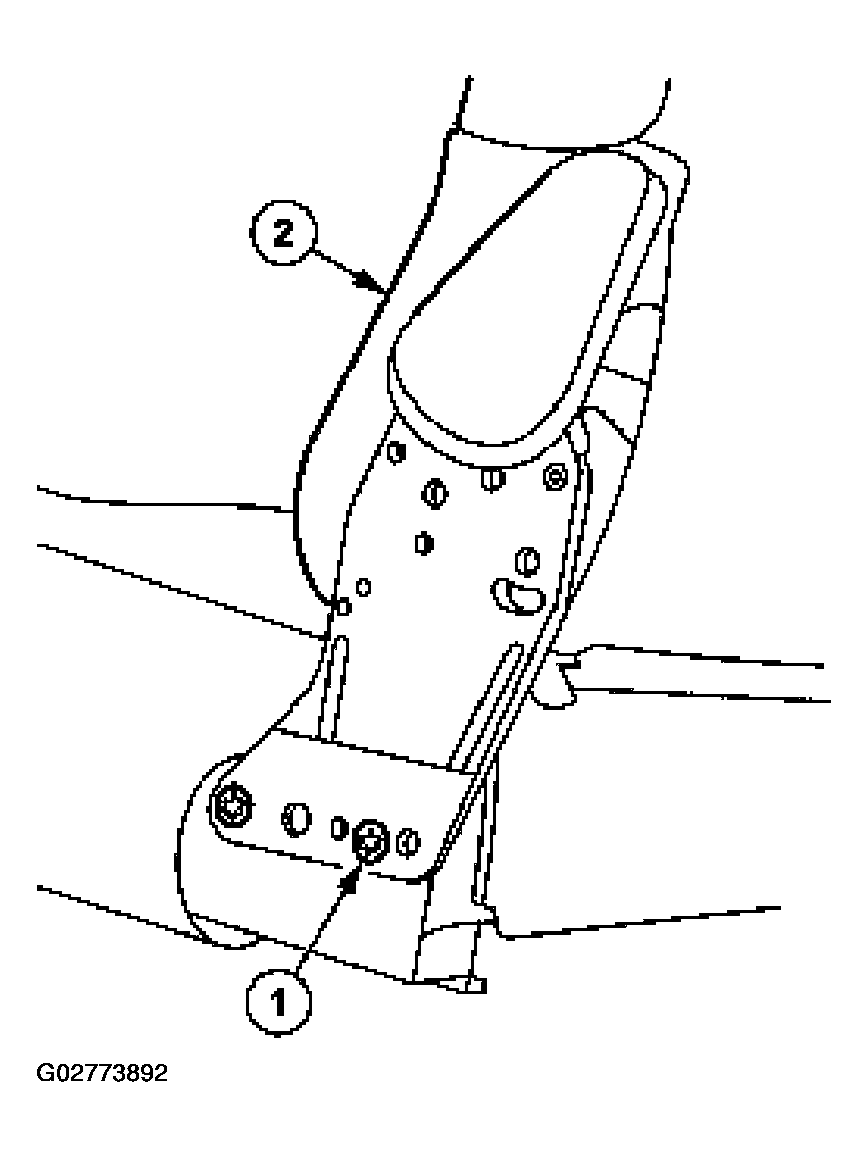

      Fig 4: Removing Seat Back
      G02773892Courtesy of FORD MOTOR CO.
