Pinpoint Test E: The 4 Wheel Drive Switch Illumination Is Inoperative (If Equipped)

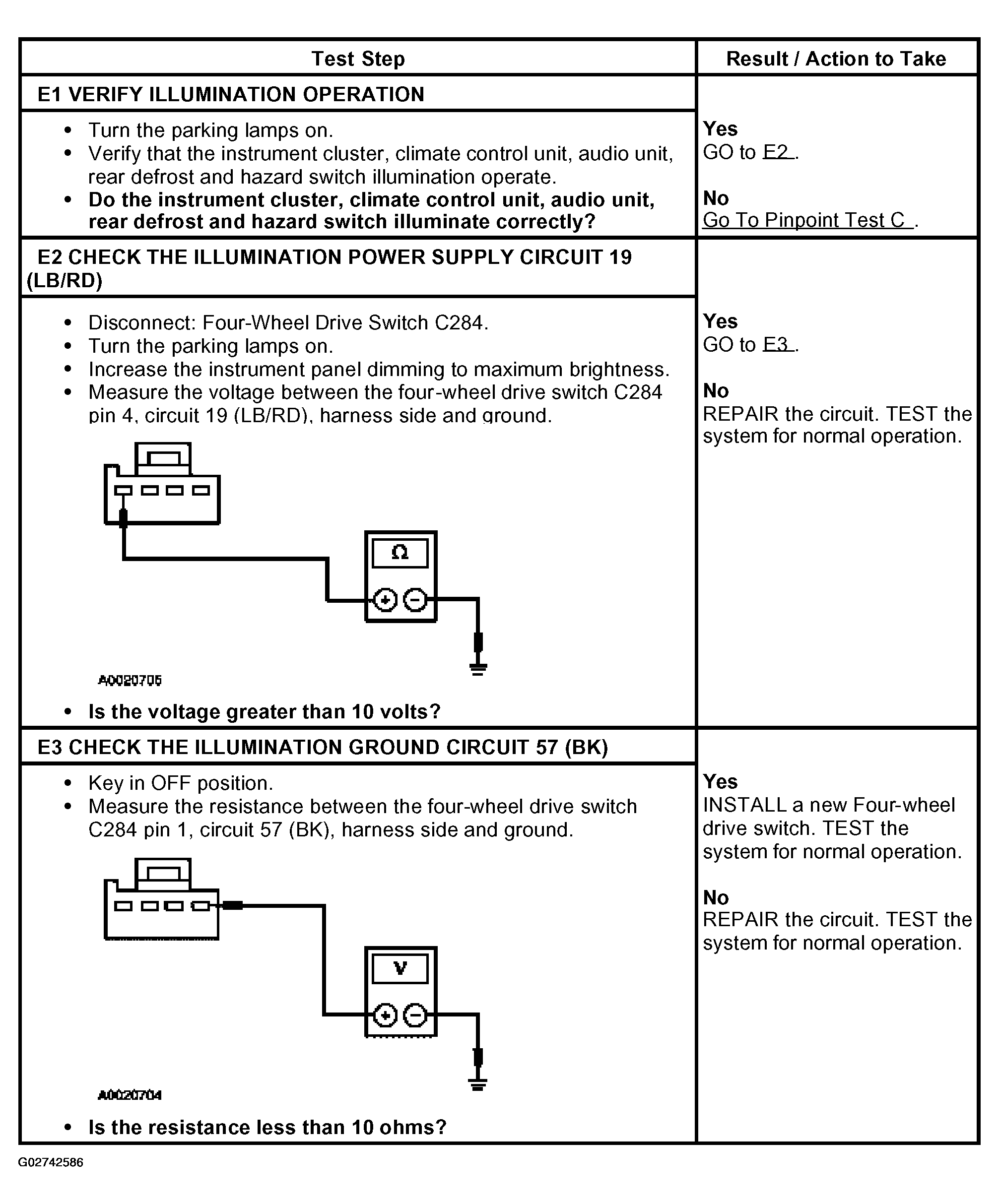

Fig 1: Pinpoint Test E: 4 Wheel Drive Switch Illumination Is Inoperative (If Equipped)

G02742586

Courtesy of FORD MOTOR CO.
