Pinpoint Test C: The Instrument Panel Illumination Does Not Dim

CAUTION: Use the correct probe adaptor(s) when making measurement. Failure to use the correct probe adaptor(s) may damage the connector.

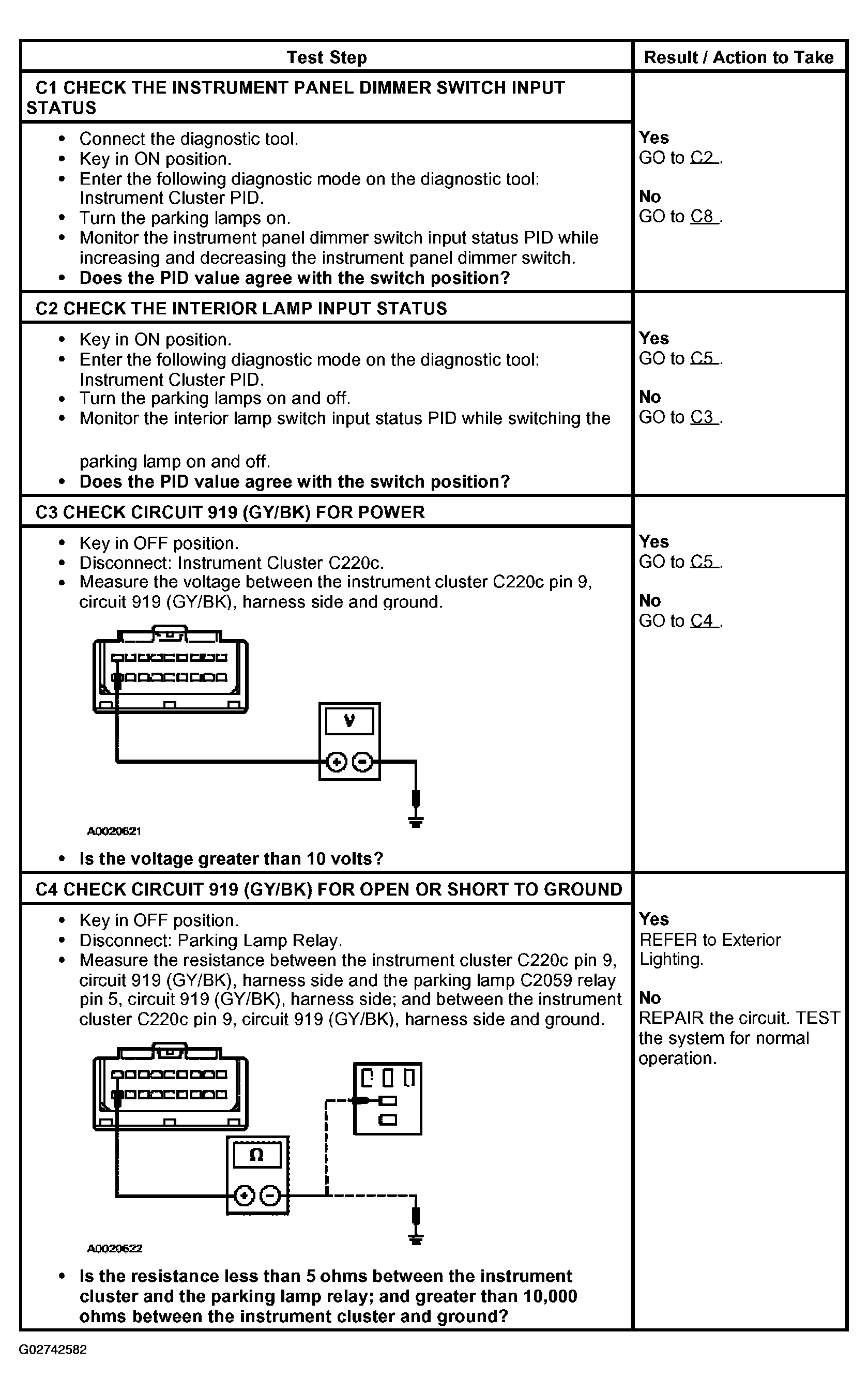

Fig 1: Pinpoint Test C: Instrument Panel Illumination Does Not Dim Step (C1-4)

Courtesy of FORD MOTOR CO.

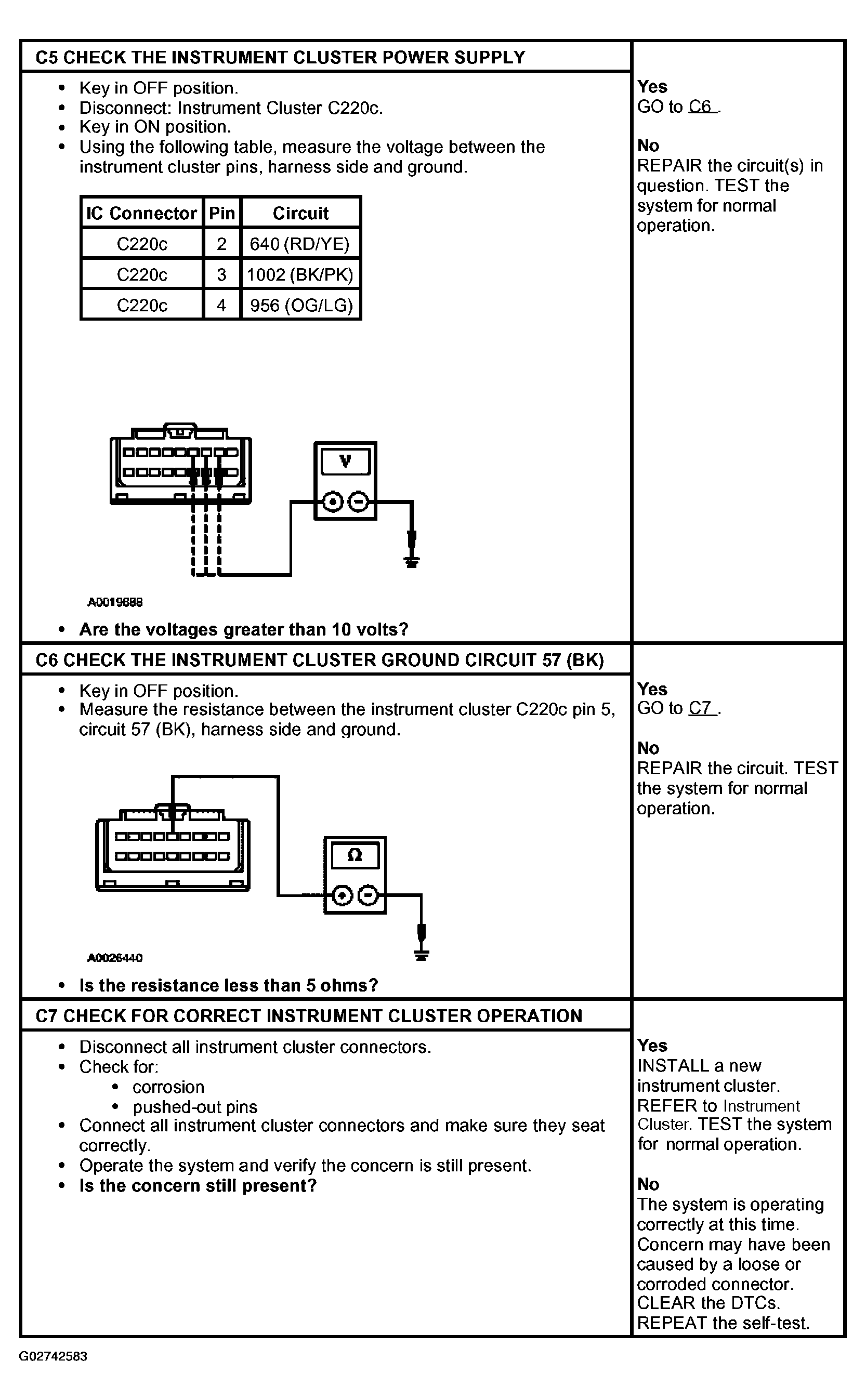

Fig 2: Pinpoint Test C: Instrument Panel Illumination Does Not Dim Step (C5-C7)

Courtesy of FORD MOTOR CO.

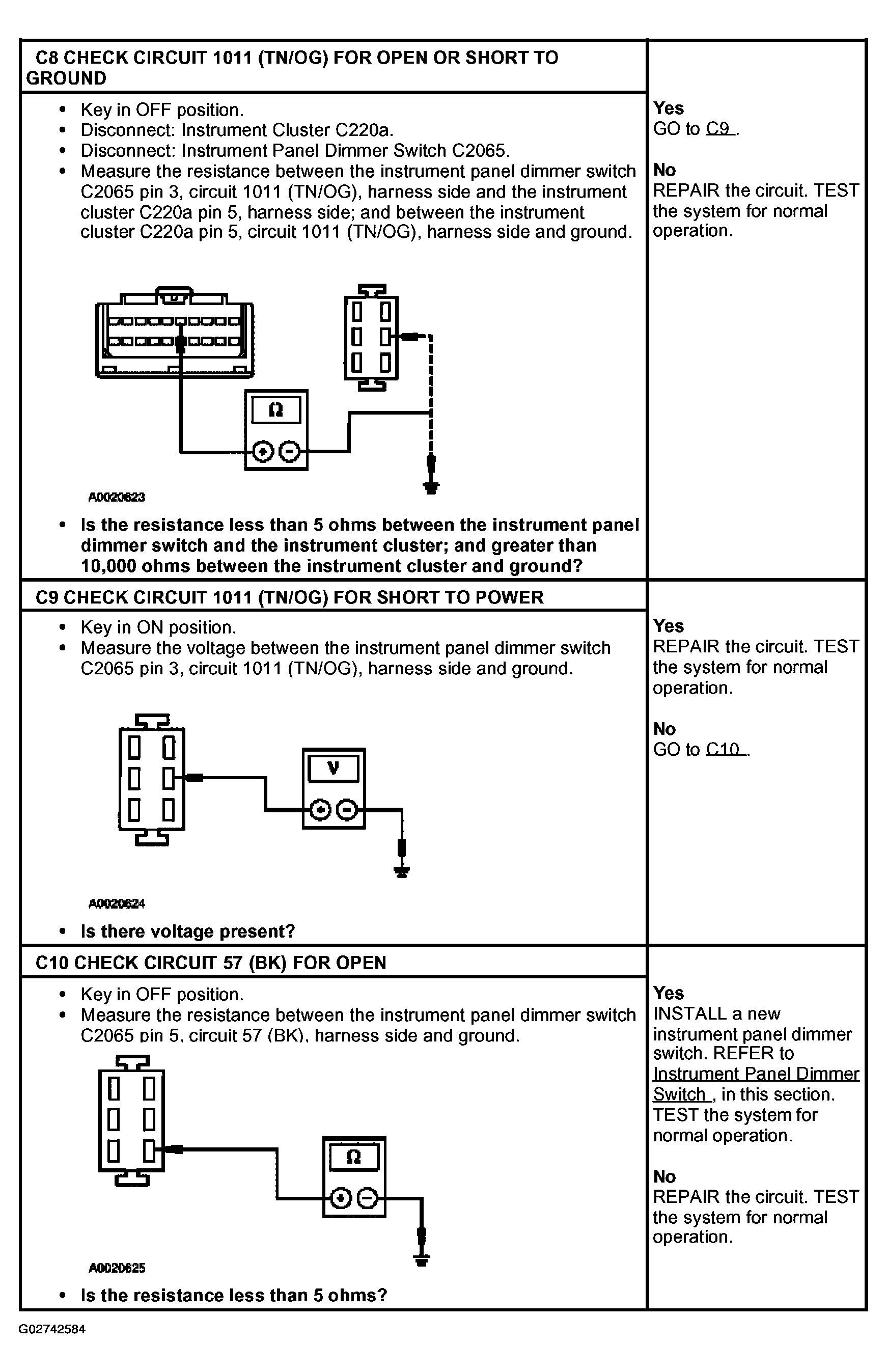

Fig 3: Pinpoint Test C: Instrument Panel Illumination Does Not Dim Step (C8-C10)

Courtesy of FORD MOTOR CO.
