Removal and Installation

  1. Remove the instrument panel dimmer switch.
    Fig 1: Removing Instrument Panel Dimmer Switch
    G02742591Courtesy of FORD MOTOR CO.
  2. Disconnect the electrical connector.

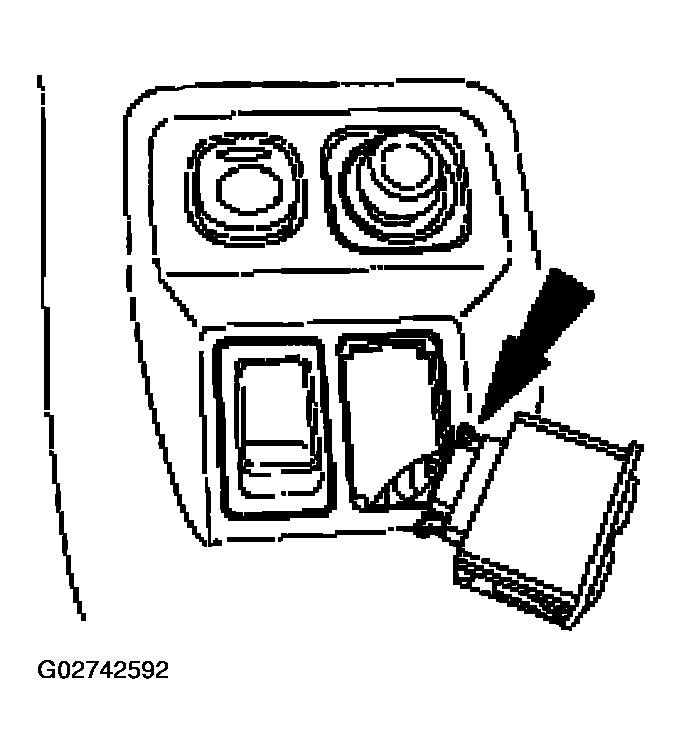

    Fig 2: Disconnecting Electrical Connector
    G02742592Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
