Pinpoint Test F: The Hazard Switch Illumination Is Inoperative

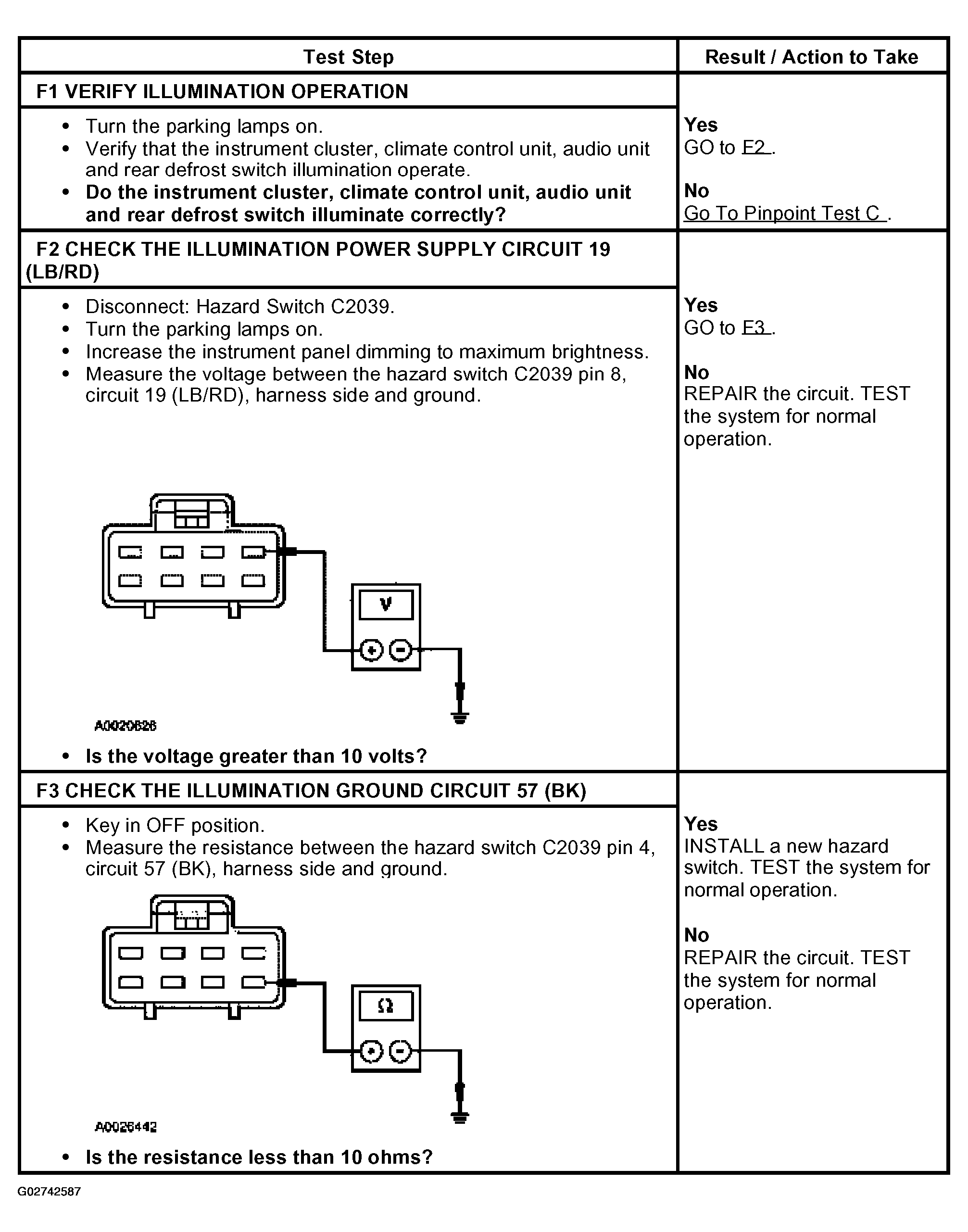

Fig 1: Pinpoint Test F: Hazard Switch Illumination Is Inoperative

G02742587

Courtesy of FORD MOTOR CO.
