Pinpoint Test D: The Rear Defrost Switch Illumination Is Inoperative
Pinpoint Test D: The Rear Defrost Switch Illumination Is Inoperative

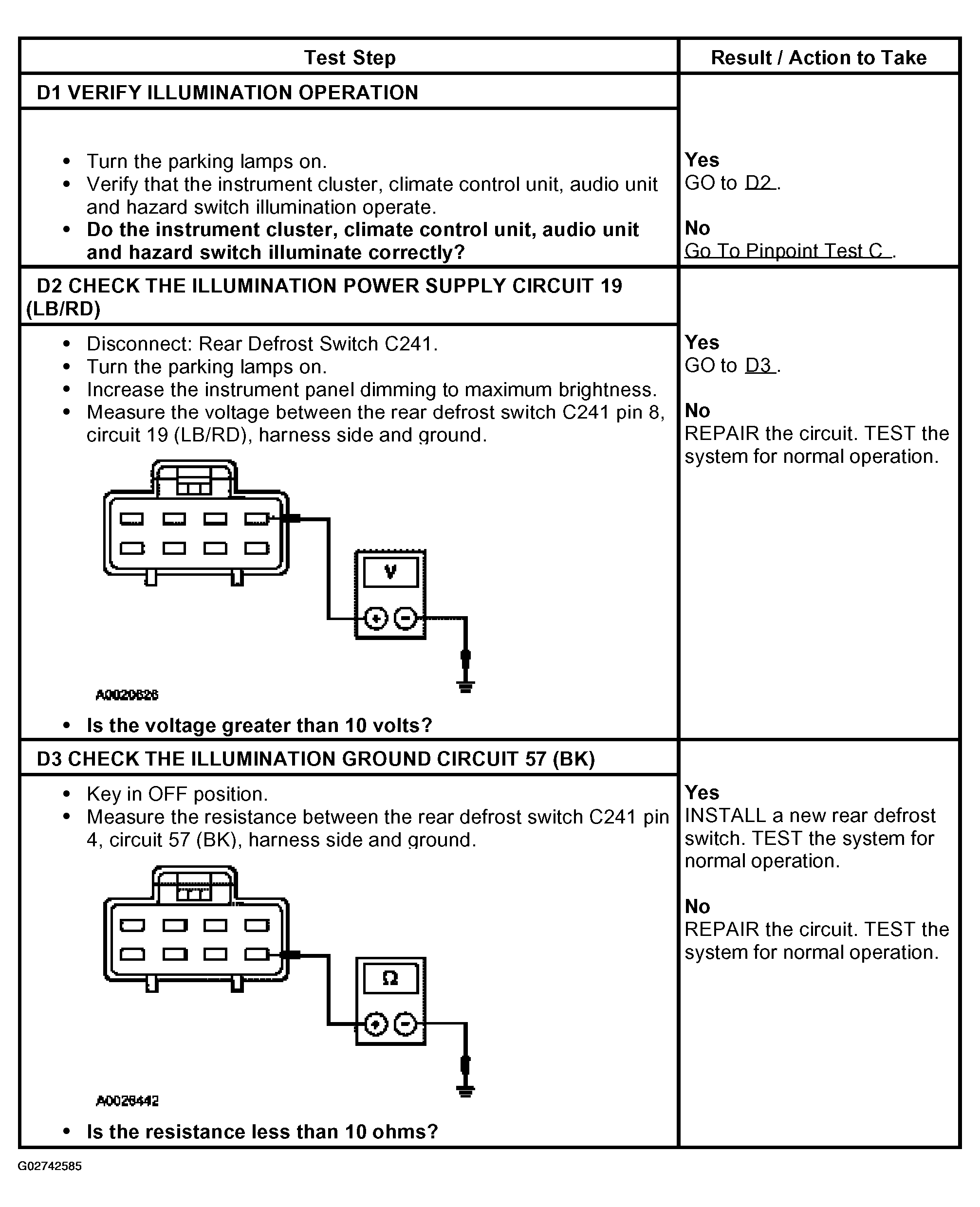

Fig 1: Pinpoint Test D: Rear Defrost Switch Illumination Is Inoperative
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
