Pinpoint Test F: A Single Illumination Source Is Inoperative

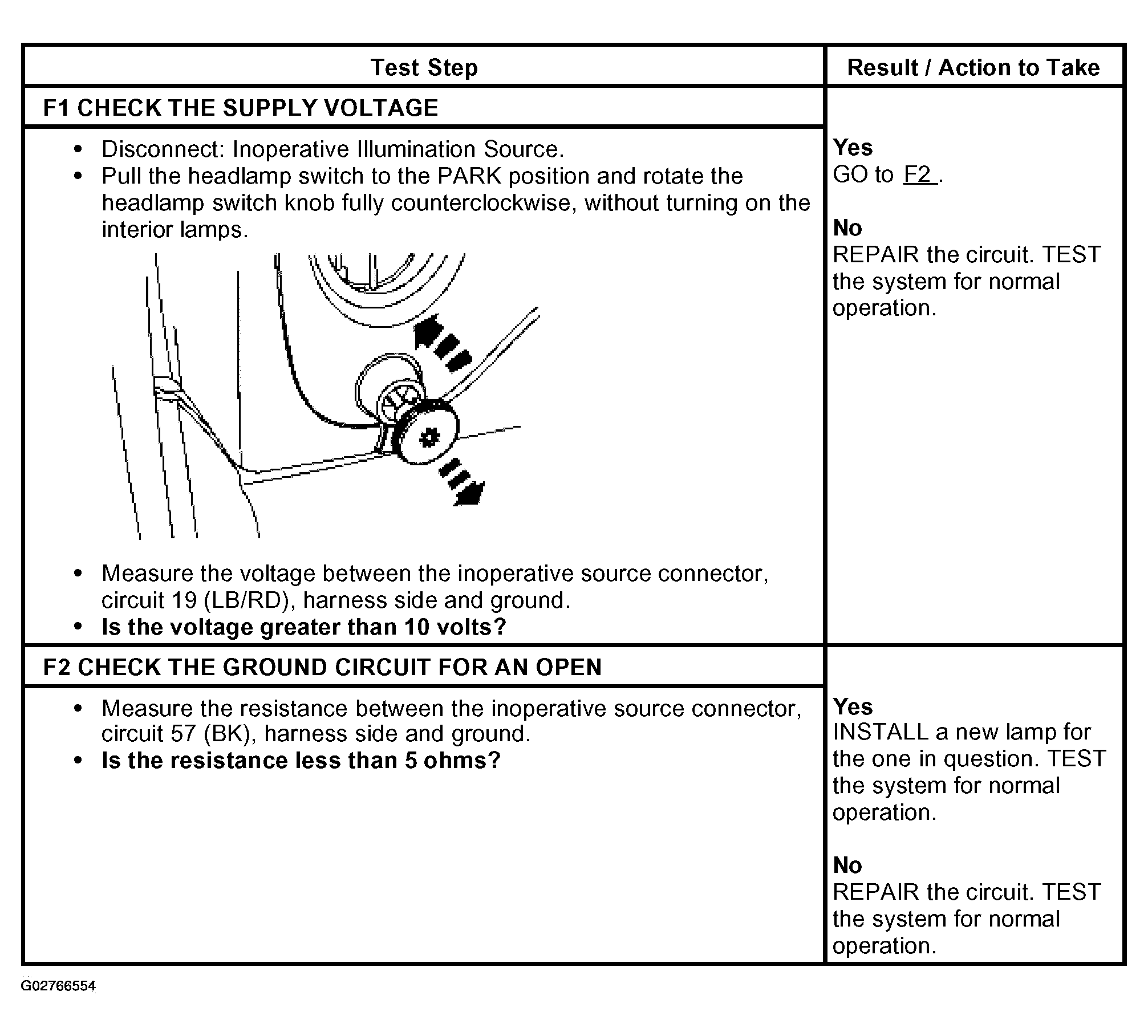

Fig 1: Pinpoint Test F: A Single Illumination Source Is Inoperative (F1-F2)

G02766554

Courtesy of FORD MOTOR CO.
