Pinpoint Test E: The Audio System Illumination Is Inoperative
Pinpoint Test E: The Audio System Illumination Is Inoperative

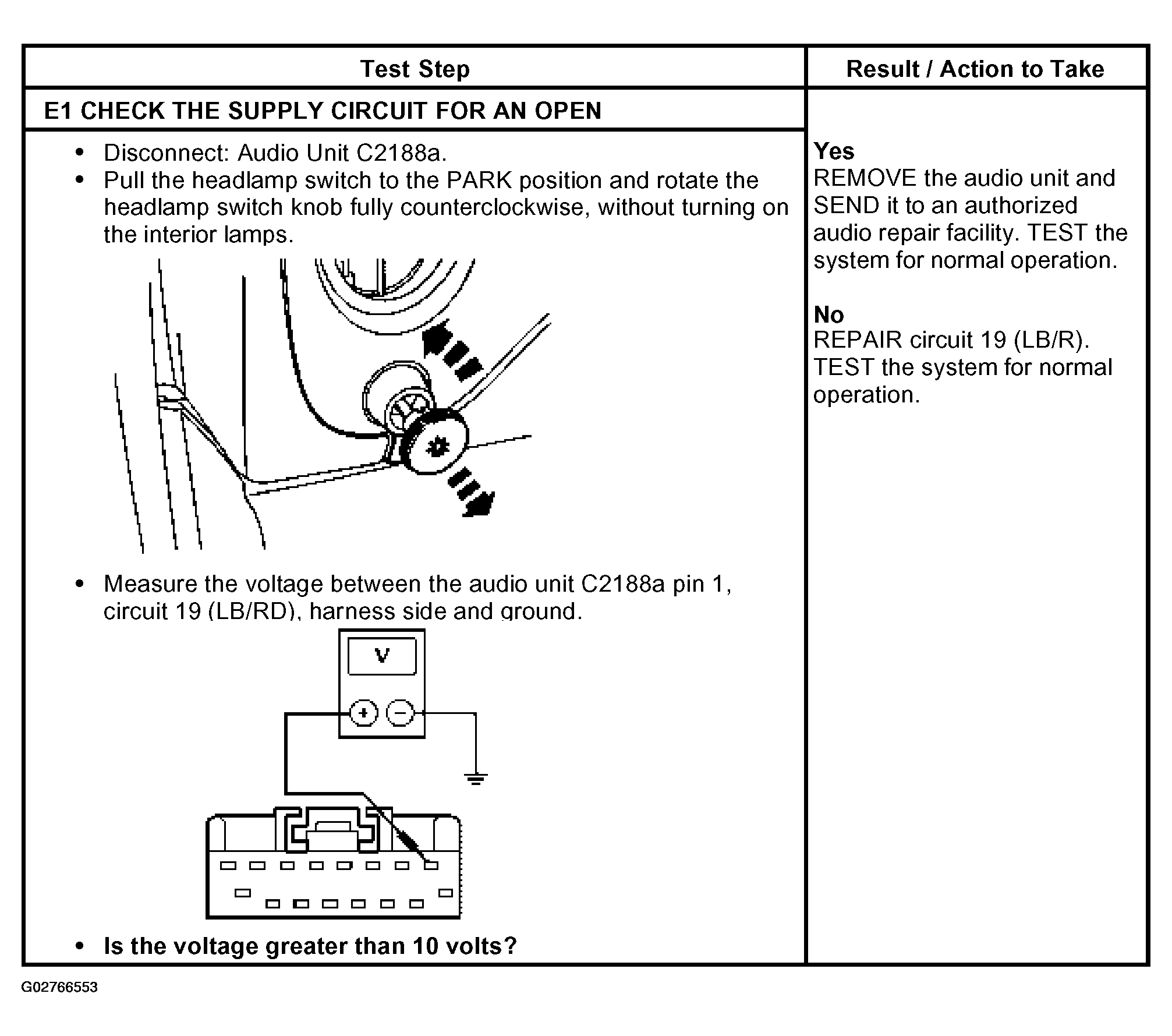

Fig 1: Pinpoint Test E: The Audio System Illumination Is Inoperative (Steps E1)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
