Pinpoint Test C: The Instrument Cluster Illumination Is Inoperative
Pinpoint Test C: The Instrument Cluster Illumination Is Inoperative

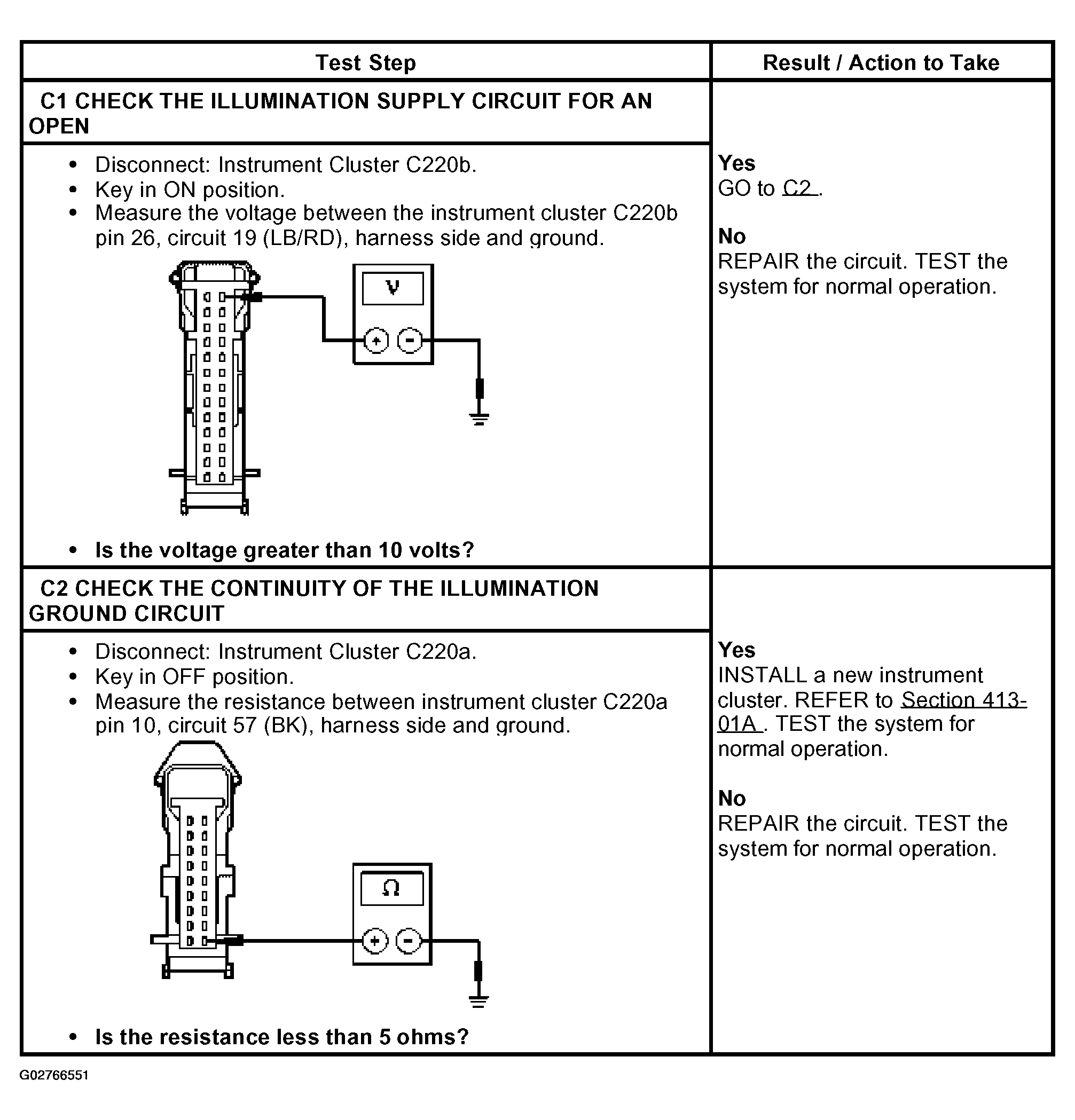

Fig 1: Pinpoint Test C: The Instrument Cluster Illumination Is Inoperative (Steps C1-C2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
