Pinpoint Test A: The Control Illumination Is Inoperative/Always On

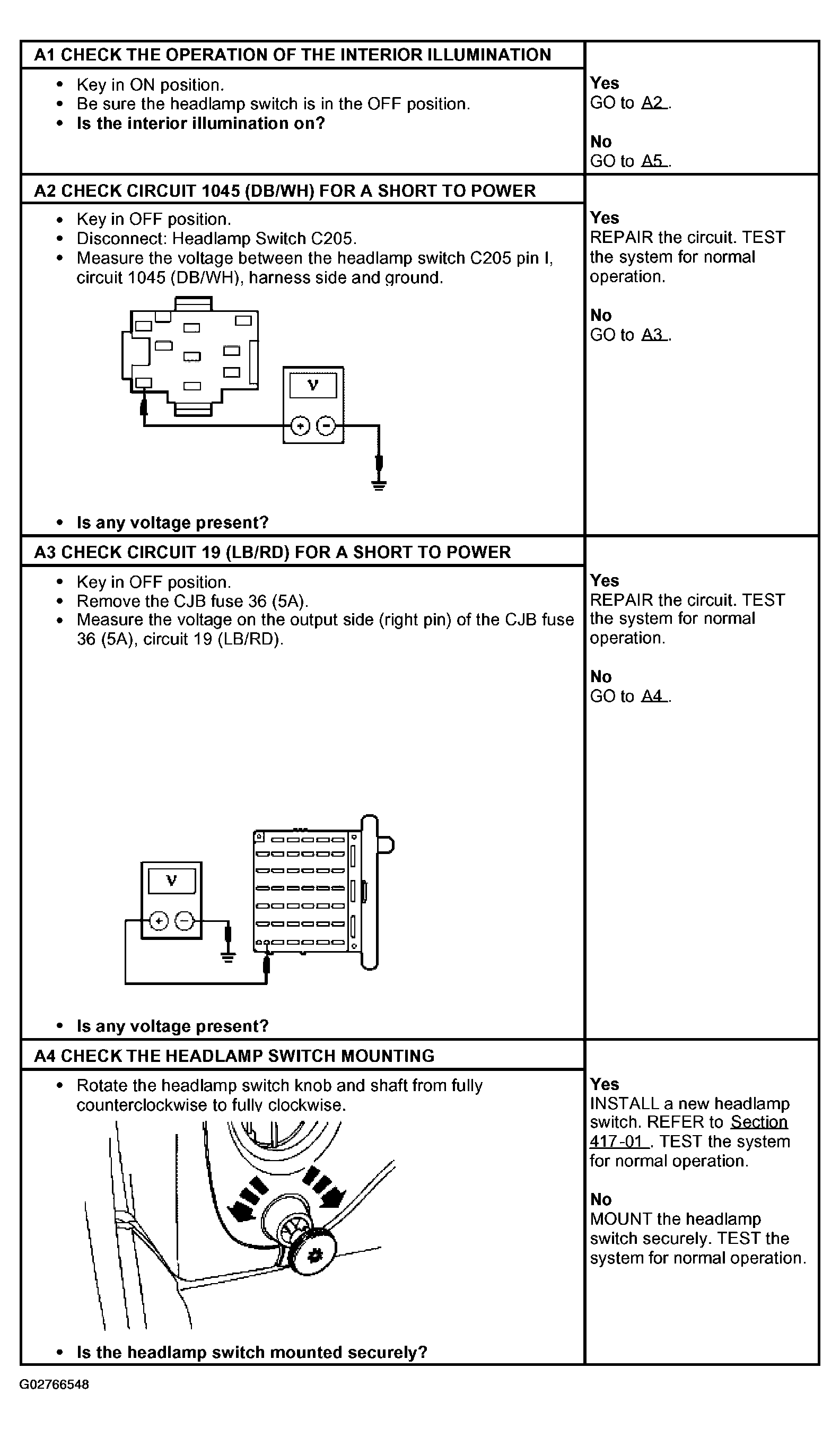

Fig 1: Pinpoint Test A: The Control Illumination Is Inoperative/Always On (Steps A1-A4)
G02766548Courtesy of FORD MOTOR CO.

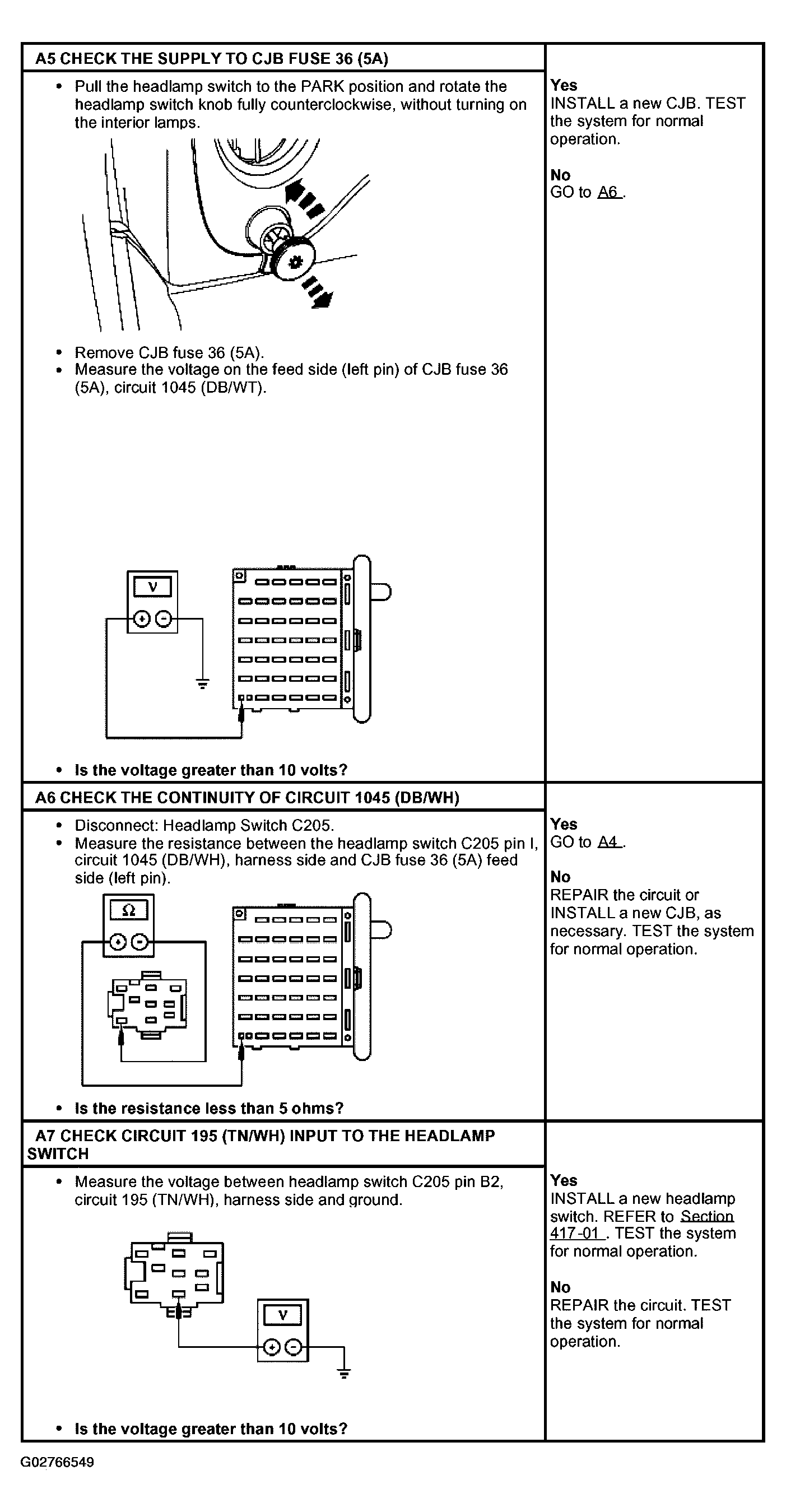

Fig 2: Pinpoint Test A: The Control Illumination Is Inoperative/Always On (Steps A5-A7)
G02766549Courtesy of FORD MOTOR CO.
