Brake Booster - Check Valve: Removal

  1. Remove the check valve.
    1. Compress the clamps.
    2. Disconnect the vacuum hoses and remove the check valve.

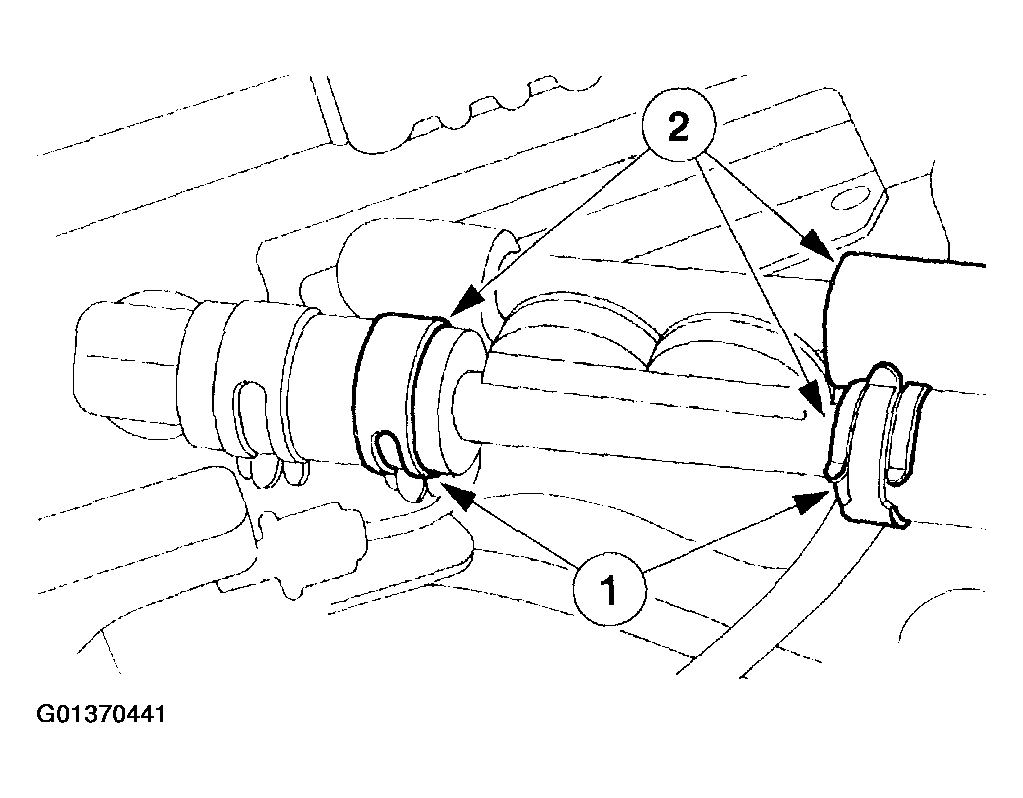

    Fig 1: Removing Check Valve
    G01370441Courtesy of FORD MOTOR CO.
