Rear Brake Caliper & Pads: Installation

To install, reverse removal procedure. Apply high-temperature grease between shims and brake pads. Using an Allen wrench, turn adjustment gear clockwise until brake pads touch brake disc, then loosen 1/3 turn. Fill and bleed brake system (if necessary). See BLEEDING BRAKE SYSTEM .

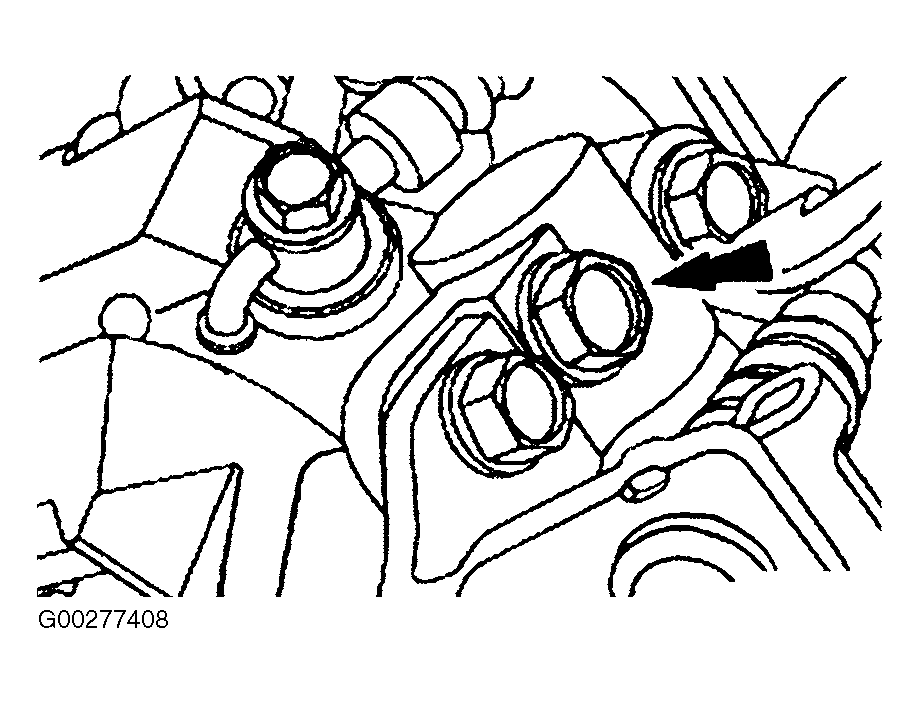

Fig 1: Removing Screw Plug

Courtesy of FORD MOTOR CO.

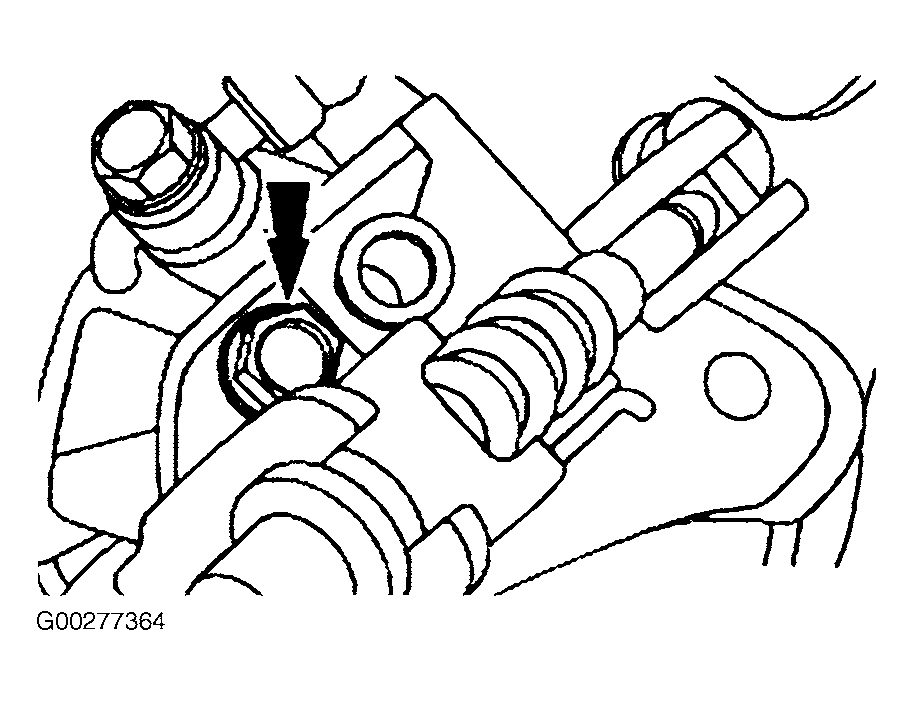

Fig 2: Identifying Brake Adjuster Screw Rotation

Courtesy of FORD MOTOR CO.

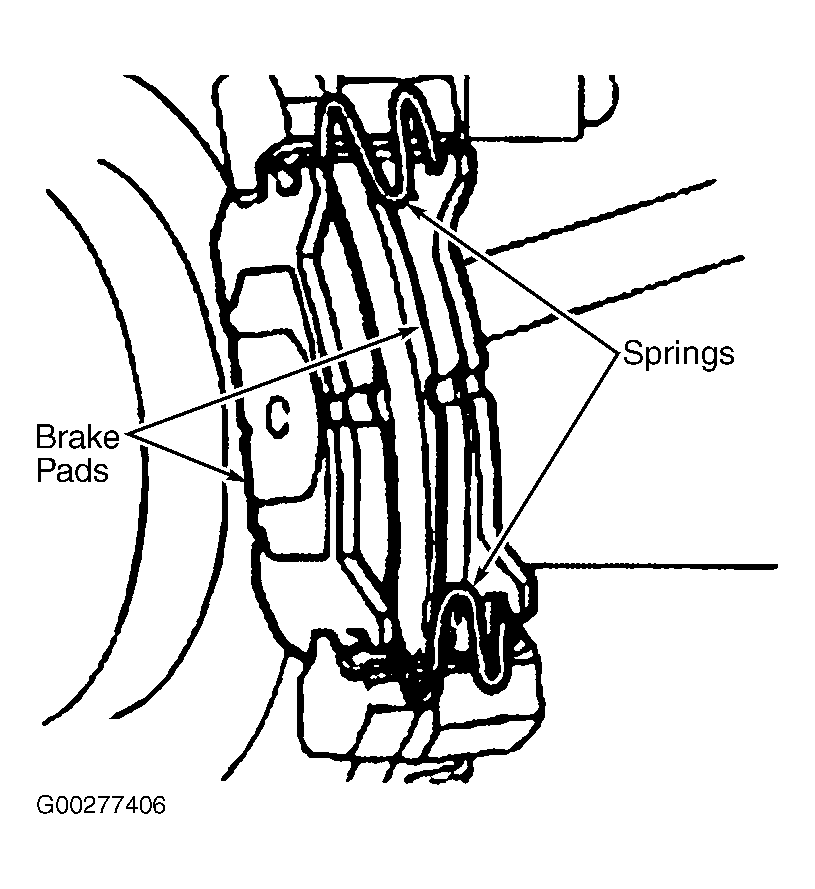

Fig 3: Removing Brake Pads

Courtesy of FORD MOTOR CO.

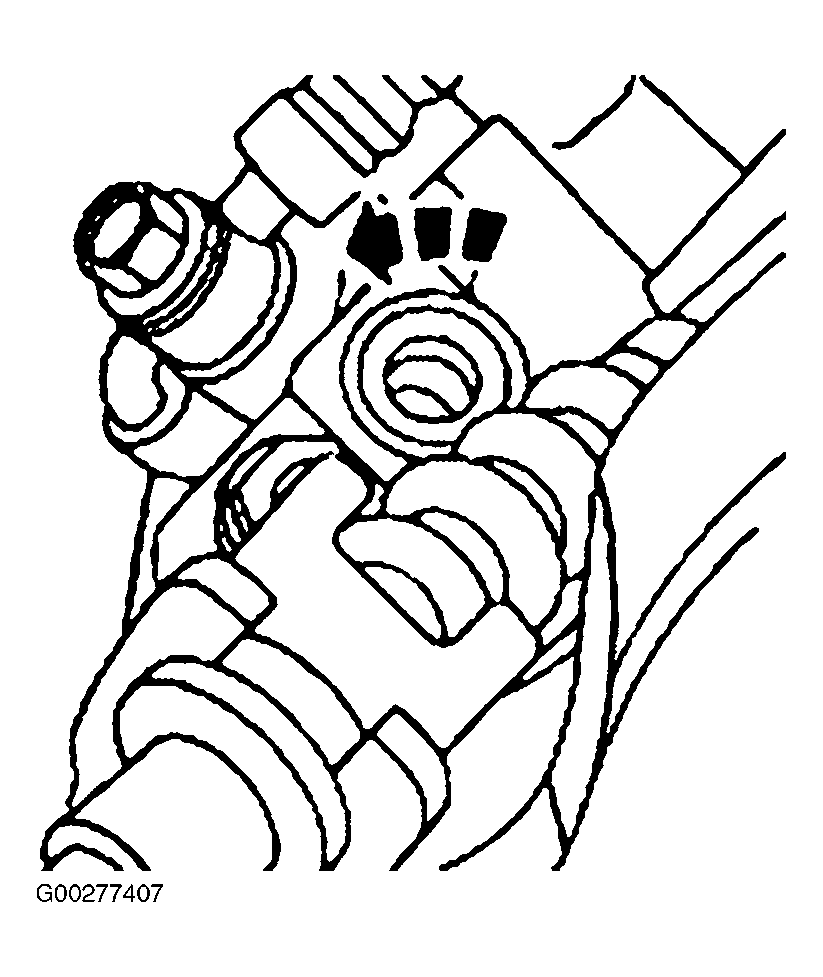

Fig 4: Removing Parking Brake Bracket

Courtesy of FORD MOTOR CO.
