Parking Brake Switch: Removal

  1. Remove the console.
  2. Disconnect the parking brake switch electrical connector. See Figure.
  3. Remove the parking brake switch. See Fig 1.

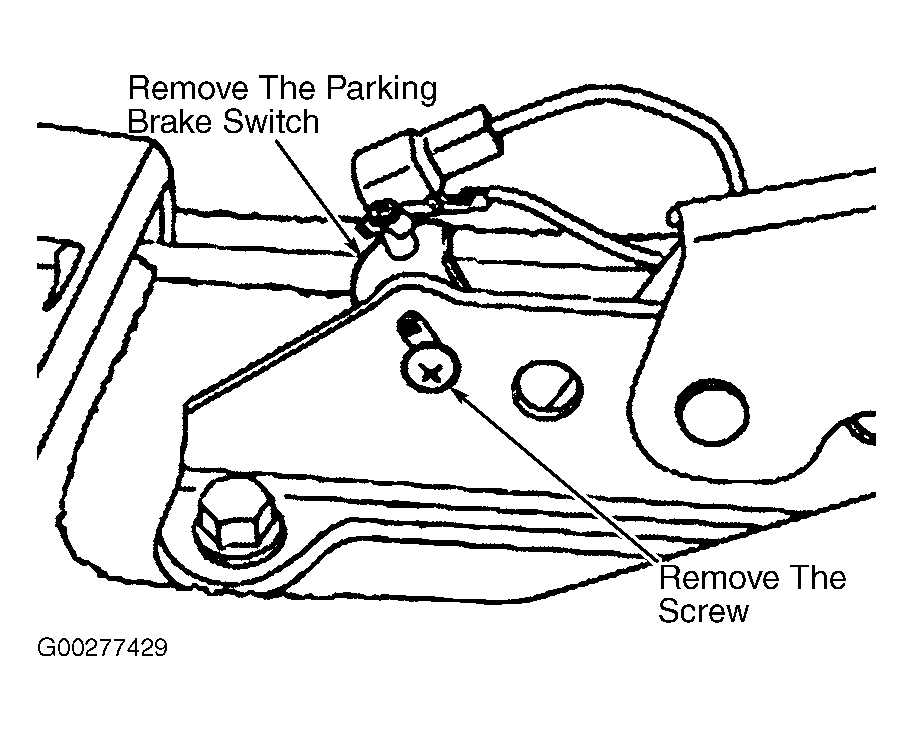

Fig 1: Removing Parking Brake Switch
G00277429Courtesy of FORD MOTOR CO.
