Parking Brake Control: Removal

  1. Remove the console.
  2. Block the wheels firmly.
  3. Release the parking brake control. See Fig 1.
  4. Disconnect the parking brake switch electrical connector. See Fig 2.
  5. Remove the adjusting nut. See Figure.
  6. Remove the parking brake control. See Fig 3.
Fig 1: Removing Parking Brake Control (1 Of 3)
G00277426Courtesy of FORD MOTOR CO.
Fig 2: Removing Parking Brake Control (2 Of 3)
G00277427Courtesy of FORD MOTOR CO.

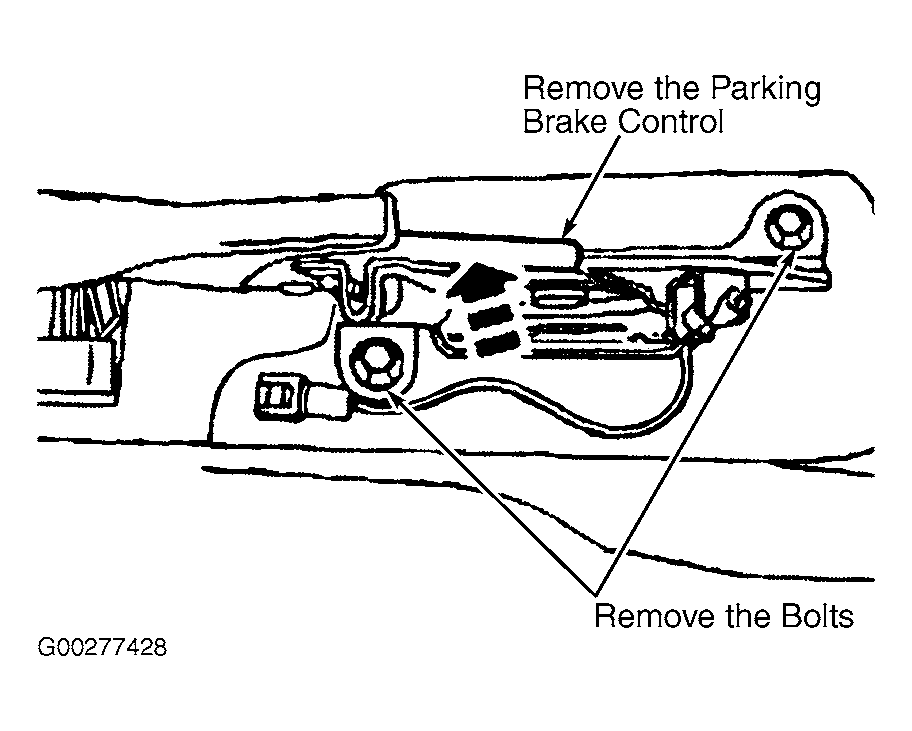

Fig 3: Removing Parking Brake Control (3 Of 3)
G00277428Courtesy of FORD MOTOR CO.
