Removal (Front)

  1. Remove the parking brake control. See PARKING BRAKE CONTROL .
  2. Raise and support the vehicle.
  3. Remove the muffler shield. See Fig 1.
  4. Disconnect the parking brake return spring and the left and right parking brake rear cable and conduits from the front parking brake cable and conduit. See Fig 2.
  5. Remove the front parking brake cable and conduit from the front floor pan. See Fig 3.

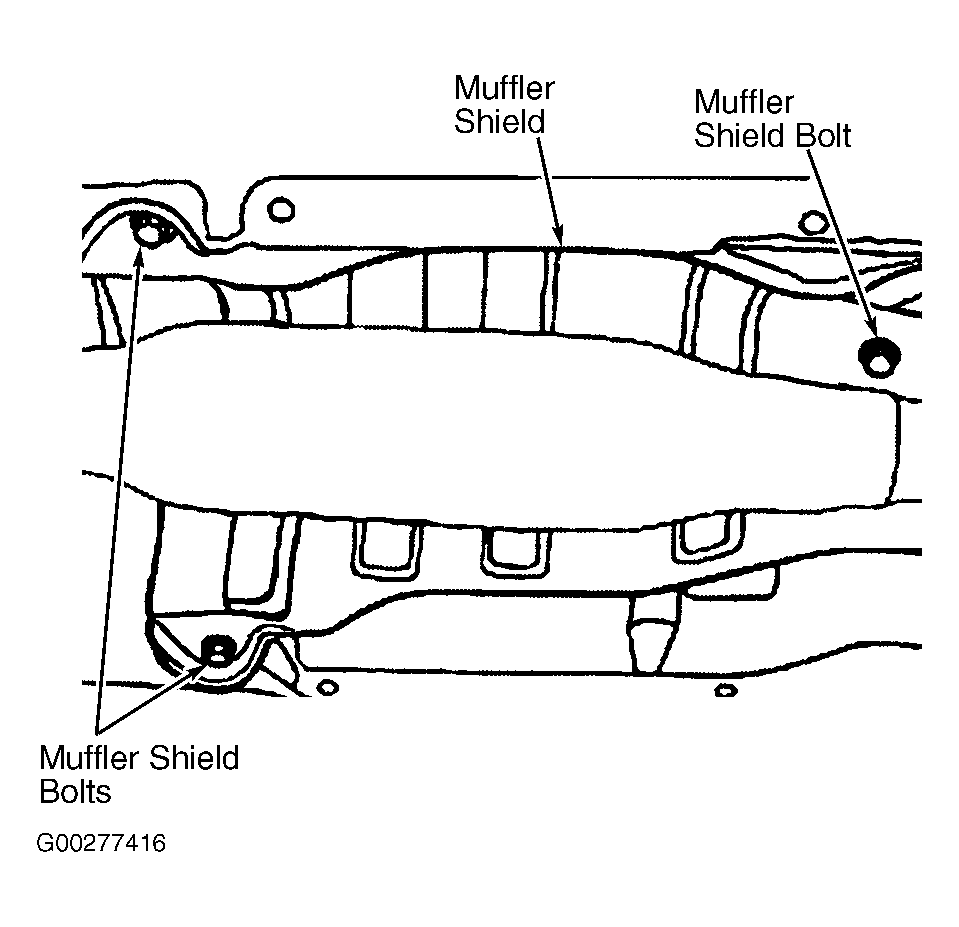

Fig 1: Locating Muffler Shield Bolts
G00277416Courtesy of FORD MOTOR CO.

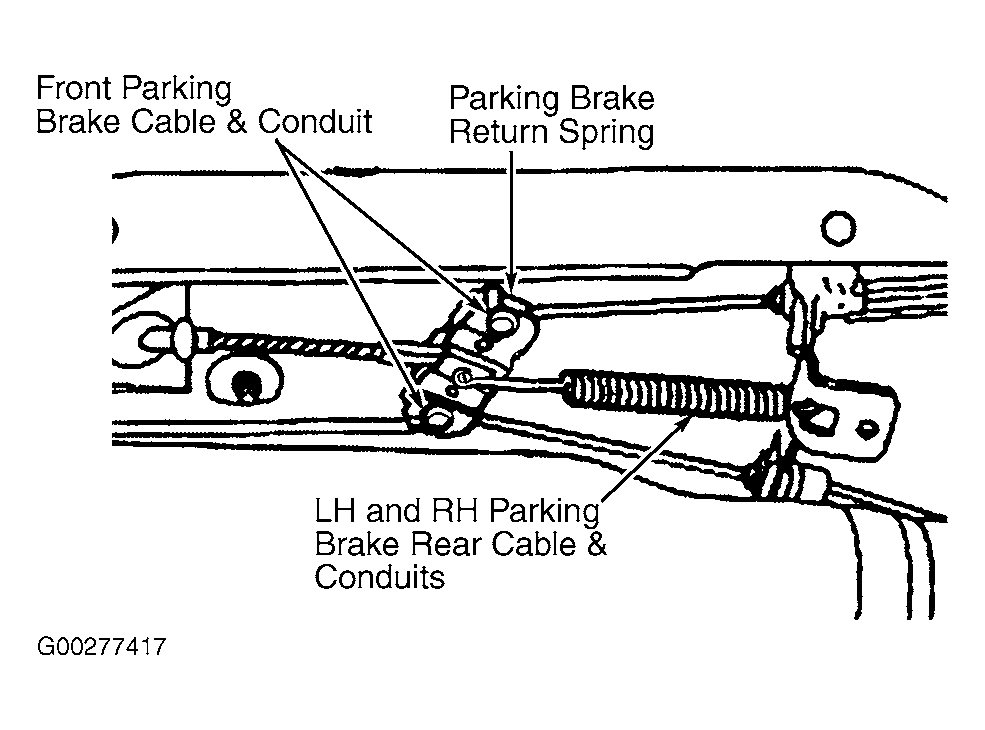

Fig 2: Locating Parking Brake Components
G00277417Courtesy of FORD MOTOR CO.

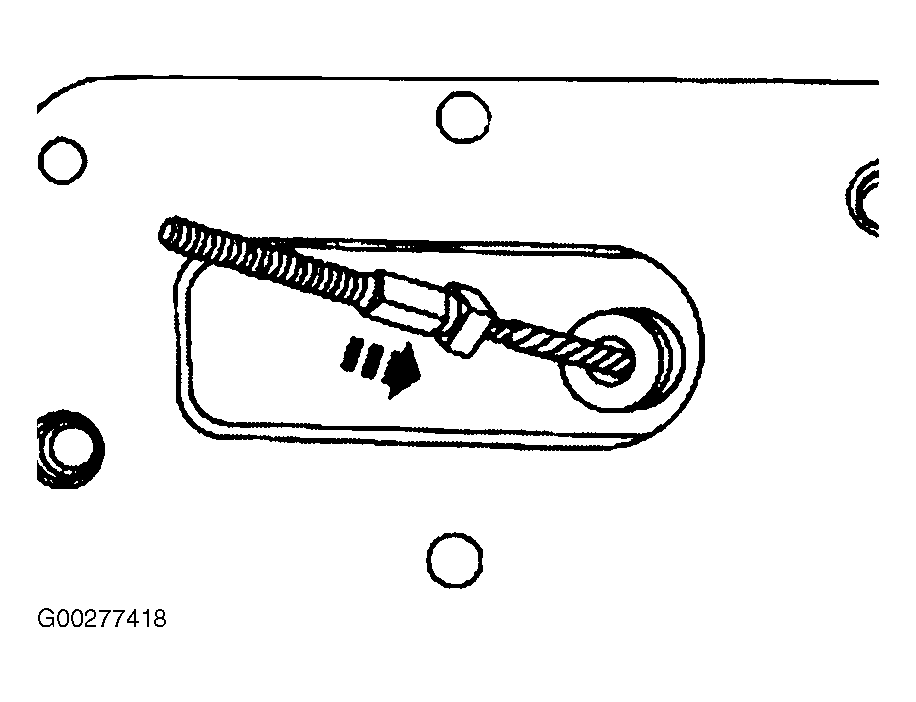

Fig 3: Removing Front Parking Brake Cable
G00277418Courtesy of FORD MOTOR CO.
