Front Brake Caliper & Pads: Installation

Compress piston until it is fully seated into caliper bore. Install caliper and tighten mounting bolts to specification. See TORQUE SPECIFICATIONS . Using 2 NEW copper washers, install brake hose. Apply a light coat of high-temperature grease between anti-rattle shims. Install brake pads and shims. Install springs and brake pad pins. To complete installation, reverse removal procedure. Refill and bleed system. See BLEEDING BRAKE SYSTEM .

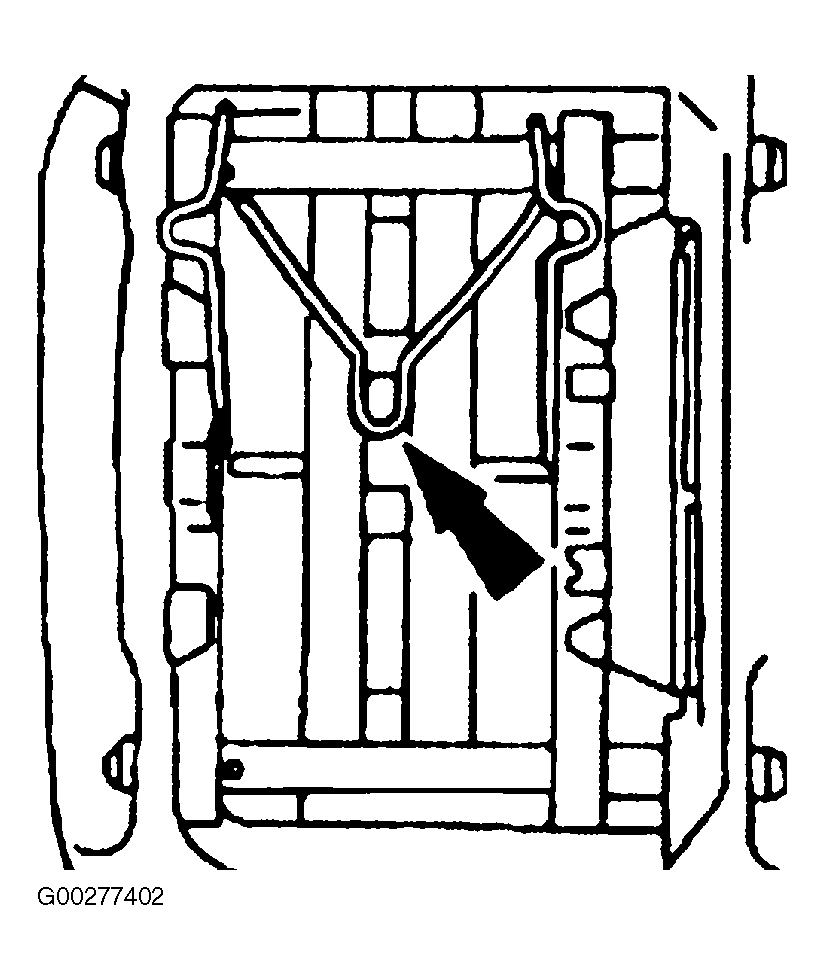

Fig 1: Locating "W" Spring

Courtesy of FORD MOTOR CO.

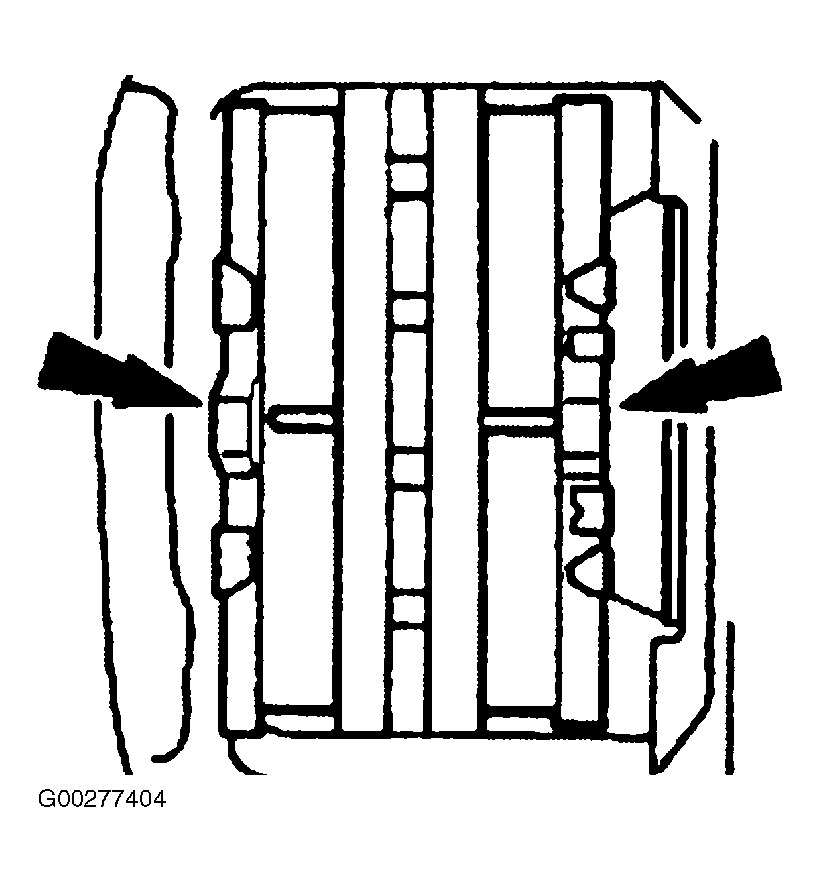

Fig 2: Locating "M" Spring

Courtesy of FORD MOTOR CO.

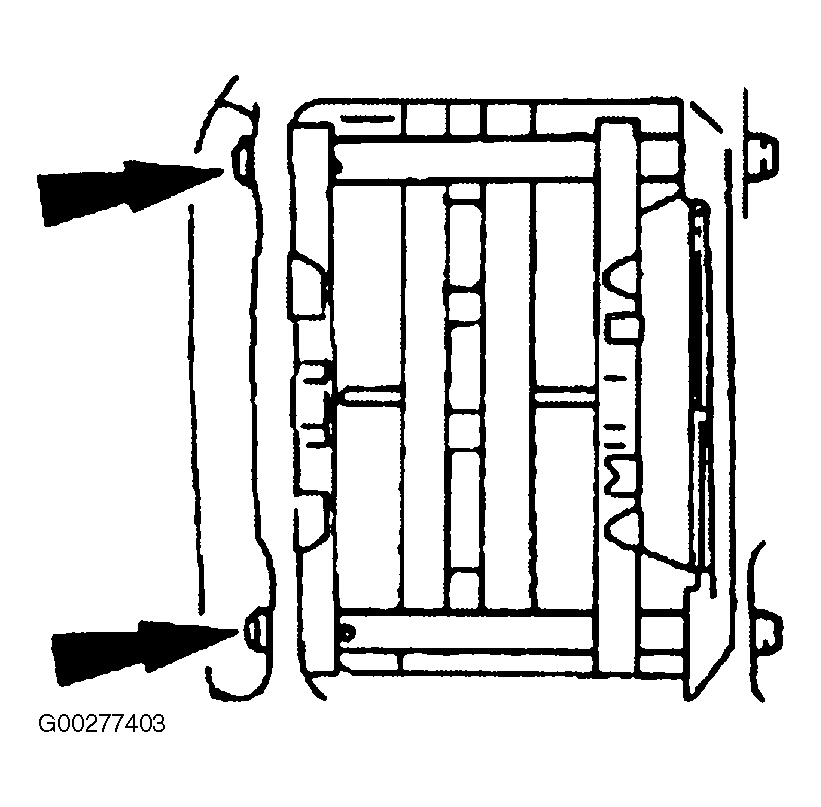

Fig 3: Locating Caliper Pins

Courtesy of FORD MOTOR CO.

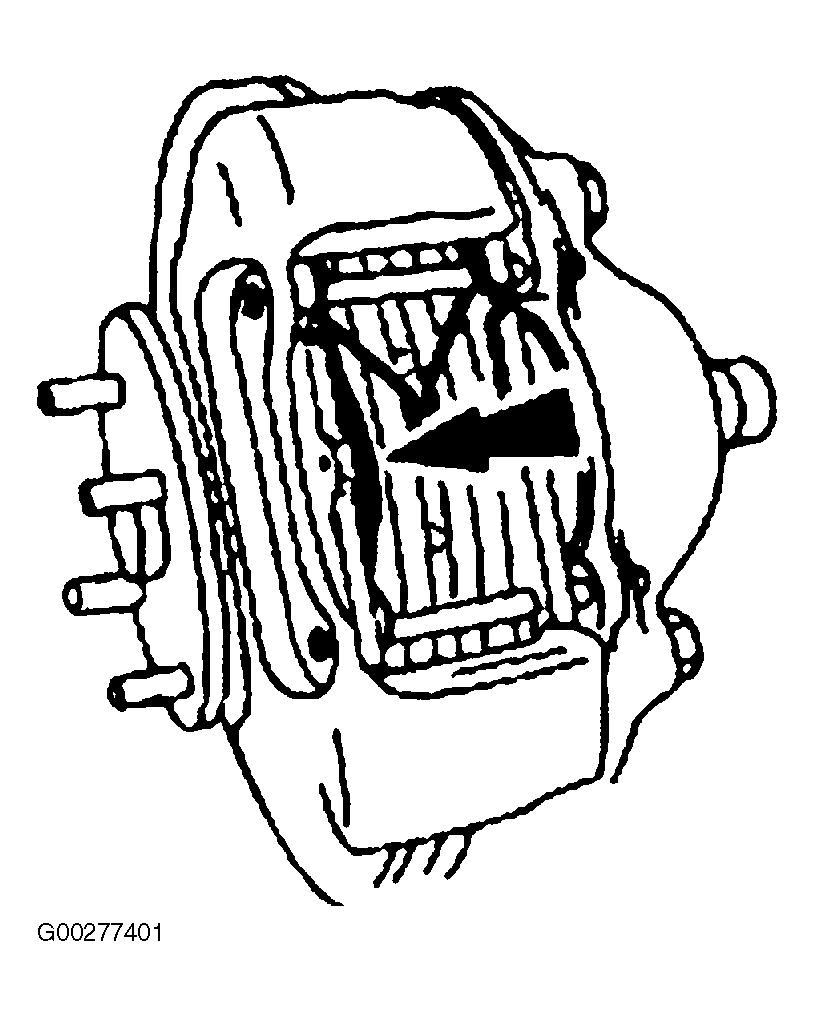

Fig 4: Locating Brake Shims

Courtesy of FORD MOTOR CO.
