Brake Pedal Free Play

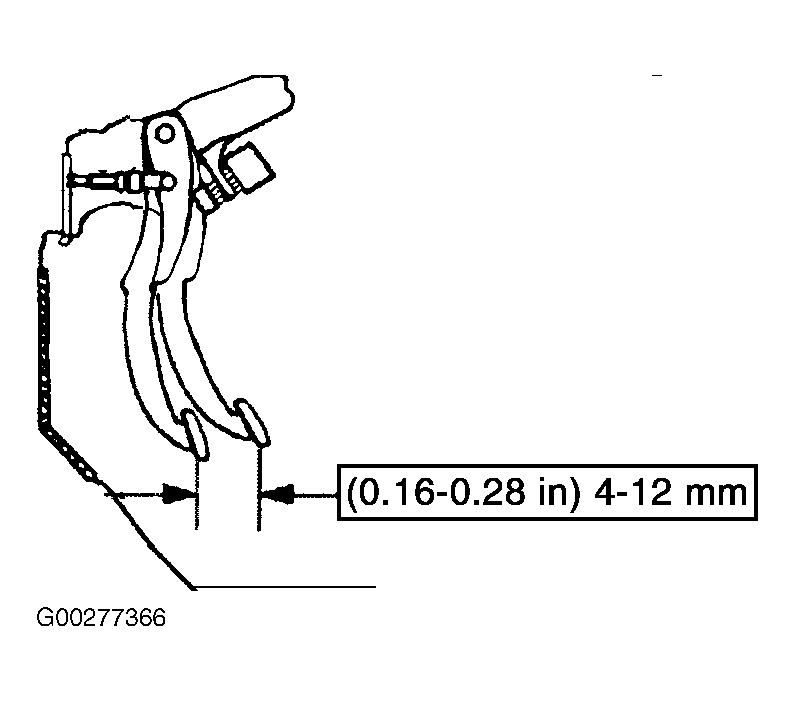

- Release vacuum from power brake booster by depressing brake pedal several times. Gently depress brake pedal by hand, and check brake pedal free play. If free play is not within specification, adjust clearance. See BRAKE PEDAL FREE PLAY SPECIFICATIONS table.

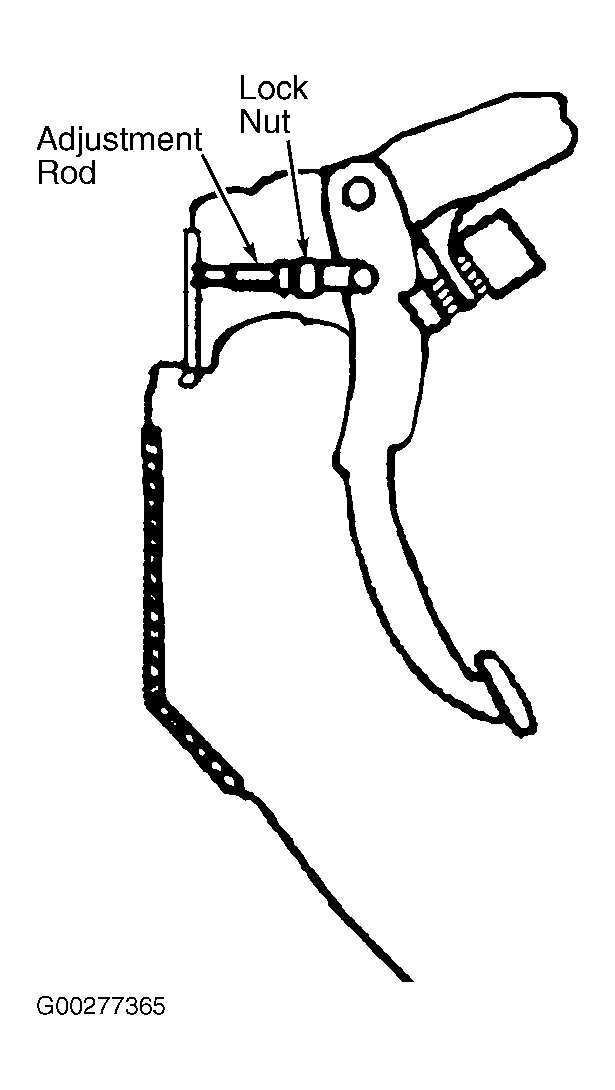

- To adjust free play, loosen clevis lock nut on brake pedal push rod. Turn clevis until free play is within specification. Tighten clevis lock nut. See Fig 1 - Fig 2 .
BRAKE PEDAL FREE PLAY SPECIFICATIONS
| Application | In. (mm) |
|---|---|
| Escort | .16-.28 (4.1-7.1) |
