Pinpoint Test A: The Instrument Panel Illumination Does Not Dim

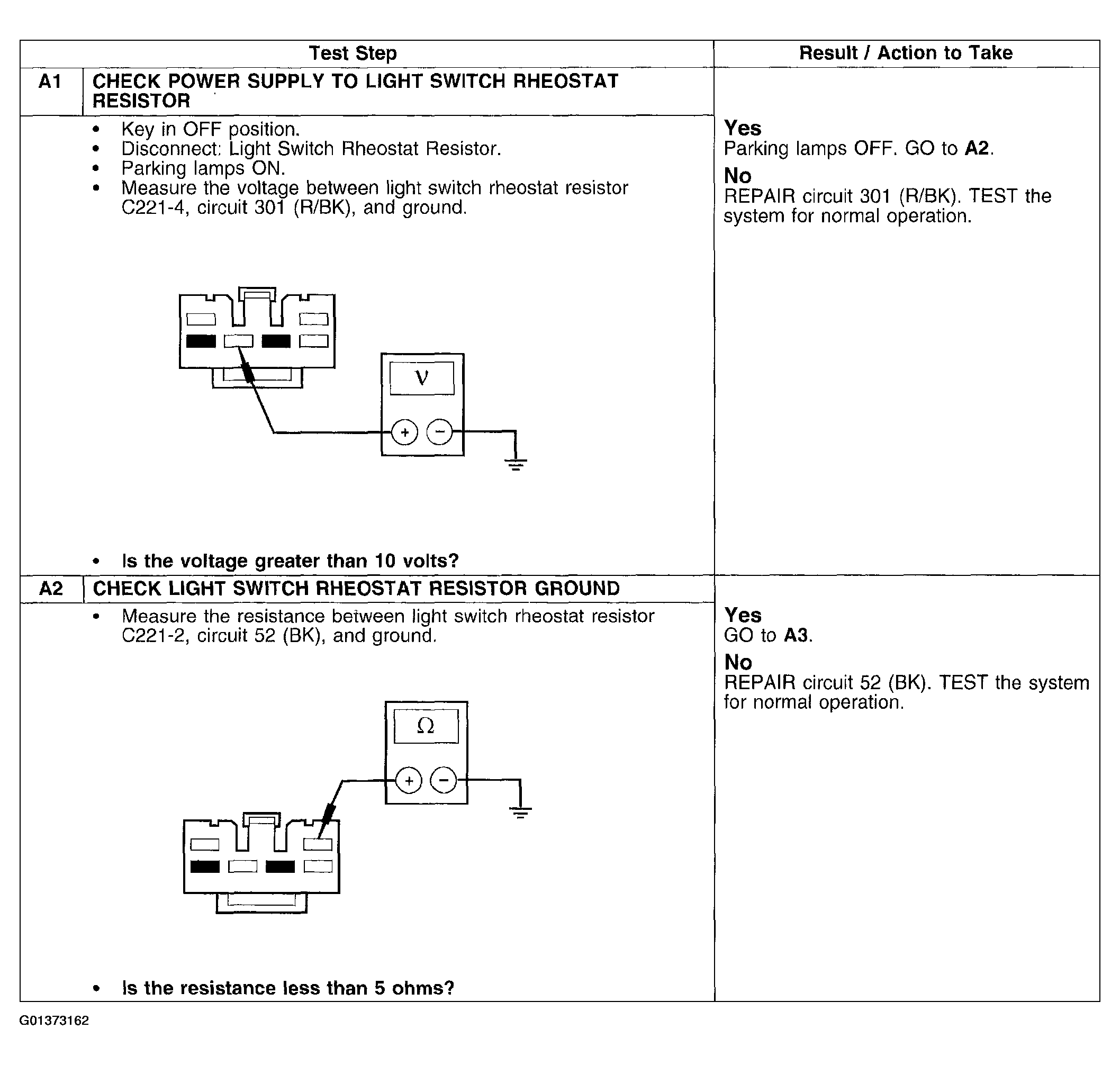

Fig 1: Pinpoint Test A: Instrument Panel Illumination Does Not Dim (A1-A2)
G01373162Courtesy of FORD MOTOR CO.

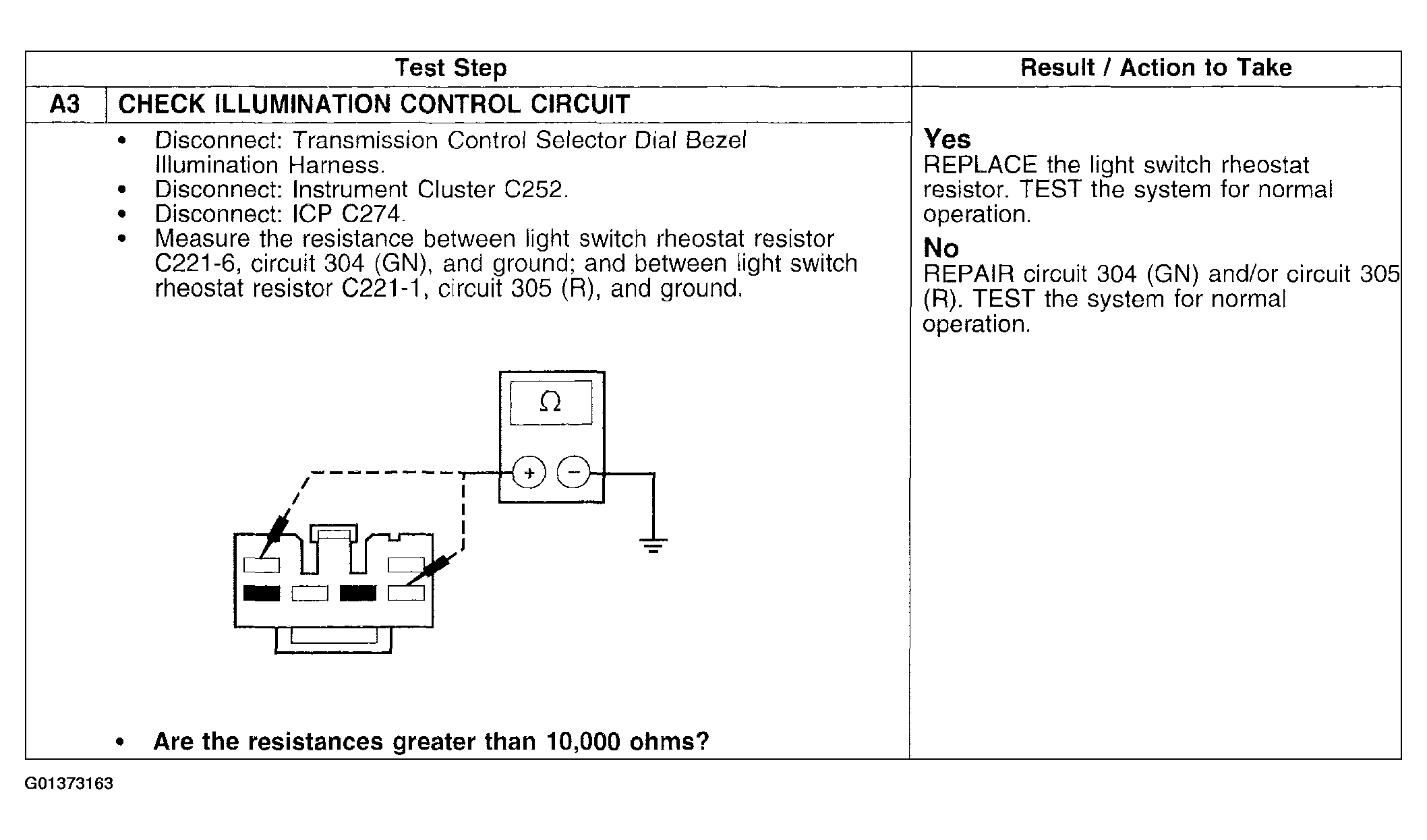

Fig 2: Pinpoint Test A: Instrument Panel Illumination Does Not Dim (A3)
G01373163Courtesy of FORD MOTOR CO.
