Shift Concerns: No 1st Gear, Engages In Higher Gear

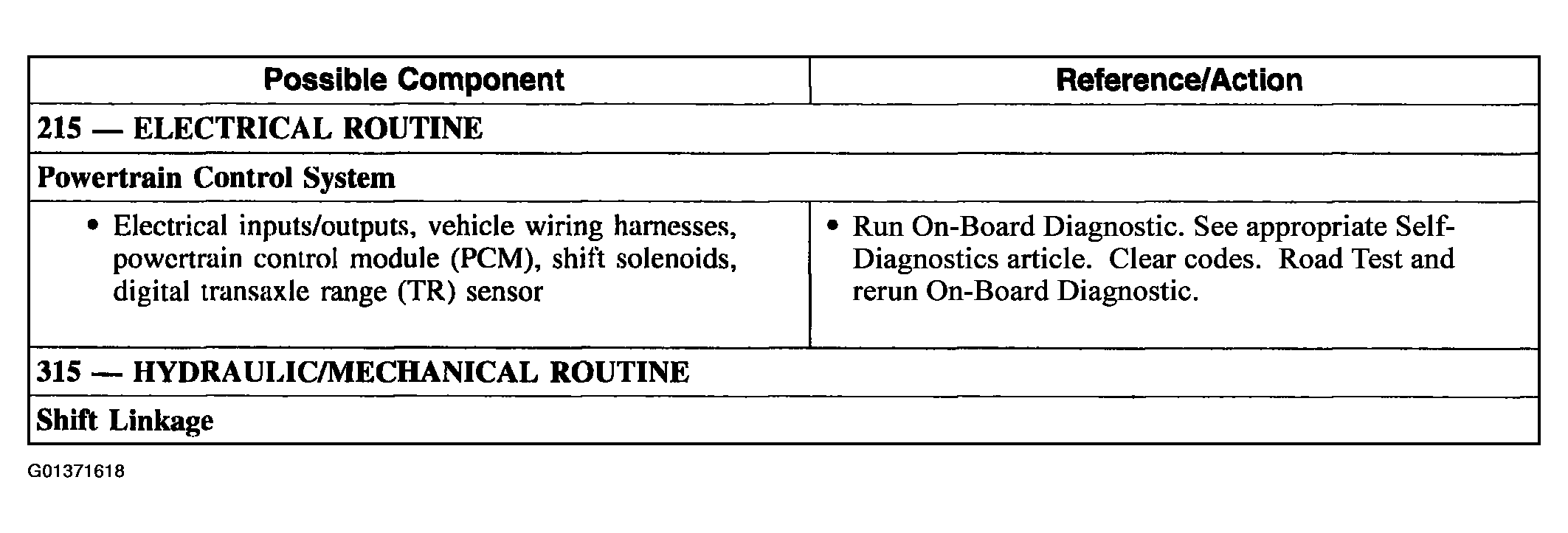

Fig 1: Displaying Shift Concerns: No 1st Gear, Engages In Higher Gear (Routines 215 & 315)
G01371618Courtesy of FORD MOTOR CO.

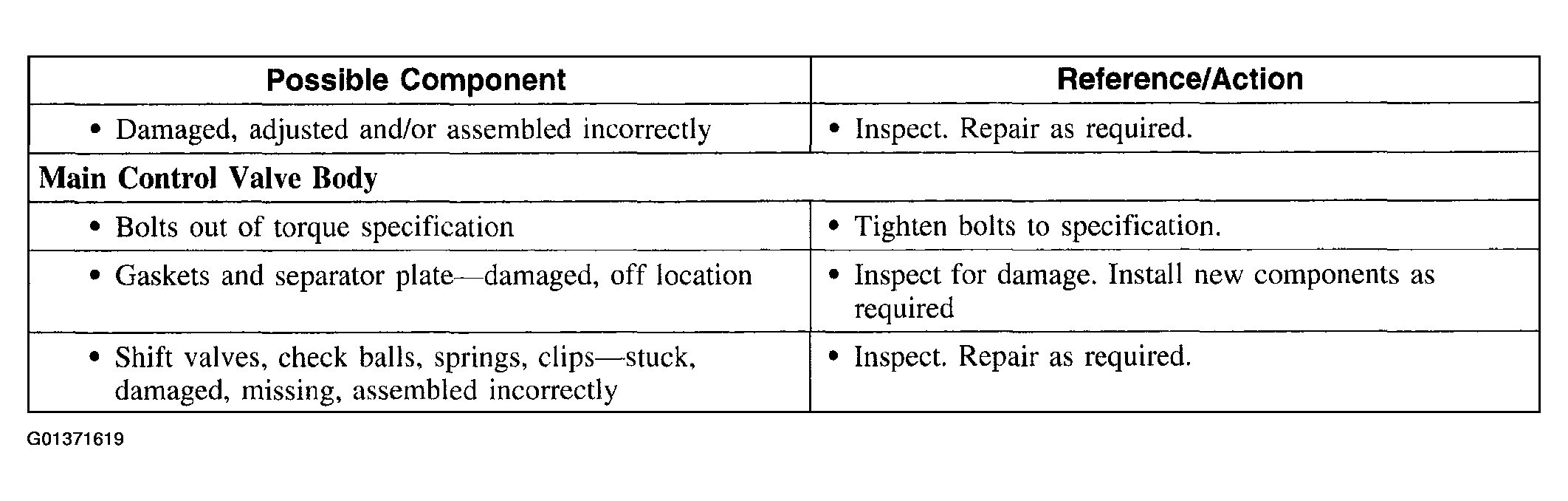

Fig 2: Displaying Shift Concerns: No 1st Gear, Engages In Higher Gear (Routine 315)
G01371619Courtesy of FORD MOTOR CO.
