Removal And Installation: Reservoir: Removal

WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.

Disconnect the battery ground cable (14301).

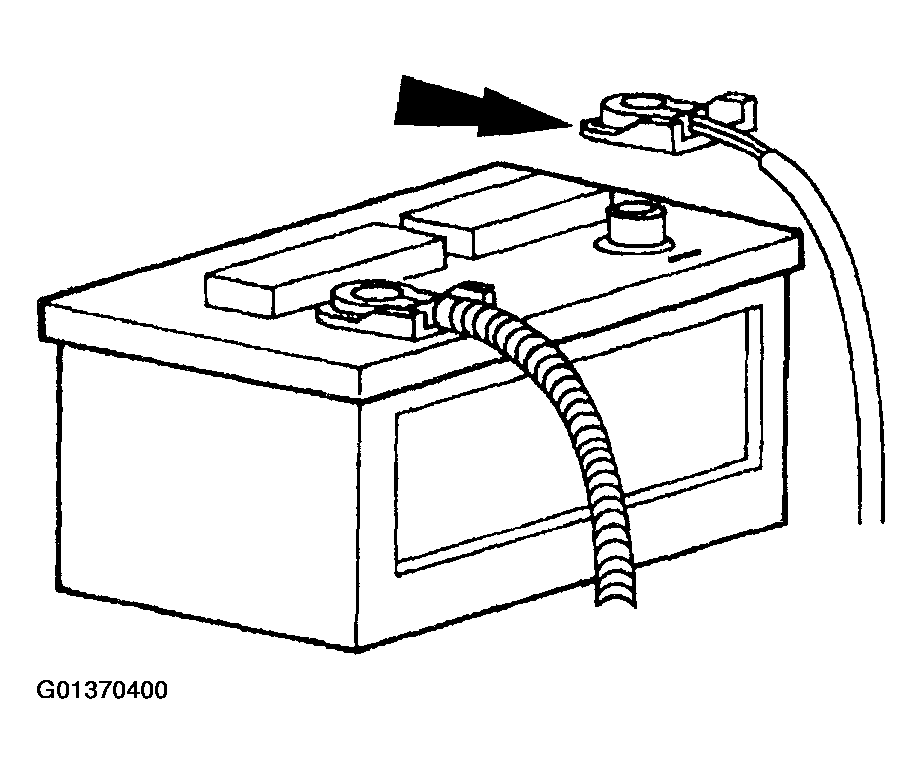

Fig 1: Disconnecting Battery Ground Cable
Courtesy of FORD MOTOR CO.
Disconnect the brake fluid level warning switch electrical connector.

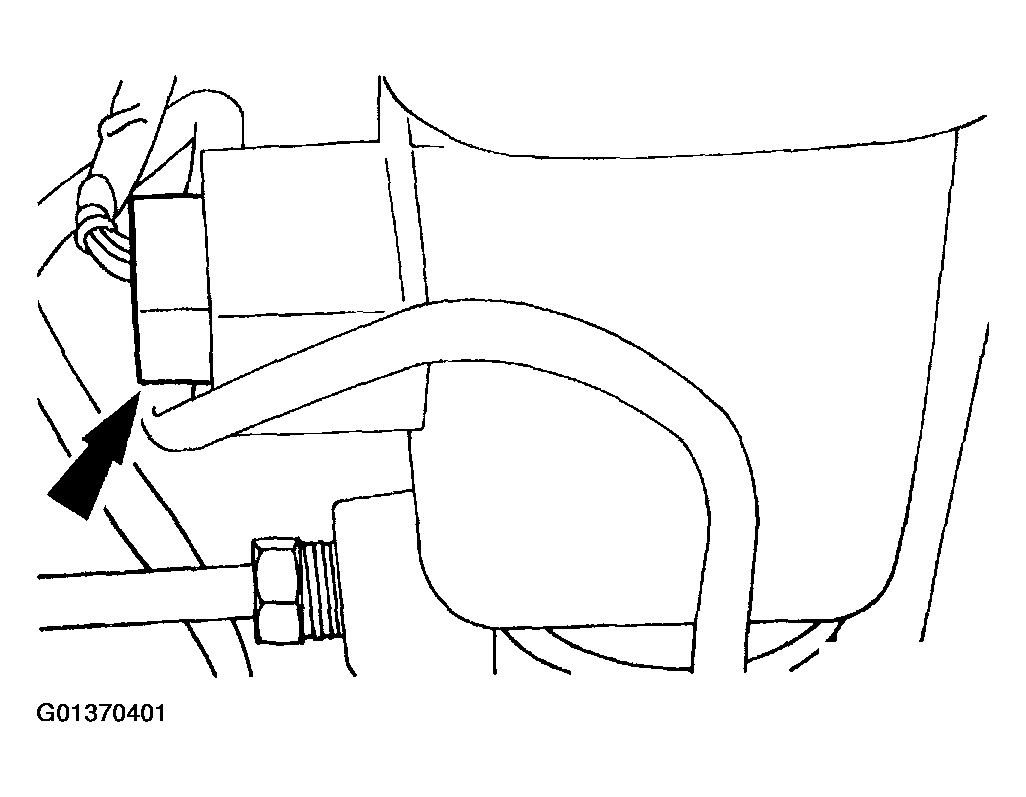

Fig 2: Disconnecting Brake Fluid Level Warning Switch
Courtesy of FORD MOTOR CO.
Remove the brake master cylinder reservoir cap.

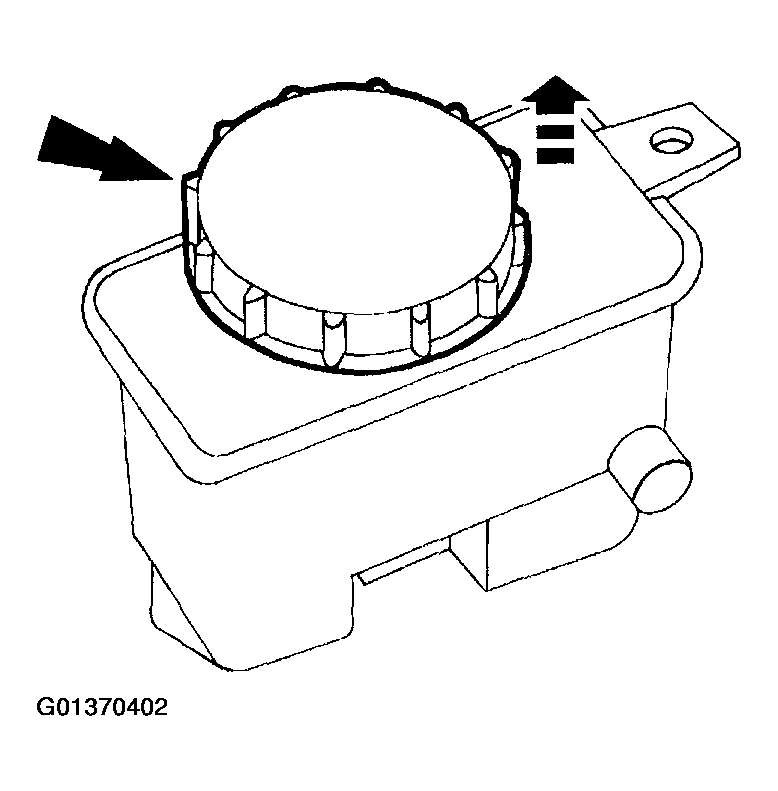

Fig 3: Removing Brake Reservoir Cap
Courtesy of FORD MOTOR CO.

NOTE: Use a suitable suction device to drain the brake master cylinder reservoir (2K478).

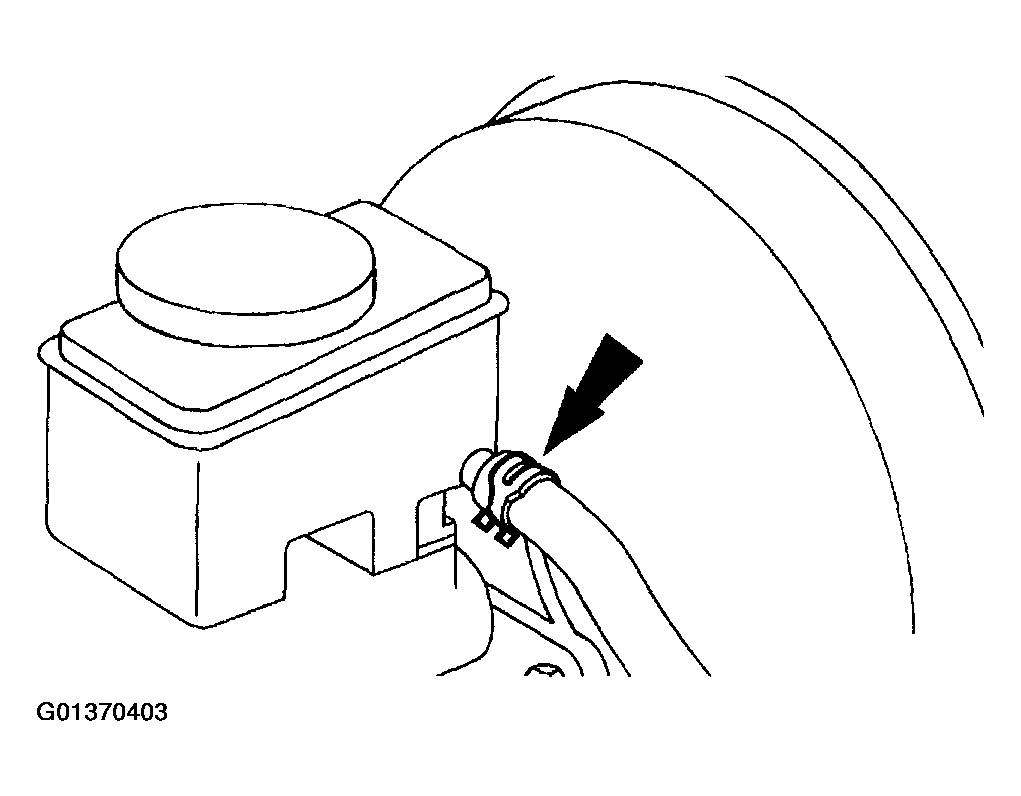

Fig 4: Disconnecting Hydraulic Clutch Line From Brake Master Cylinder Reservoir

Courtesy of FORD MOTOR CO.

On M/T vehicles, disconnect the hydraulic clutch line from the brake master cylinder reservoir.
Carefully pry up on the brake master cylinder reservoir to remove.

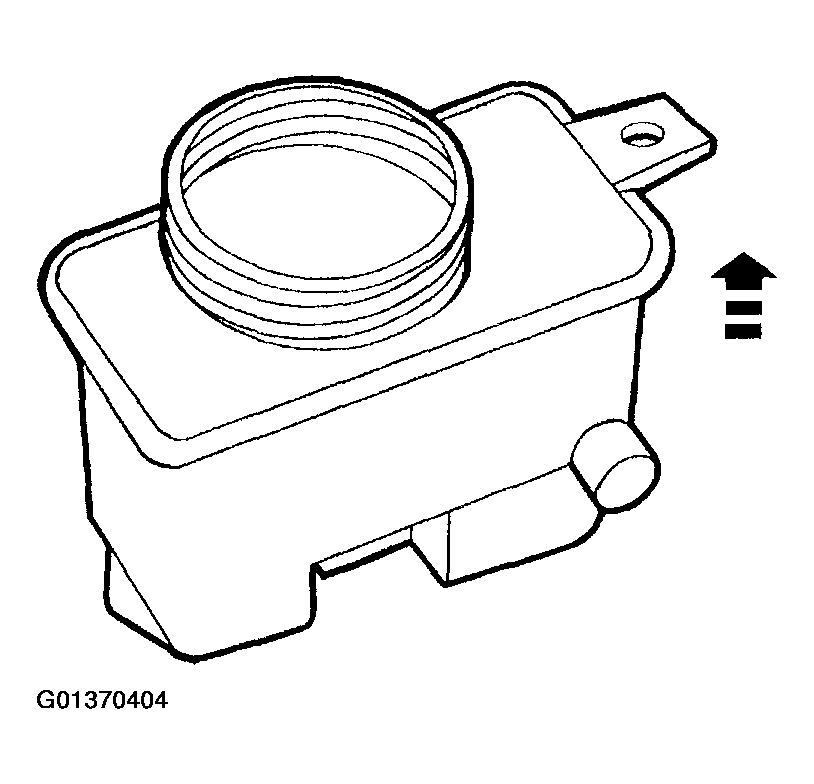

Fig 5: Removing Brake Master Cylinder Reservoir
Courtesy of FORD MOTOR CO.
