Pedal And Bracket: Removal

NOTE: A/T vehicle shown; M/T vehicle similar.

Remove the battery tray; refer to BATTERY TRAY .
Remove the clutch master cylinder cover plate nut.

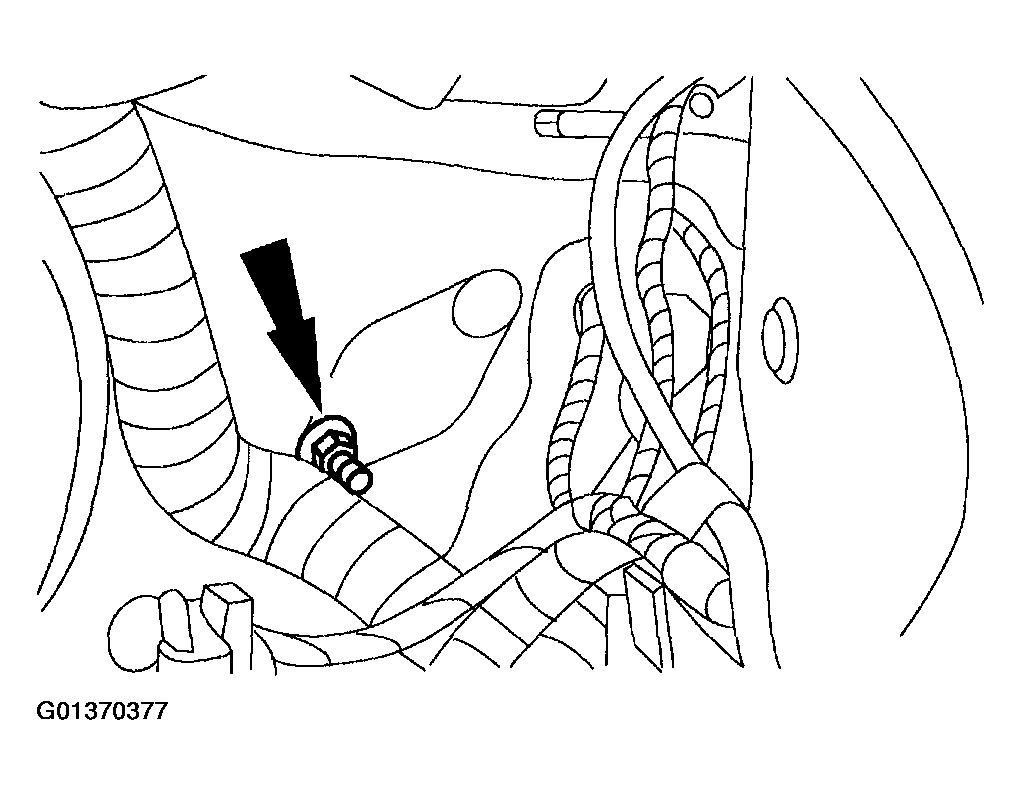

Fig 1: Locating Nut For Removal
Courtesy of FORD MOTOR CO.
Position the hood latch control handle and cable out of the way.
1. Loosen the nut.
2. Remove the hood latch control handle and cable and position out of the way.

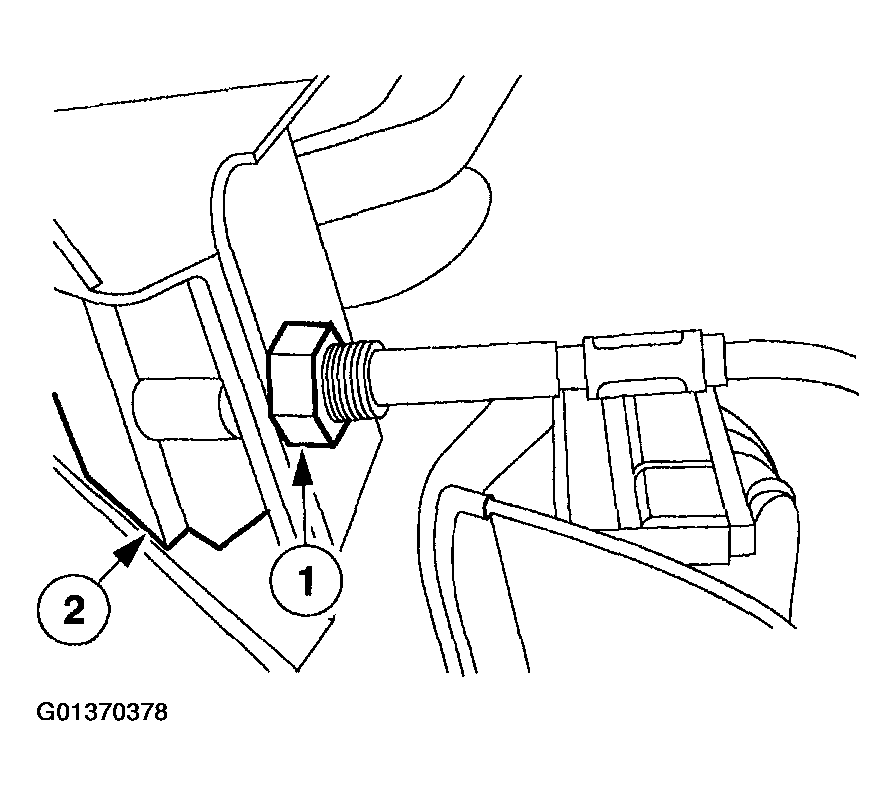

Fig 2: Removing Hood Latch Control Handle
Courtesy of FORD MOTOR CO.
Remove the screw and release the instrument panel steering column cover.

Fig 3: Releasing Instrument Panel Steering Column Cover
Courtesy of FORD MOTOR CO.

NOTE: Coupe shown, Sedan similar.

Fig 4: Disconnecting Light Switch Rheostat Resistor

Courtesy of FORD MOTOR CO.

Disconnect the light switch rheostat resistor electrical connector and remove the instrument panel steering column cover.
Disconnect the brake pedal position (BPP) switch electrical connector and the speed control deactivate switch electrical connector.

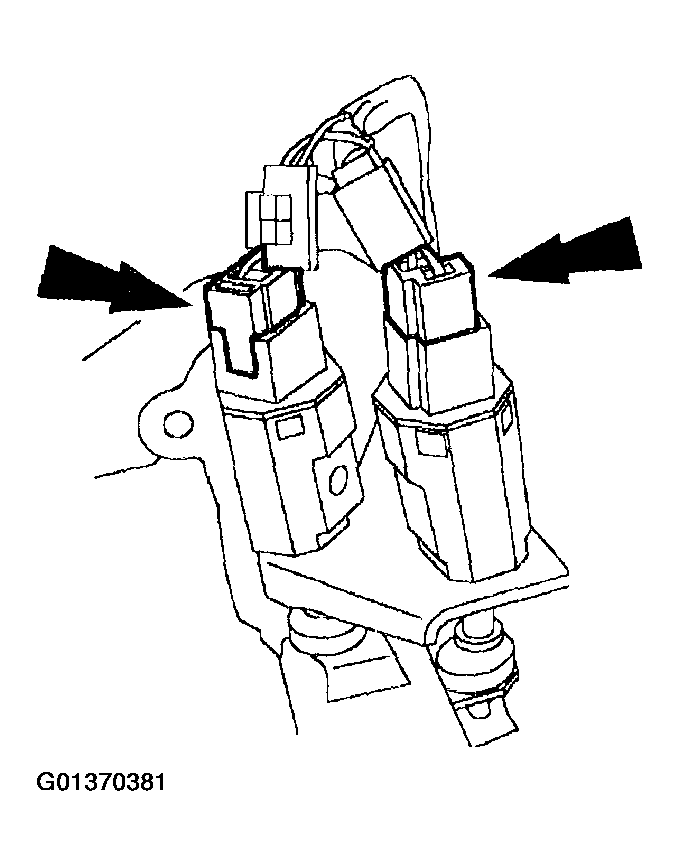

Fig 5: Disconnecting Brake Pedal Position (BPP) Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the steering column tube (3514); refer to COLUMN .
Remove the two brake pedal bracket nuts.

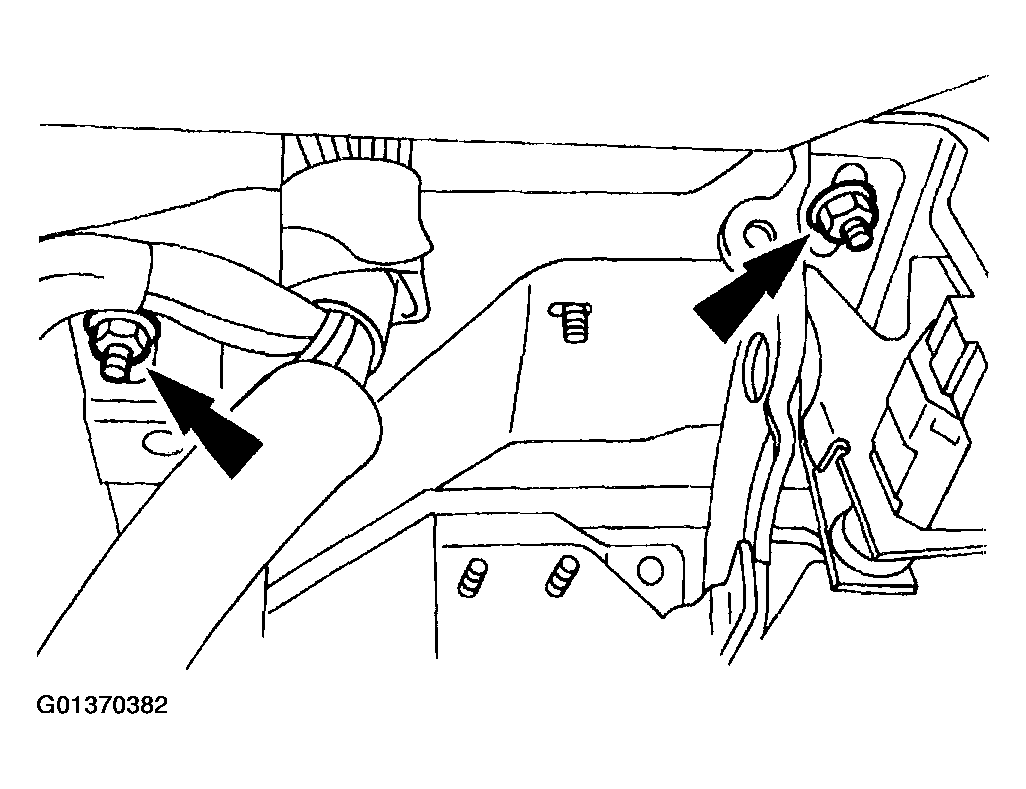

Fig 6: Removing Brake Pedal Bracket Nuts
Courtesy of FORD MOTOR CO.
Remove the self-locking pin.

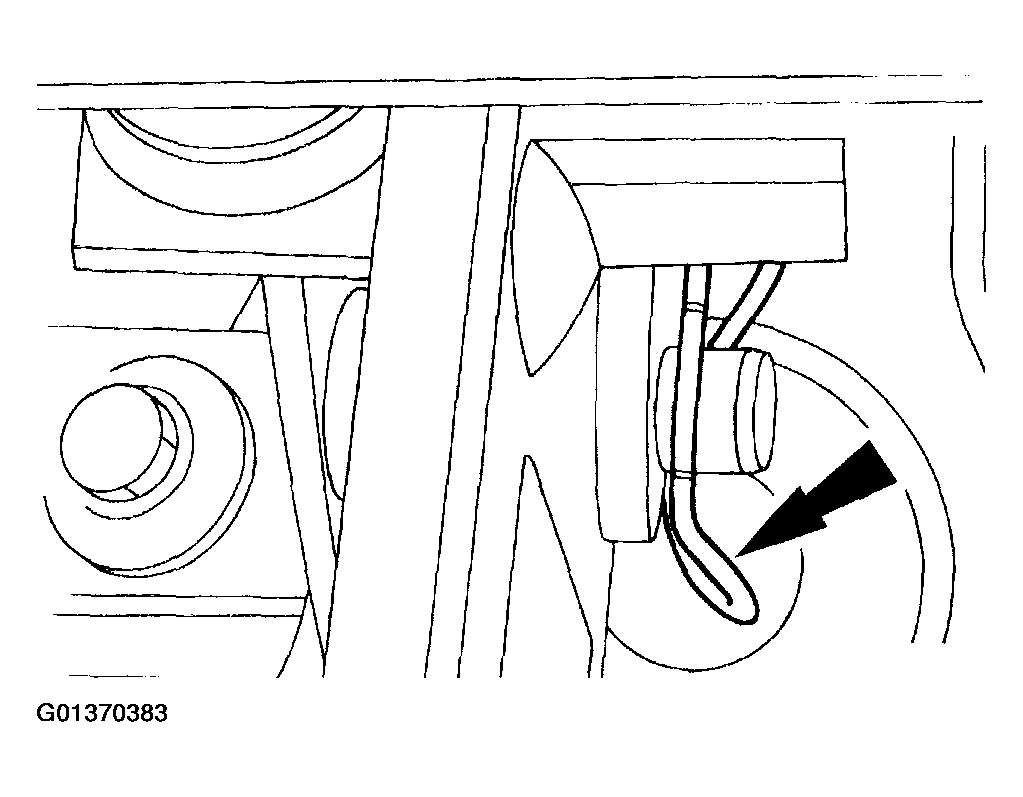

Fig 7: Removing Self-Locking Pin
Courtesy of FORD MOTOR CO.
Remove the clevis pin.

Fig 8: Removing Clevis Pin
Courtesy of FORD MOTOR CO.
Remove the four power brake booster nuts.

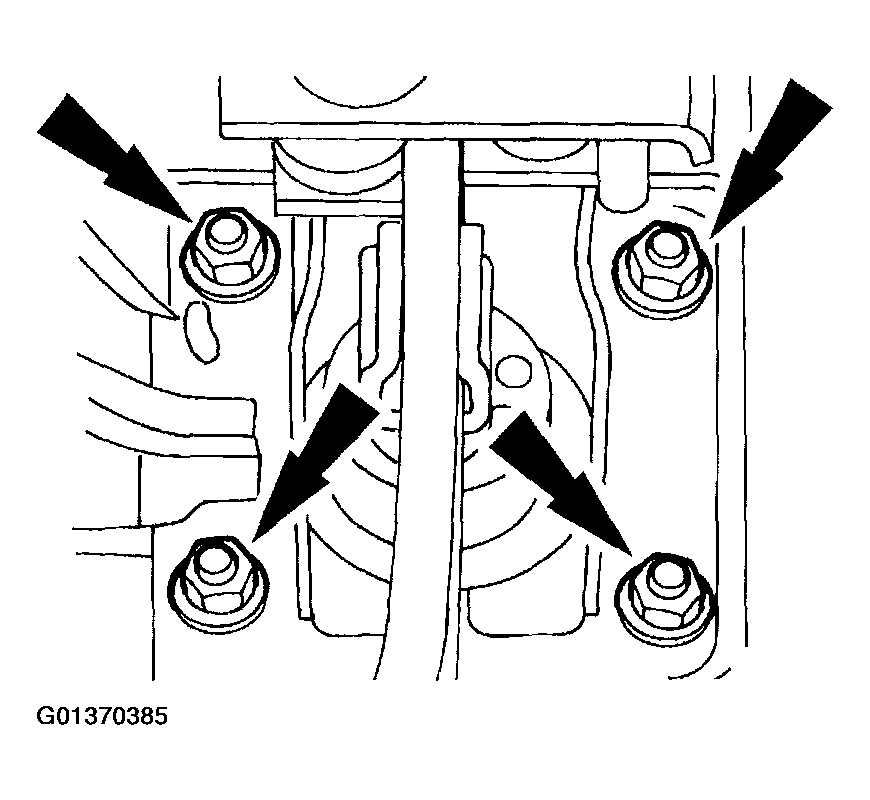

Fig 9: Removing Four Power Brake Booster Nuts
Courtesy of FORD MOTOR CO.
If equipped with M/T, disconnect clutch pedal components.
1. Disconnect clutch pedal position (CPP) switch electrical connector.
2. Remove clutch pedal push rod.

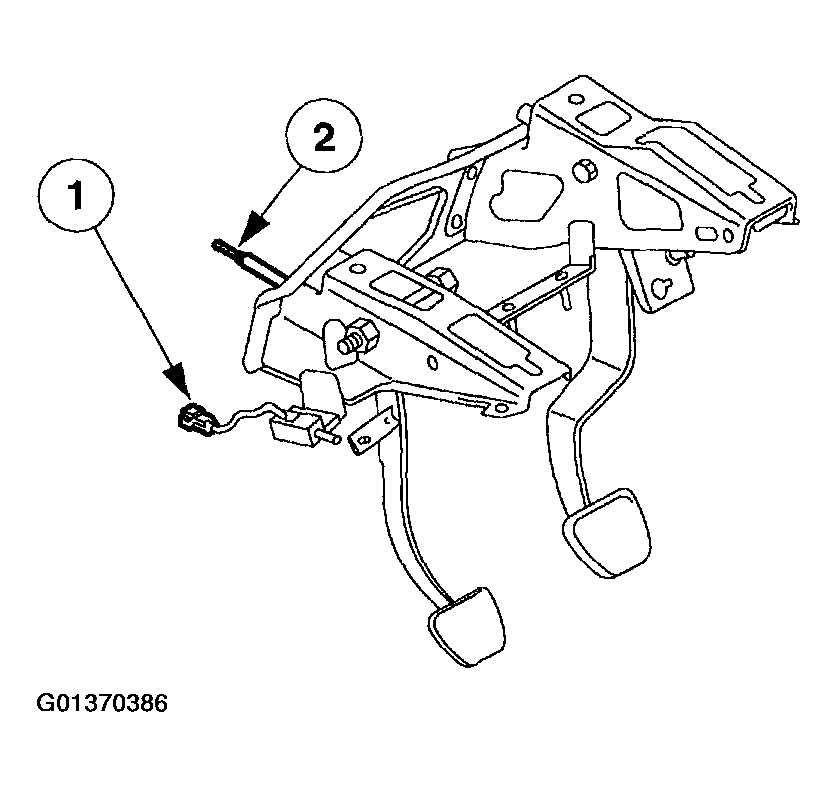

Fig 10: Removing Clutch Pedal Push Rod
Courtesy of FORD MOTOR CO.
Remove the two brake pedal bracket nuts from the LH side.

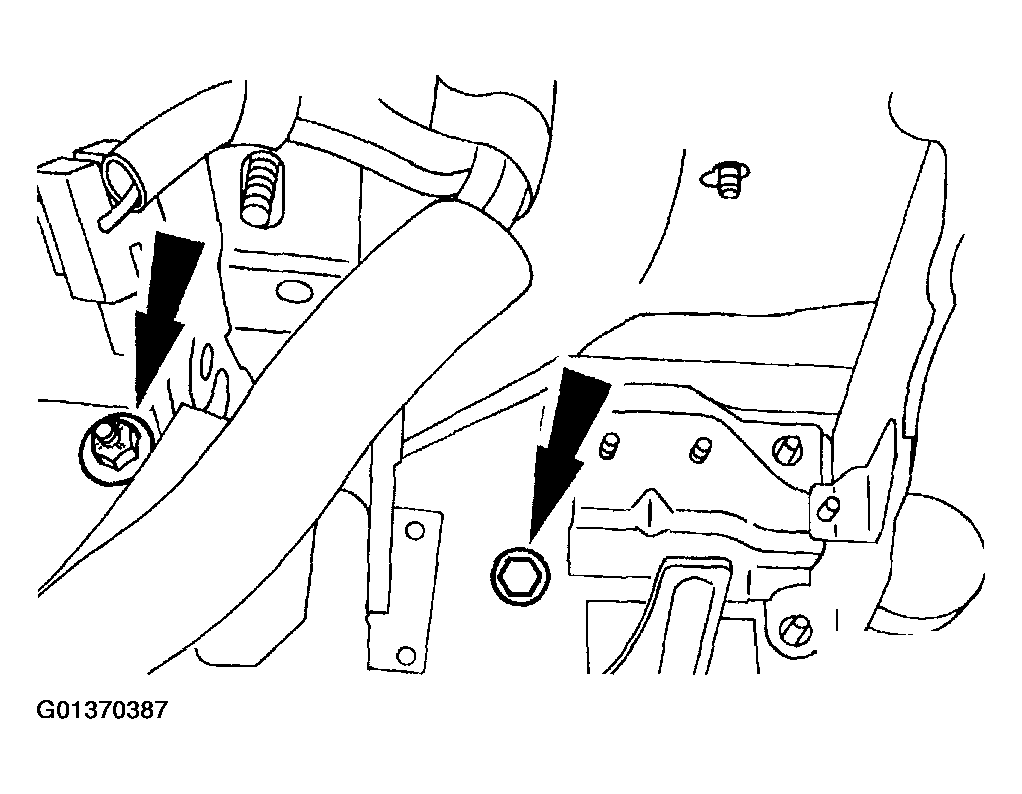

Fig 11: Removing Brake Pedal Bracket Nuts From LH Side
Courtesy of FORD MOTOR CO.
Remove the brake pedal and bracket.
