Pedal And Bracket: Installation

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn its strategy.

To install, reverse the removal procedure.

Fig 1: Installing Brake Pedal Bracket Nuts
Courtesy of FORD MOTOR CO.

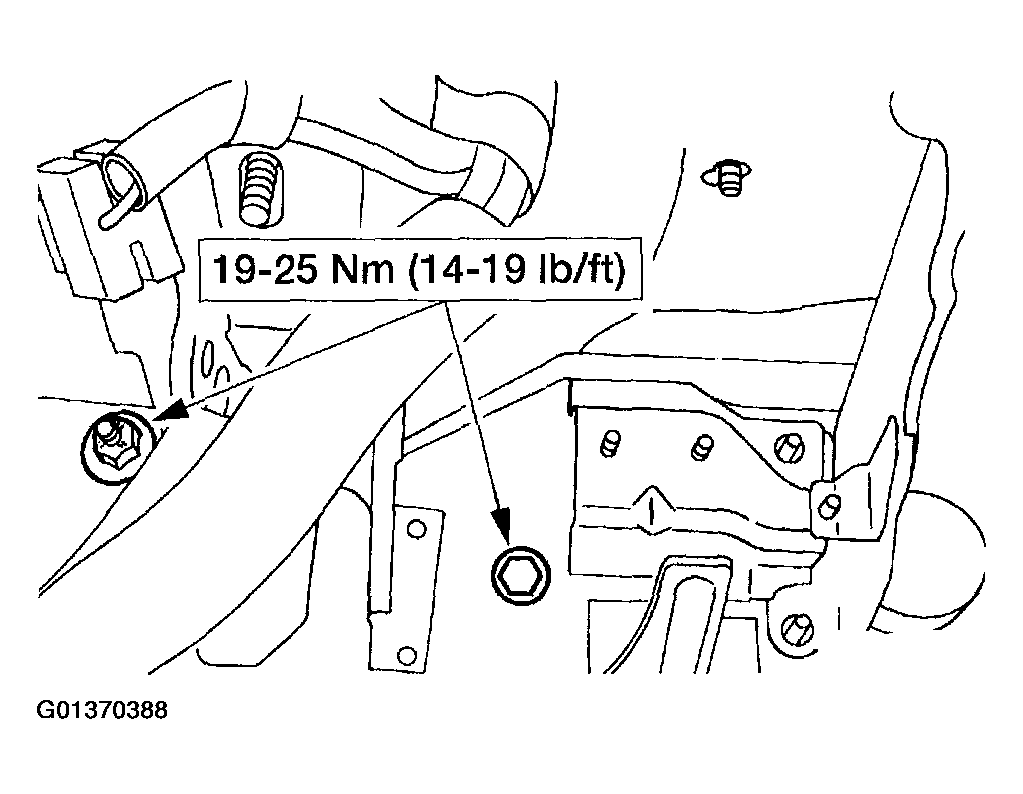

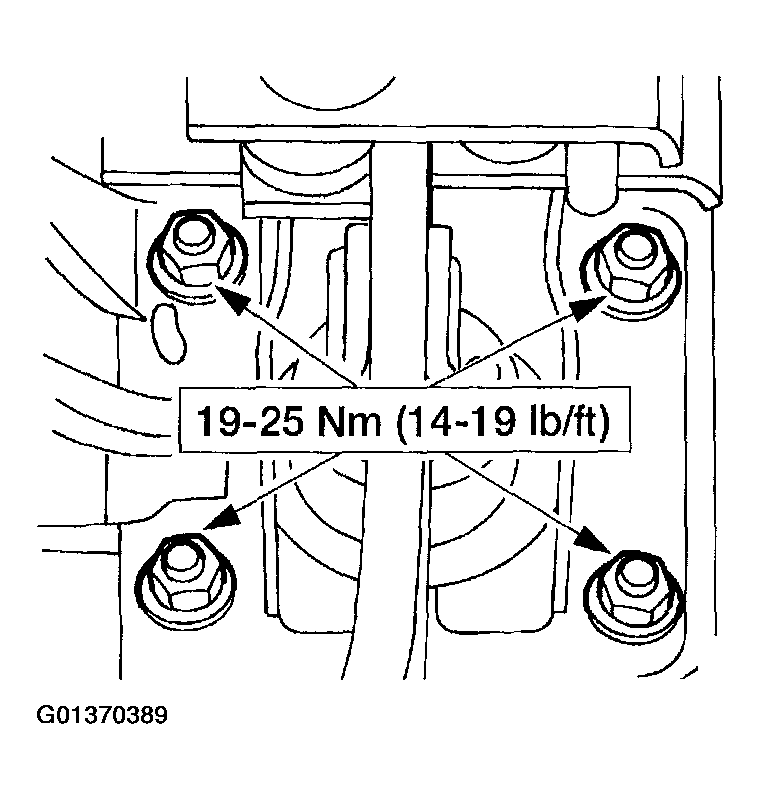

Fig 2: Installing Four Power Brake Booster Nuts
Courtesy of FORD MOTOR CO.

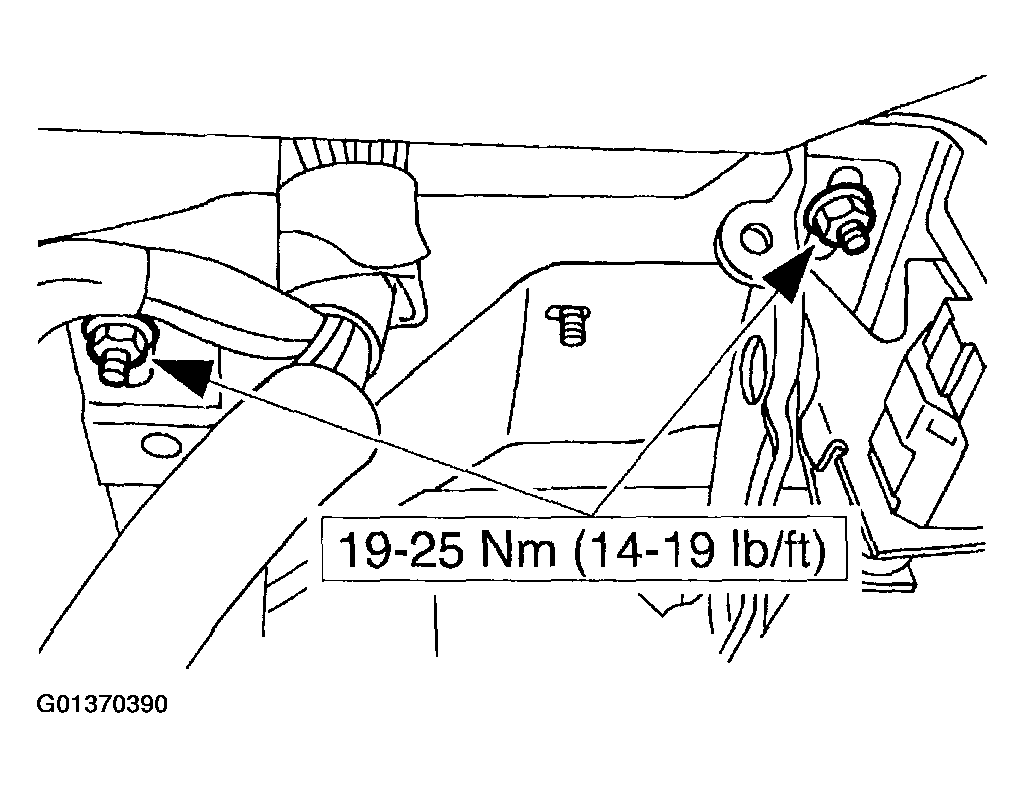

Fig 3: Installing Brake Pedal Bracket Nuts
Courtesy of FORD MOTOR CO.

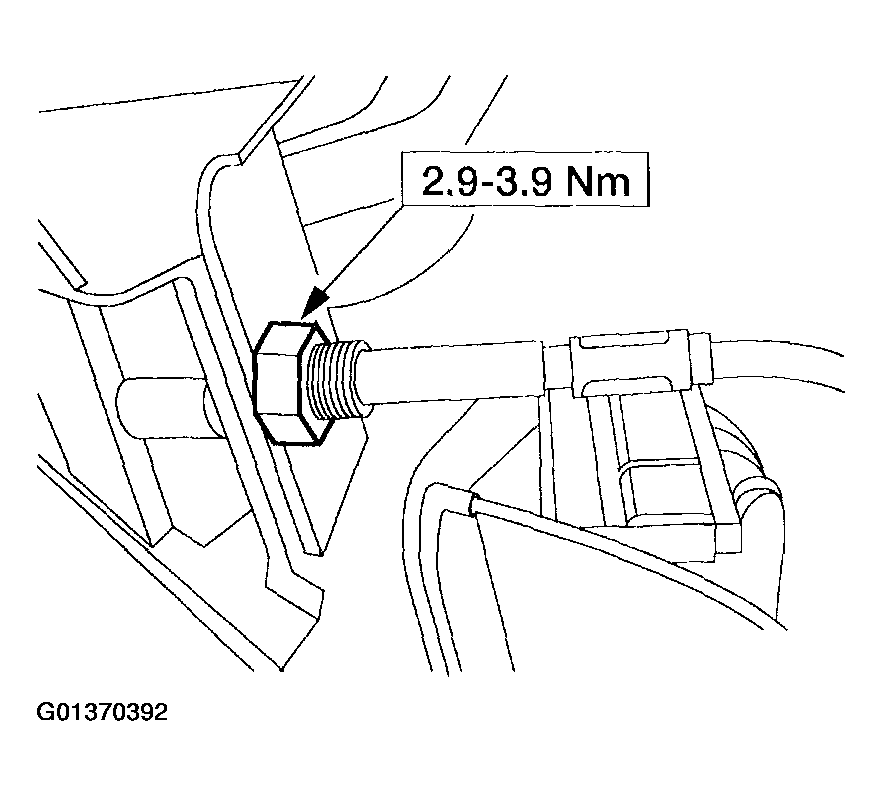

Fig 4: Installing Clutch Master Cylinder Cover Plate Nut
Courtesy of FORD MOTOR CO.

Fig 5: Installing Hood Latch Control Handle
Courtesy of FORD MOTOR CO.
