Exhaust Brake Control Valve - With Abs: Removal

    WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately.
    CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.

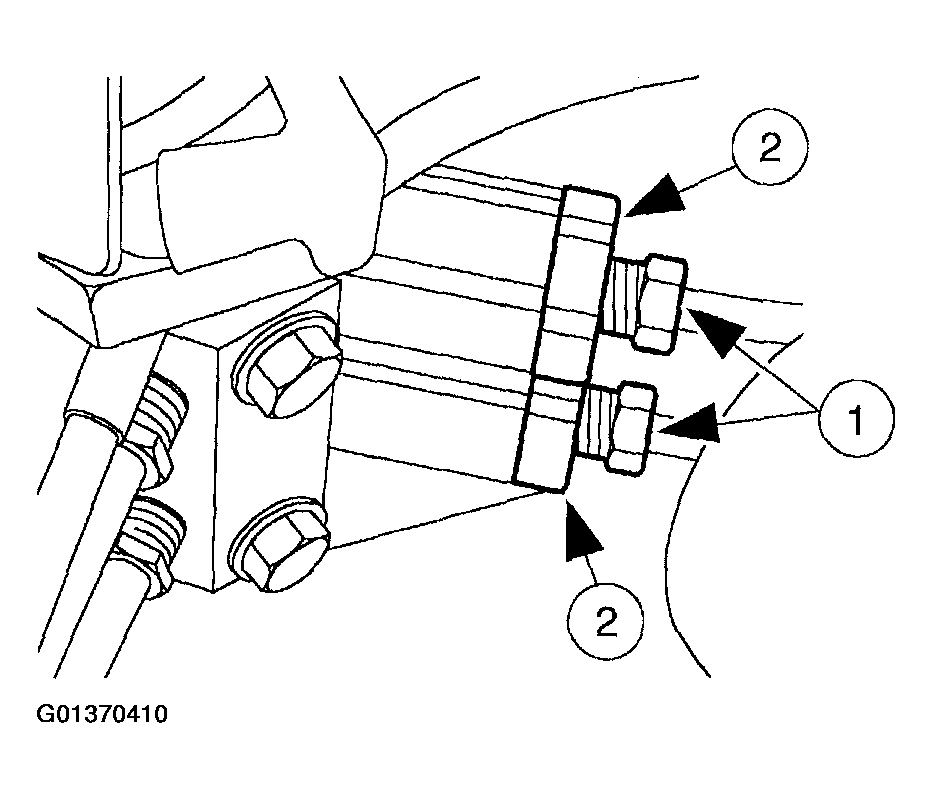

    Fig 1: Removing Brake Pressure Control Valves
    G01370410Courtesy of FORD MOTOR CO.
  1. Remove the brake pressure control valves (2B091).
    1. Disconnect the two brake line fittings and plug.
    2. Remove the brake pressure control valves.
