Hydraulic Brake System Components - Non-ABS

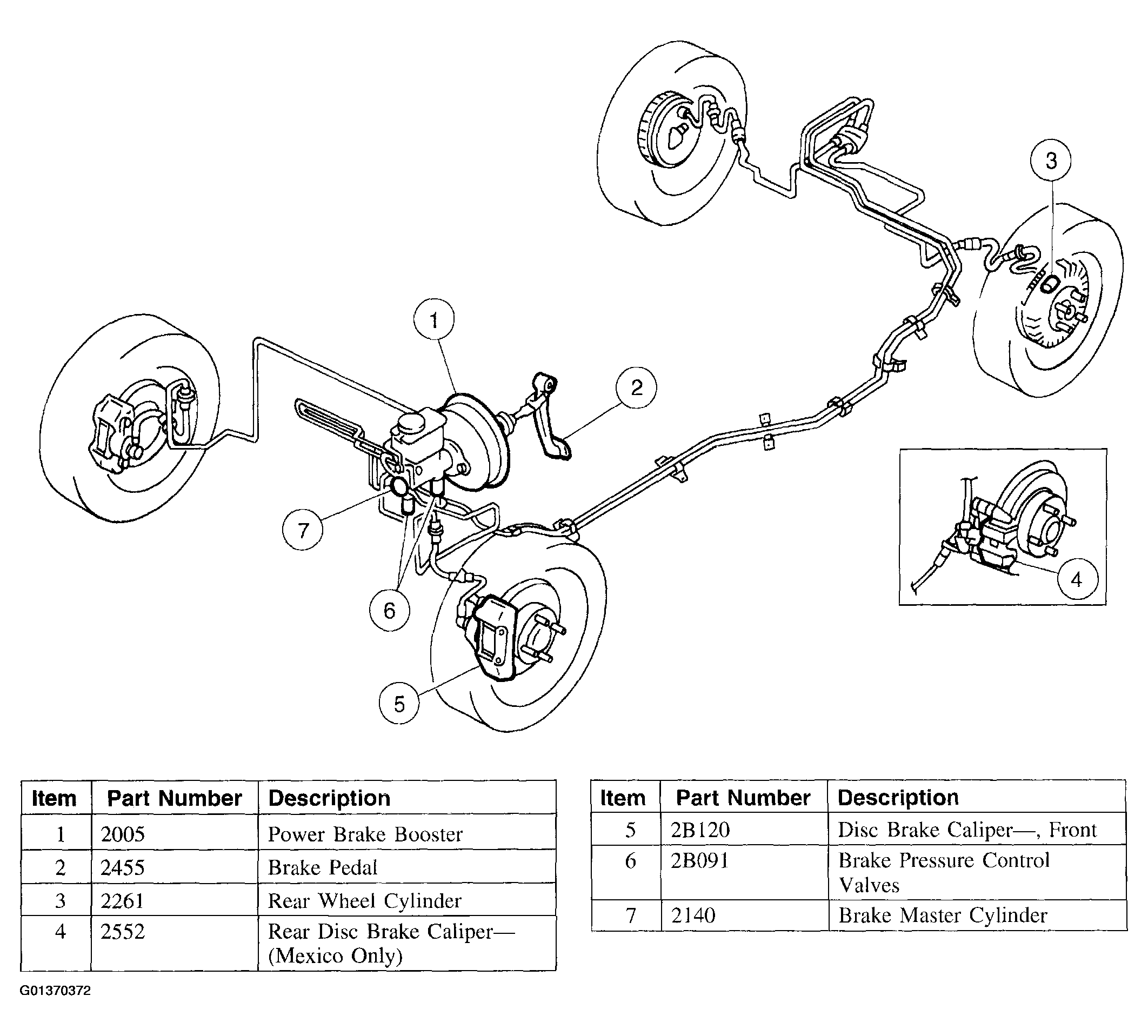

Fig 1: Identifying Hydraulic Brake System Components - Non-ABS

Courtesy of FORD MOTOR CO.

The hydraulic brake system is diagonally split with the LH front and RH rear brakes on one circuit and the RH front and LH rear brakes on the other circuit.

Three different brake systems are available:

• Disc/Drum with ABS.
• Disc/Disc without ABS (Mexico Only).
• Disc/Drum without ABS.
