Pinpoint Test D: A Single Illumination Source Is Inoperative - Transmission Control Selector Dial Bezel Illumination Inoperative

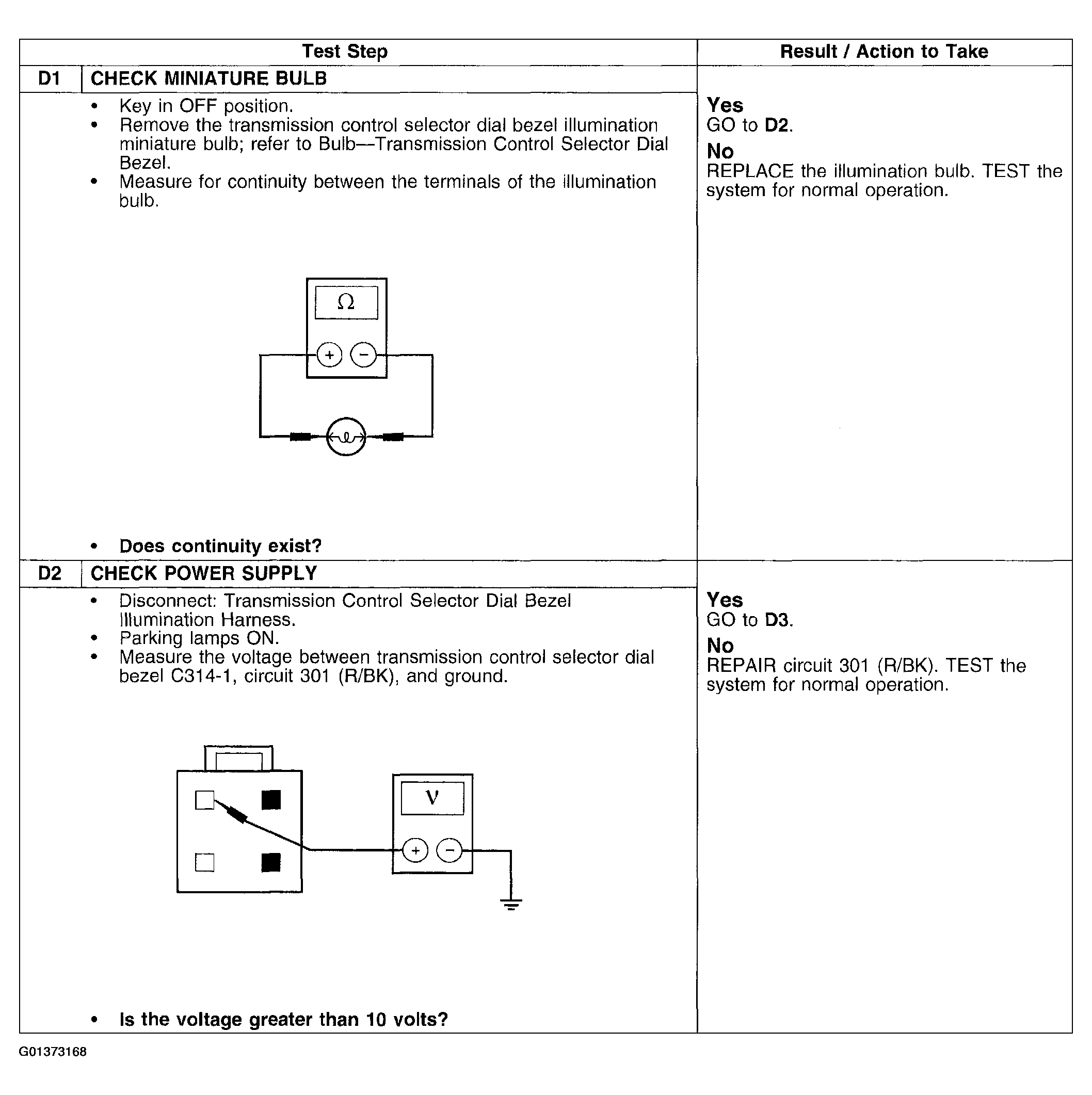

Fig 1: Pinpoint Test D: Single Illumination Source Is Inoperative - Transmission Control Selector Dial Bezel Illumination Inoperative (D1-D2)
G01373168Courtesy of FORD MOTOR CO.

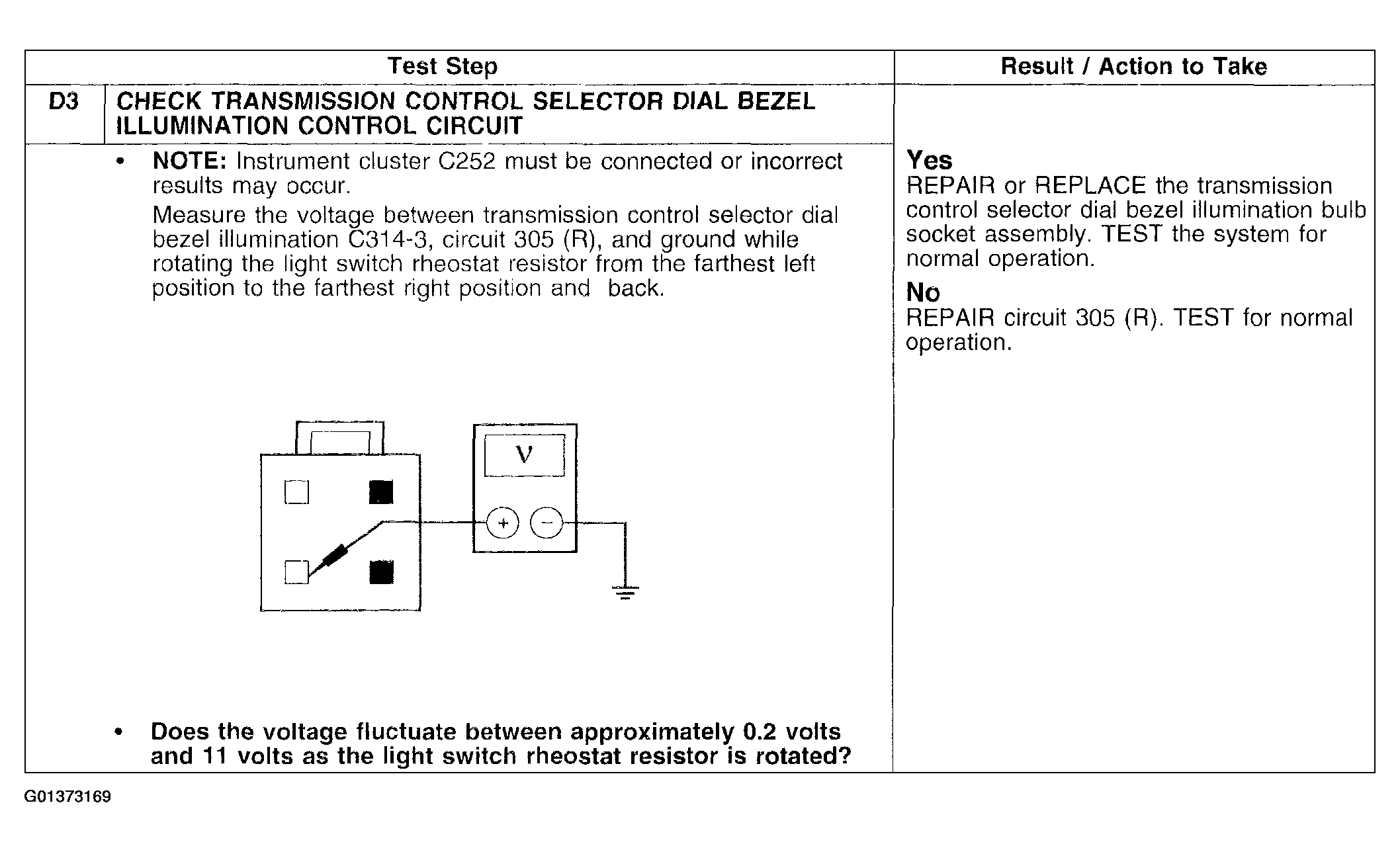

Fig 2: Pinpoint Test D: Single Illumination Source Is Inoperative - Transmission Control Selector Dial Bezel Illumination Inoperative (Steps D3)
G01373169Courtesy of FORD MOTOR CO.
