Inspection And Verification

  1. Verify the customer concern.
  2. Visually inspect for the following obvious signs of mechanical and electrical damage.

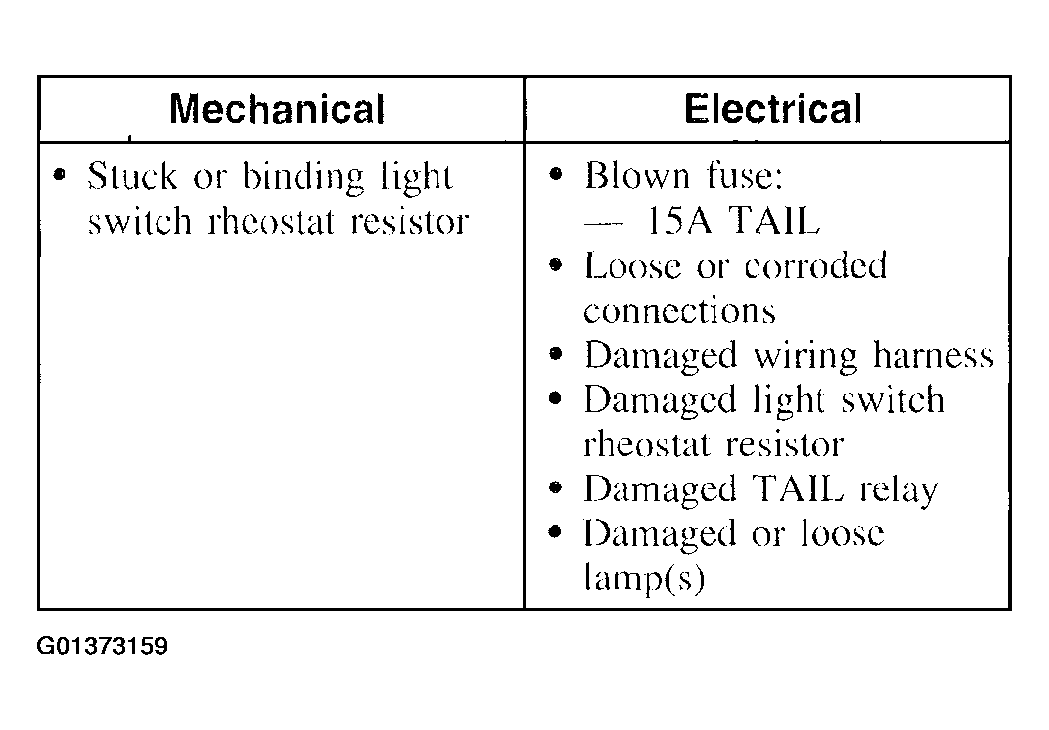

    Fig 1: Visual Inspection Chart
    G01373159Courtesy of FORD MOTOR CO.
  3. If the fault is not visually evident, verify the symptom and proceed to Symptom Chart.
